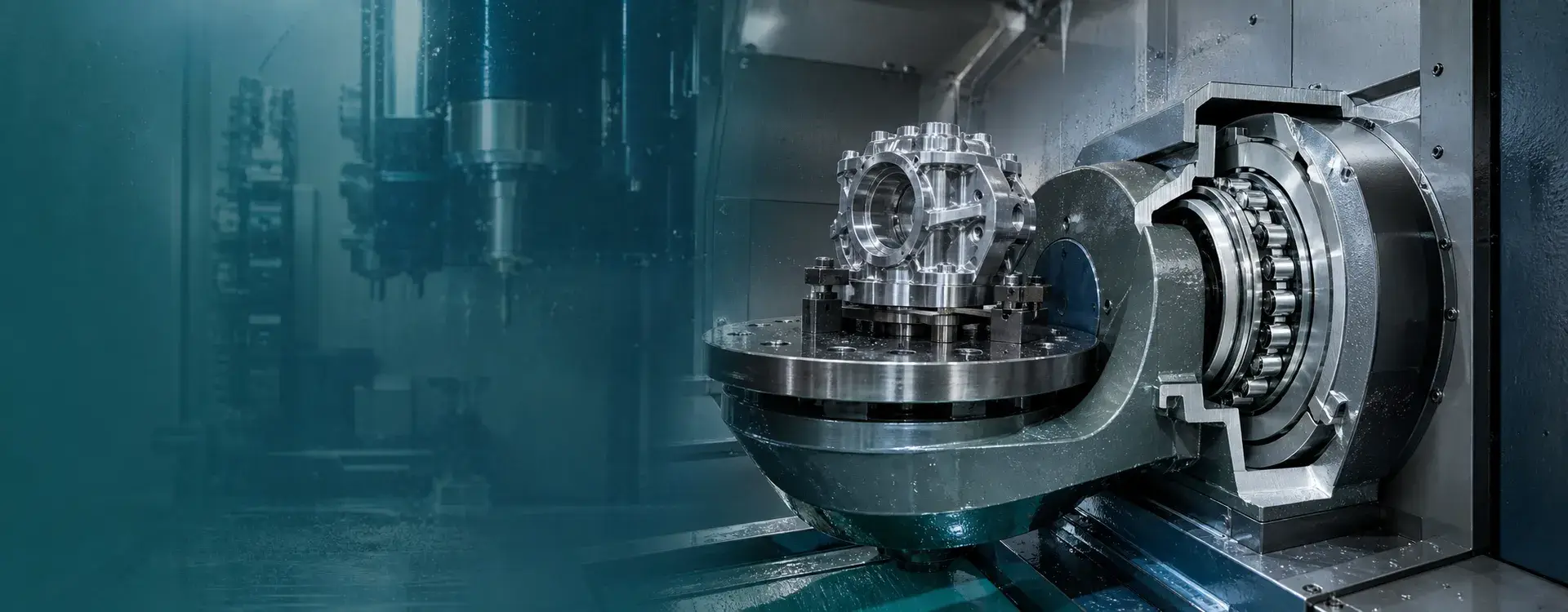

Crossed Roller Bearings for Machine Tools

Application

Application Challenges

Machining Rigidity

Cutting forces and overhung workpieces create radial, axial and moment loads.

Indexing Accuracy

Axis positioning requires low runout and repeatable angular location.

Compact Axis Design

Multi-axis machines require high load capacity in limited space.

Shock & Reversing Loads

Tool entry, braking and rapid axis reversals create transient loads.

Coolant & Contamination

Machine tool environments may expose bearings to coolant and chips.

Products

Recommended Crossed Roller Bearing Series

HRAU Series

Compact solution for tool changers and small positioning modules.

HRU Series

Integrated mounting-hole bearing for machine tool rotary axes.

HCRBH Series

High-rigidity solution for heavy rotary tables and trunnions.

HRE Series

Inner-ring rotation design for indexing heads.

HRB Series

General high-rigidity machine tool support.

HSX Series

Compact separable structure for restricted installation space.

HXSU Series

Direct-mount integrated bearing for high-precision rotary axes.

Selection

Selection Information

01

Information Customers Can Provide

Machine tool type and rotary axis position
Workpiece, fixture or tool load
Radial, axial and tilting moment loads
Indexing or continuous rotation speed
Required positioning accuracy and runout
Available installation space and mounting interface
Coolant, sealing and lubrication conditions
Drawing, bearing number and quantity

02

CHG Assessable Content

Suitable crossed roller bearing series
Bearing dimensions and integrated ring structure
Radial, axial and tilting moment load capacity
Precision class and runout direction
Preload, rotational torque and rigidity
Inner-ring or outer-ring rotation
Mounting-hole and adjacent structure requirements
Lubrication, sealing, quotation and delivery

ADVANTAGES

Why Choose CHG

Complete Series Coverage

CHG provides RAU, RU, CRBH, RE, RB, SX and XSU crossed roller bearing solutions for different installation structures.

Application-based Selection

Bearing series can be reviewed according to radial, axial and tilting moment loads, rigidity, runout, speed and mounting space.

Custom Manufacturing

Custom support by bearing number, dimensions, 2D/3D drawing, mounting-hole arrangement, preload and special requirements.

Quality & Inspection Support

Material certificates, dimensional inspection, precision inspection, rotational torque records and product photos can be provided according to order requirements.

Precision Rotary Tables

Automation Rotary Platforms

High-rigidity Rotary Mechanisms

Robot Joints

CONTACT US

Talk to an expert

Share your requirements and we’ll help you find the right solution for your business.

Get a quick quote

We typically confirm within 24 hours.

FAQ

Crossed Roller Bearings for Machine Tools FAQ

Please provide the application, bearing number or dimensions, radial load, axial load, tilting moment, speed, runout or accuracy requirement, mounting structure, quantity and drawing if available.

CHG provides RAU, RU, CRBH, RE, RB, SX and XSU series crossed roller bearings.

Yes. Custom solutions can be reviewed according to 2D/3D drawings, bearing numbers, mounting-hole patterns, dimensions, preload and application conditions.

Integrated mounting-hole types simplify assembly and improve rigidity, while separable structures may suit compact or existing housings. Final selection depends on ring rotation, mounting and load requirements.

Dimensional inspection, runout inspection, rotational torque or preload records, material certificates and product photos can be provided according to order requirements.
