Thin Section Bearings for Medical Equipment

Application

Typical Medical Equipment Applications

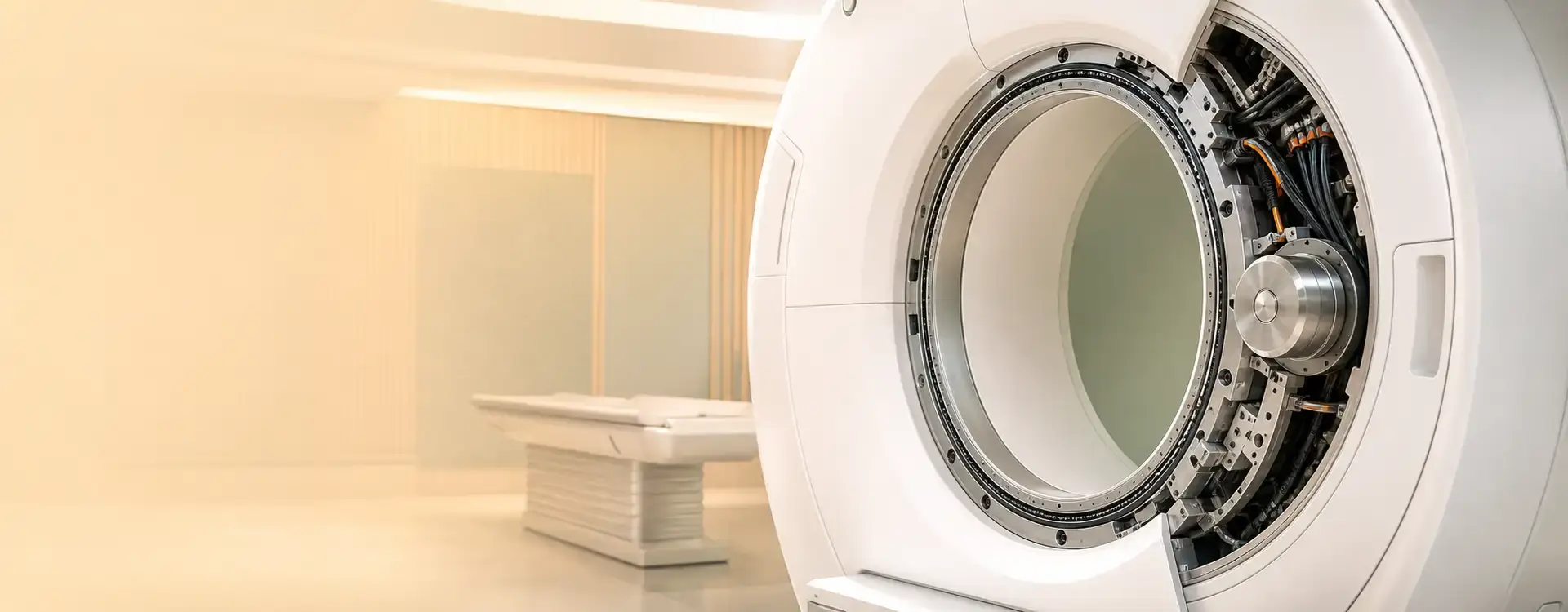

Medical Imaging Rotary Systems

Large-bore compact support for imaging gantries and rotary scanning mechanisms.

Surgical Equipment

Precision support for surgical robots, positioning arms and rotary instruments.

Laboratory Automation

Low-friction support for analyzers, sample handling and compact rotary modules.

Diagnostic Devices

Smooth and accurate rotation for diagnostic instruments and scanning platforms.

Patient Positioning Systems

Stable rotary motion for adjustable tables, arms and positioning mechanisms.

Requirements

Application Design Requirements

Smooth & Low-Noise Motion

Medical equipment often requires quiet, vibration-controlled and smooth rotation.

Compact Large-Bore Design

Rotary systems may need a large central opening while maintaining a small external envelope.

High Positioning Accuracy

Imaging and surgical equipment require repeatable movement and controlled runout.

Clean Operating Environment

Lubricant, sealing and cleanliness must match the equipment environment and maintenance plan.

Reliable Duty Cycle

Intermittent scanning or repeated positioning requires stable performance over many cycles.

Types

Recommended Bearing Structures

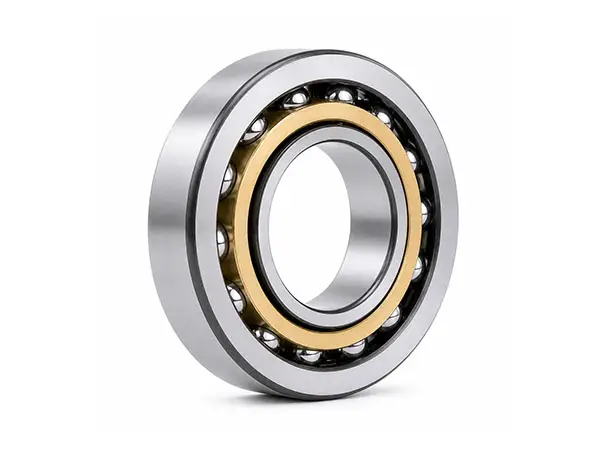

Deep Groove Thin Section Ball Bearings

Support radial loads and moderate axial loads with low friction and compact cross-section.

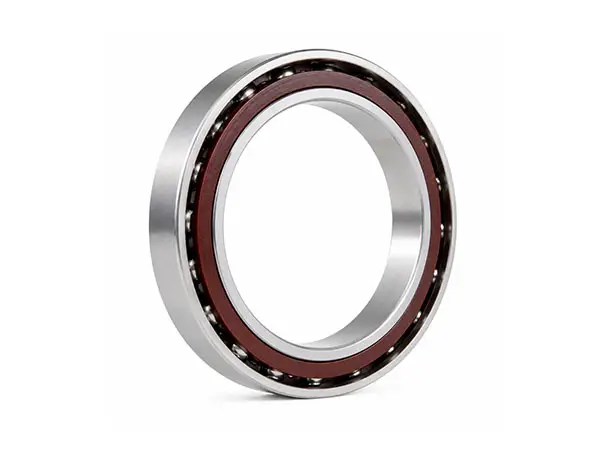

Angular Contact Thin Section Ball Bearings

Suitable for combined loads, higher rotational accuracy and axial positioning requirements.

Four-Point Contact Thin Section Ball Bearings

Compact single-bearing solution for radial, axial and tilting moment loads.

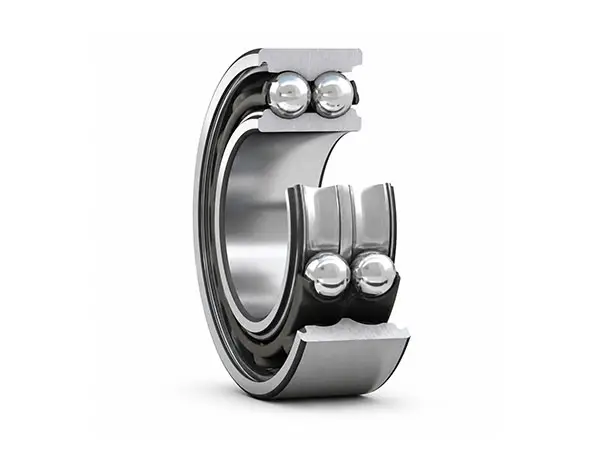

Super Duplex Angular Contact Ball Bearings

High rigidity and precision for paired or integrated angular contact arrangements.

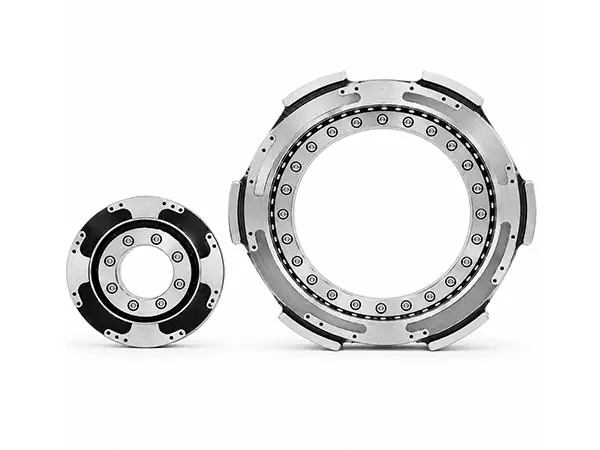

Flanged Thin Section Bearings

Simplified mounting and positioning for compact housings and lightweight rotary modules.

Selection

Selection Information

Information Customers Can Provide

Medical equipment type and rotary function
Existing bearing number or dimensions
Load and moment requirements
Speed, acceleration and duty cycle
Noise and vibration requirements
Precision and runout targets
Drawing and installation space

CHG Assessable Content

Suitable bearing type and arrangement
Preload or clearance direction
Precision and runout recommendation
Lubrication and sealing options
Material and cage direction
Mounting fit and housing considerations
Custom structure feasibility

ADVANTAGES

Why Choose CHG

Smooth Precision Rotation

Solutions can be reviewed for low friction, low noise and stable positioning.

Compact Large-Bore Design

Thin cross-sections support large internal openings in space-limited equipment.

Application-based Customization

Dimensions, preload, flange, seals and lubrication can be customized according to equipment requirements.

Technical Documentation Support

Product drawings, inspection data and order-specific documentation can be provided.

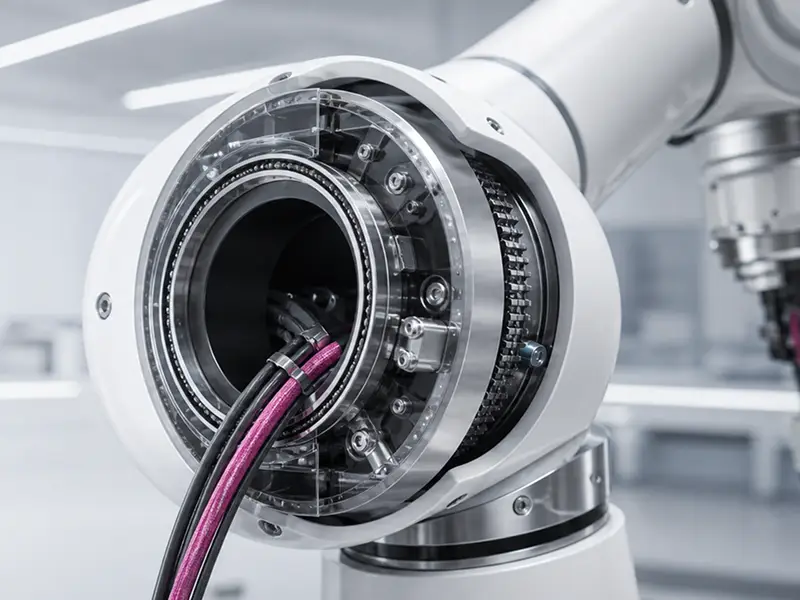

Robotics

Thin section solutions for surgical robots and articulated positioning systems.

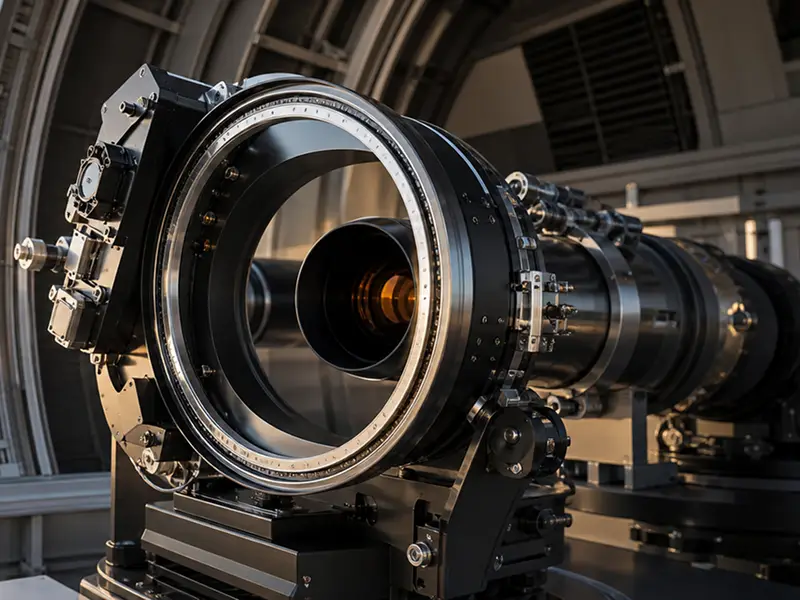

Optical Equipment

Precision support for optical and imaging mechanisms.

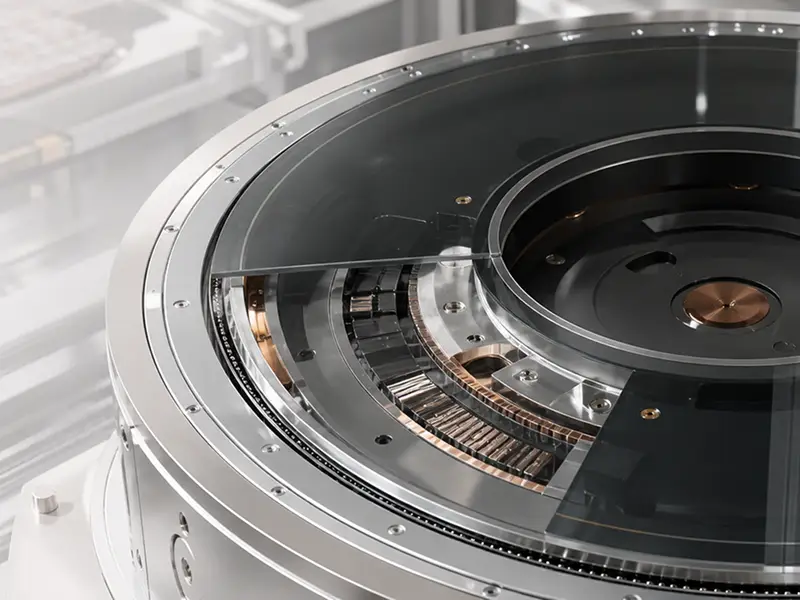

Precision Rotary Mechanisms

Solutions for compact rotary tables and positioning systems.

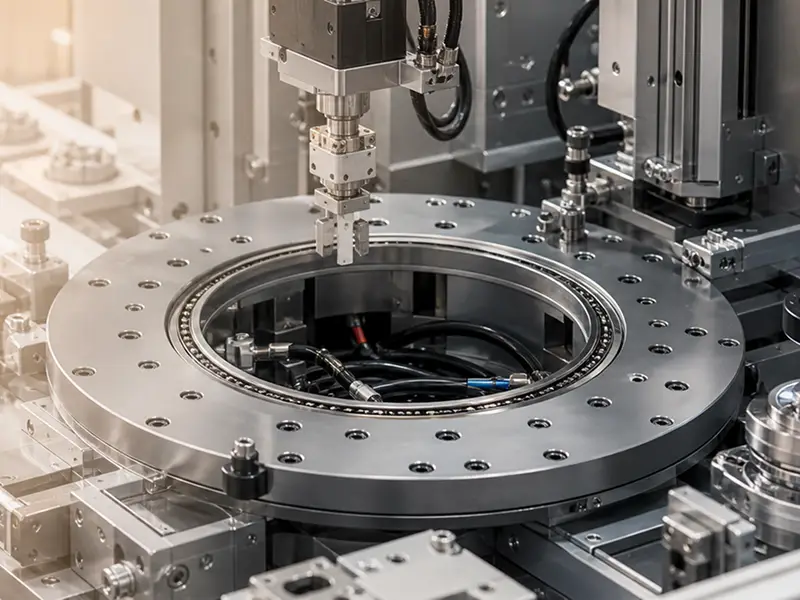

Automation Equipment

Thin section bearings for laboratory and diagnostic automation.

Talk to an expert

Share your requirements and we’ll help you find the right solution for your business.

Get a quick quote

We typically confirm within 24 hours.
