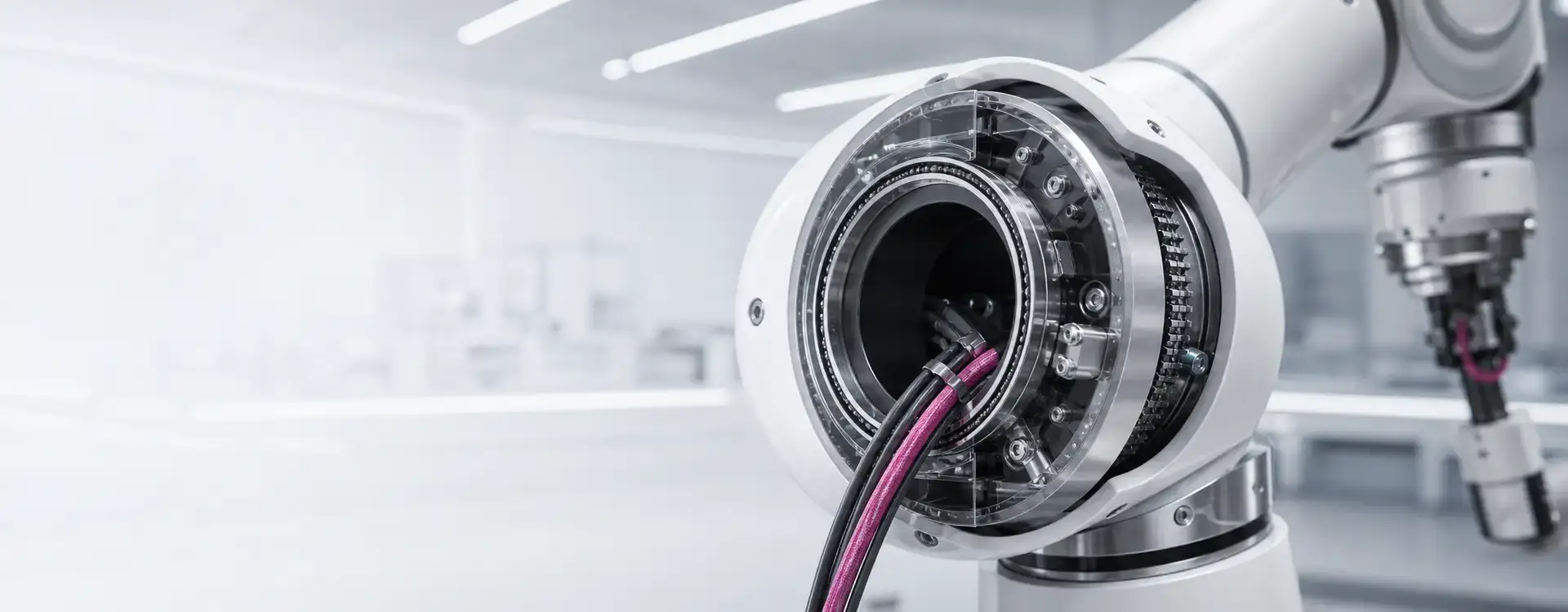

Thin Section Bearings for Robotics

Application

Typical Robotics Applications

Robot Base Rotation

Large-diameter compact support for robot bases requiring stable rotation and combined load capacity.

Robot Joints & Arms

Low-weight support for shoulder, elbow and wrist joints with limited radial space.

End Effectors

Compact bearings for grippers, tool changers and rotary end-of-arm modules.

Collaborative Robots

Low friction, compact size and smooth motion for lightweight collaborative robot joints.

Mobile Robot Rotary Modules

Thin section solutions for sensor platforms, steering modules and compact rotary mechanisms.

Requirements

Application Design Requirements

Limited Joint Space

Robot joints often require a large bore for cables and drives while keeping the external diameter and cross-section small.

Combined Loads & Tilting Moment

Robot joints may carry radial, axial and overturning loads at the same time.

Positioning Accuracy

Repeatable motion requires controlled runout, smooth rotation and stable axial/radial positioning.

Low Weight & Low Friction

Reducing rotating mass improves acceleration, energy efficiency and motion response.

Cable & Hollow-Shaft Layout

Large internal diameter may be needed for cables, reducers and service lines.

Types

Recommended Bearing Structures

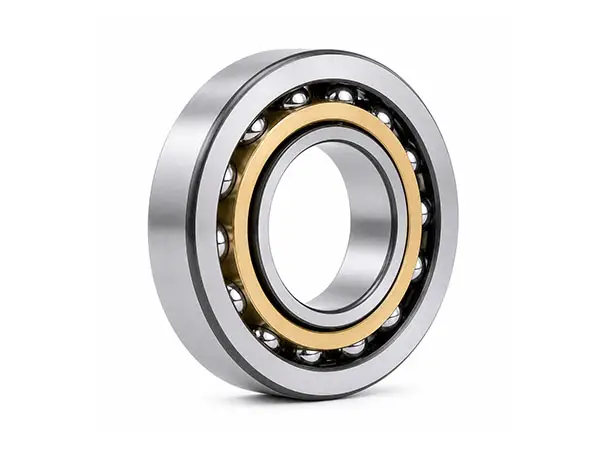

Deep Groove Thin Section Ball Bearings

Support radial loads and moderate axial loads with low friction and compact cross-section.

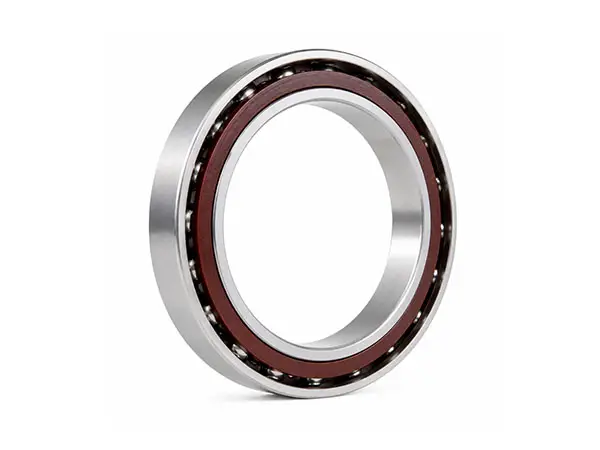

Angular Contact Thin Section Ball Bearings

Suitable for combined loads, higher rotational accuracy and axial positioning requirements.

Four-Point Contact Thin Section Ball Bearings

Compact single-bearing solution for radial, axial and tilting moment loads.

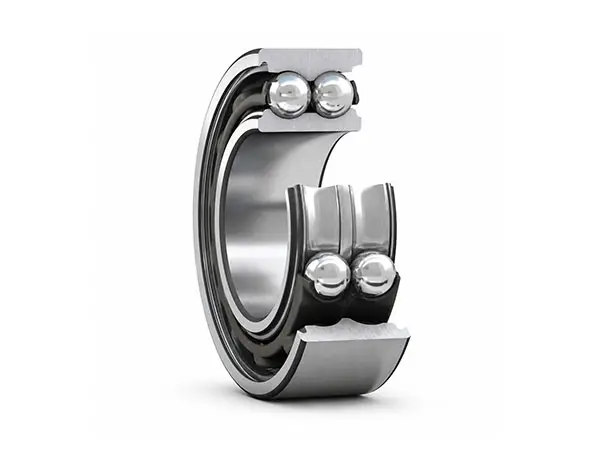

Super Duplex Angular Contact Ball Bearings

High rigidity and precision for paired or integrated angular contact arrangements.

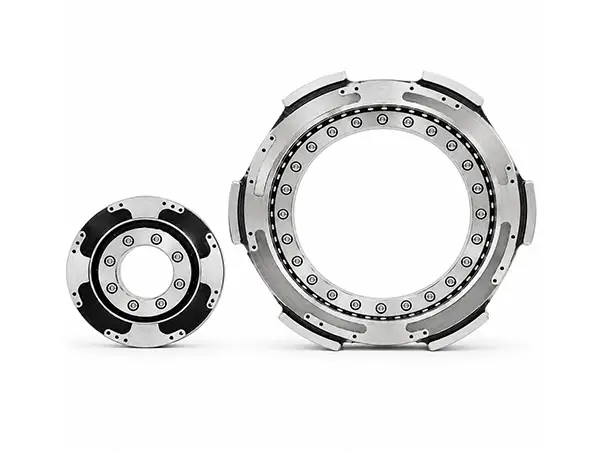

Flanged Thin Section Bearings

Simplified mounting and positioning for compact housings and lightweight rotary modules.

Selection

Selection Information

01

Information Customers Can Provide

Robot type and joint position
Existing bearing number or dimensions
Joint load and tilting moment
Speed and motion cycle
Required positioning accuracy
Available installation space
Drawing or 3D model

02

CHG Assessable Content

Suitable thin section bearing structure
Load capacity and stiffness direction
Clearance or preload recommendation
Precision and runout direction
Material, cage and lubrication options
Mounting and fit considerations
Custom dimension feasibility

ADVANTAGES

Why Choose CHG

Compact Joint Design

Large bore and small cross-section help reduce joint size while allowing cables and drives to pass through.

Precision Motion Support

Solutions for low runout, smooth motion and repeatable robotic positioning.

Application-based Customization

Custom dimensions, preload, flange, seals and lubrication can be reviewed according to the robot joint design.

Engineering Support

CHG can review drawings, load data and replacement requirements before quotation.

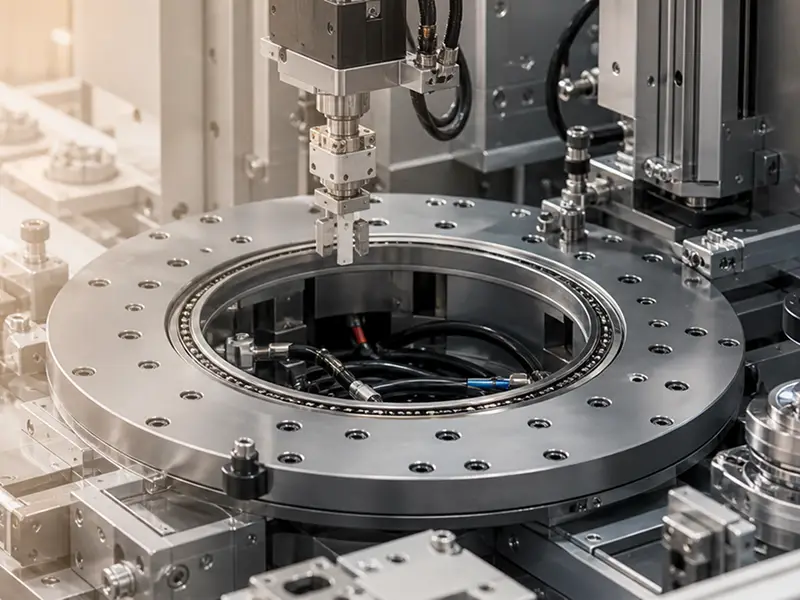

Automation Equipment

Thin section solutions for indexing systems, assembly equipment and rotary automation modules.

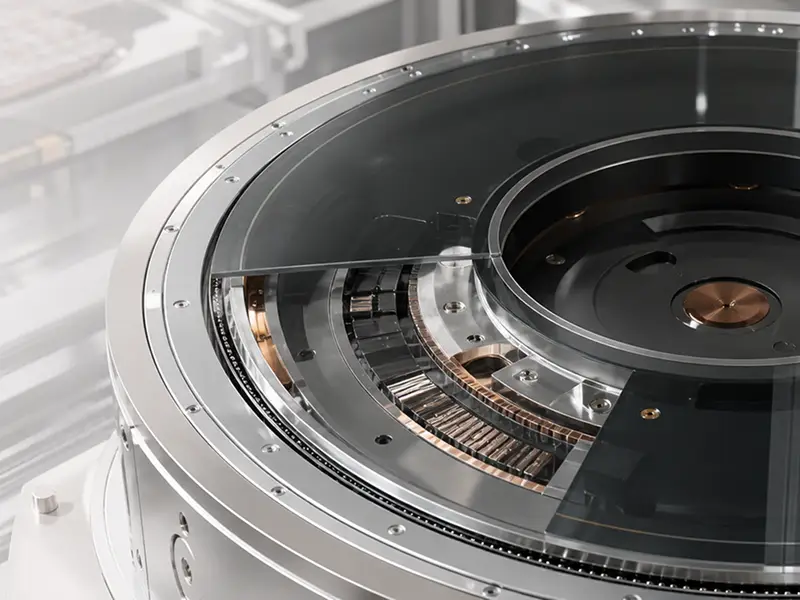

Precision Rotary Mechanisms

Solutions for compact rotary tables, gimbals and precision positioning systems.

Lightweight Equipment

Space-saving and weight-reduction solutions for portable and mobile equipment.

Medical Equipment

Precision rotary solutions for medical and laboratory equipment.

CONTACT US

Talk to an expert

Share your requirements and we’ll help you find the right solution for your business.

Get a quick quote

We typically confirm within 24 hours.

FAQ

Thin Section Bearings for Robotics FAQs

Please provide the robot type, joint position, bearing dimensions, radial and axial loads, tilting moment, speed, precision requirement and drawing if available.

Four-point contact and angular contact thin section bearings are commonly considered where combined loads, rigidity and compact installation are important.

Yes. Preload, clearance, dimensions, flange, sealing and lubrication can be reviewed according to drawings and operating requirements.

A large bore is one of the main advantages of thin section bearings. The required internal diameter and adjacent layout should be provided for review.

Yes. Send the original number, dimensions, drawing or sample information for evaluation.
