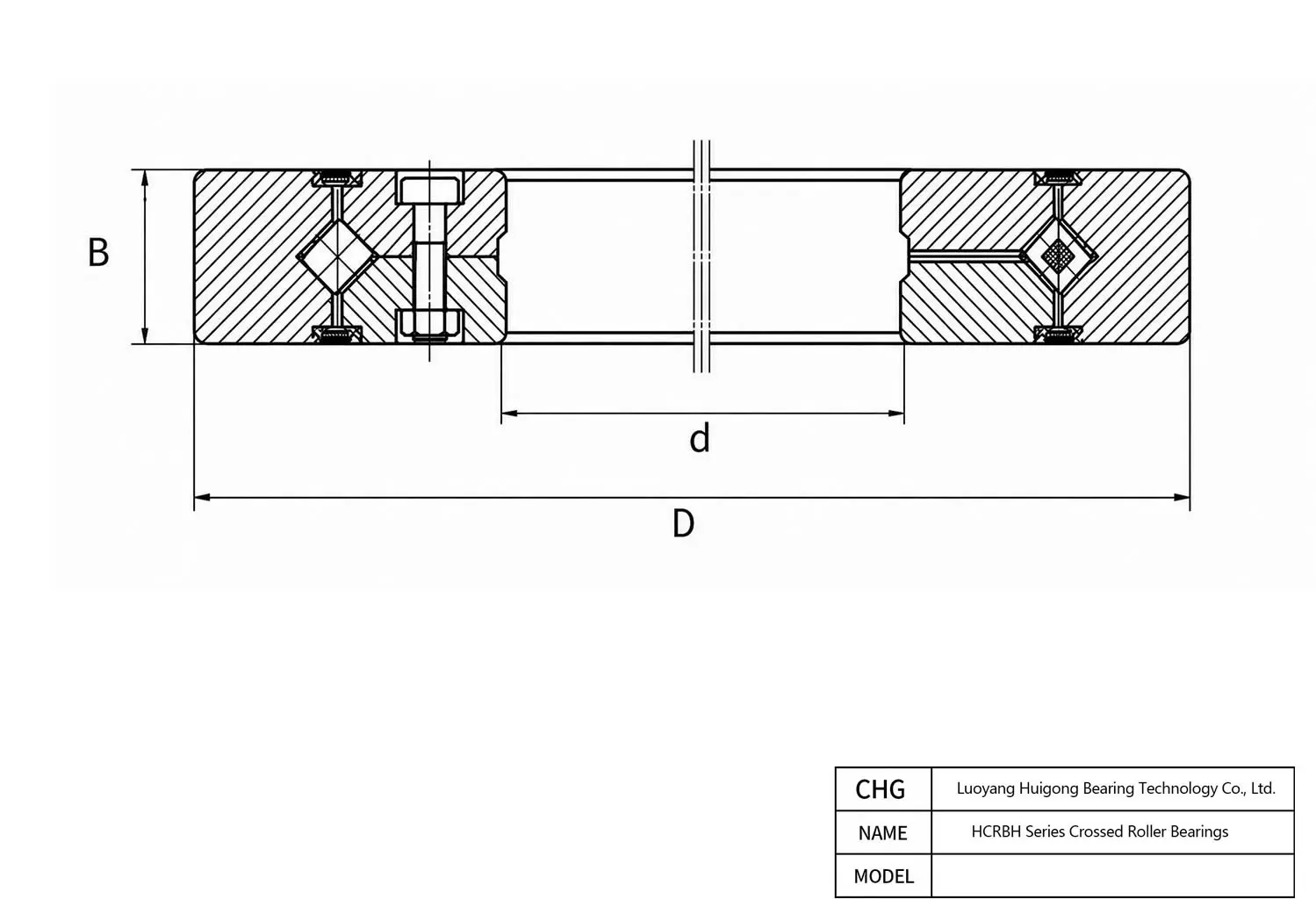

Manufactured by CHG Bearing, the HCRBH11020A is a precision HCRBH Series Crossed Roller Bearings. Key dimensional parameters include a 110 mm bore diameter, a 160 mm outer diameter, and a 20 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

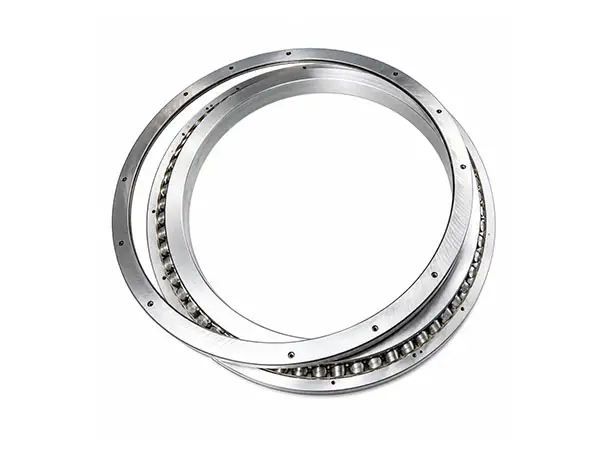

HCRBH11020A - HCRBH Series Crossed Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HCRBH11020A |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Crossed Roller Bearing |
| Series | HCRBH |
| Design Type | Integrated Inner and Outer Rings |
| Seal Type | Double-sided Sealed |
| Dimensions | |
| Roller Pitch Circle Diameter dp | — mm |
| Bore Diameter (d) | 110 mm |
| Width (B) | 20 mm |
| Outer Diameter (D) | 160 mm |
| Minimum Chamfer Dimension rmin | 0.6 mm |
| Inner Ring Shoulder Diameter ds | 12 mm |
| Outer Ring Shoulder Diameter Dh | 150 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 52.4 kN |
| Basic Static Radial Load Rating C0r (kN) | 77.4 kN |
| Reference Data | |
| Reference Mass (kg) | 1.56 kg |
160 mm 110 mm 20 mm HCRBH11020A Frequently Asked Questions about HCRBH11020A HCRBH Series Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
In its sealed configuration (Double-sided Sealed), CHG Bearing pre-charges HCRBH11020A with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
As standard production, CHG Bearing subjects HCRBH11020A to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Model HCRBH11020A is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 110 mm) and steep thermal gradients between inner and outer rings.
The CHG Bearing HCRBH11020A is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
