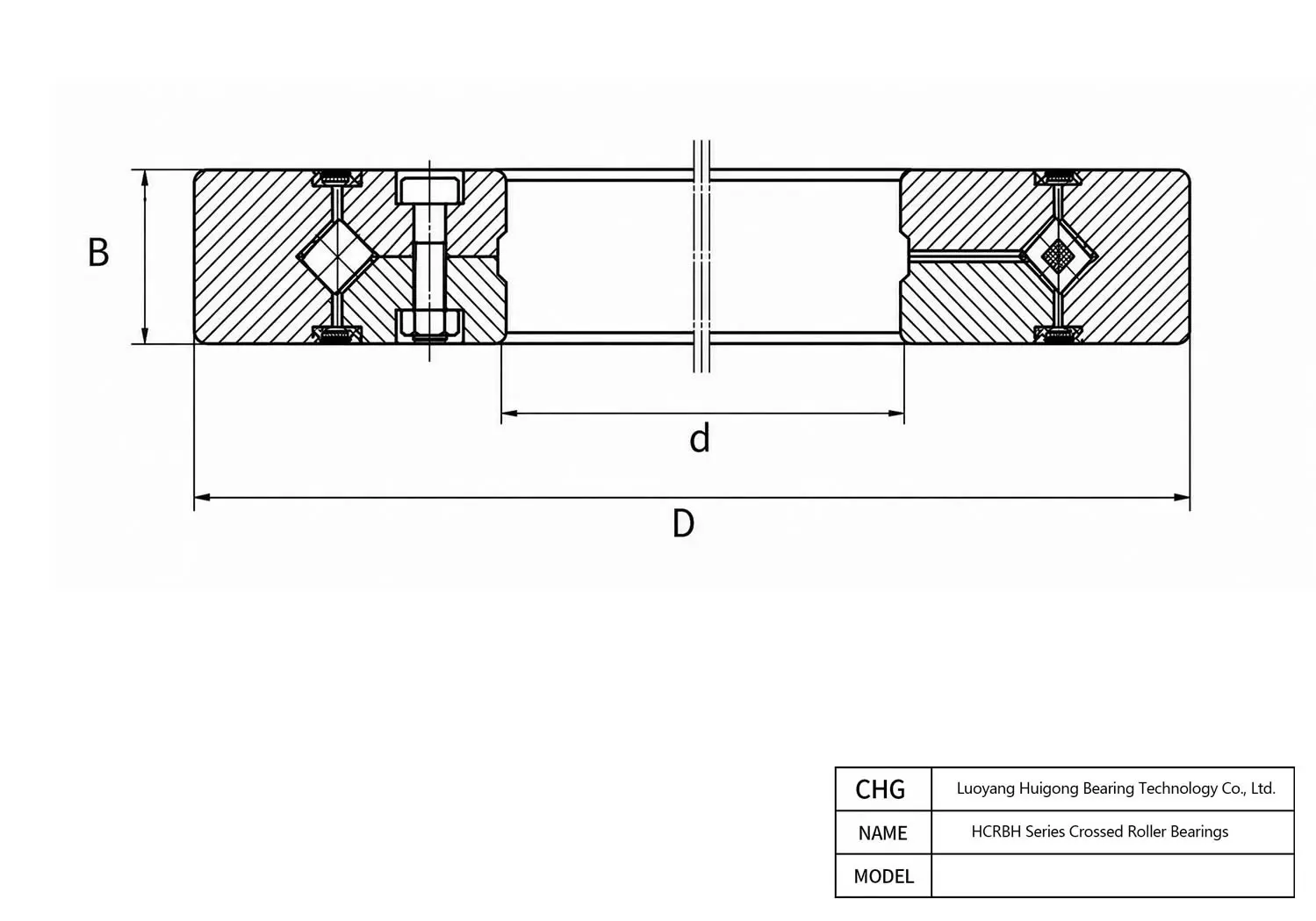

Manufactured by CHG Bearing, the HCRBH12025A is a precision HCRBH Series Crossed Roller Bearings. Key dimensional parameters include a 120 mm bore diameter, a 180 mm outer diameter, and a 25 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HCRBH12025A - HCRBH Series Crossed Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HCRBH12025A |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Crossed Roller Bearing |
| Series | HCRBH |
| Design Type | Integrated Inner and Outer Rings |
| Seal Type | Double-sided Sealed |
| Dimensions | |
| Roller Pitch Circle Diameter dp | — mm |
| Bore Diameter (d) | 120 mm |
| Width (B) | 25 mm |
| Outer Diameter (D) | 180 mm |
| Minimum Chamfer Dimension rmin | 1 mm |
| Inner Ring Shoulder Diameter ds | 132 mm |
| Outer Ring Shoulder Diameter Dh | 168 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 73.4 kN |
| Basic Static Radial Load Rating C0r (kN) | 108 kN |
| Reference Data | |
| Reference Mass (kg) | 2.62 kg |
180 mm 120 mm 25 mm HCRBH12025A Frequently Asked Questions about HCRBH12025A HCRBH Series Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for HCRBH12025A. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
For international ocean and air freight, CHG Bearing packs HCRBH12025A with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
Beyond standard alloy steel, CHG Bearing can customize the HCRBH12025A HCRBH Series Crossed Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
To extend the trouble-free lifespan of CHG Bearing HCRBH12025A, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
