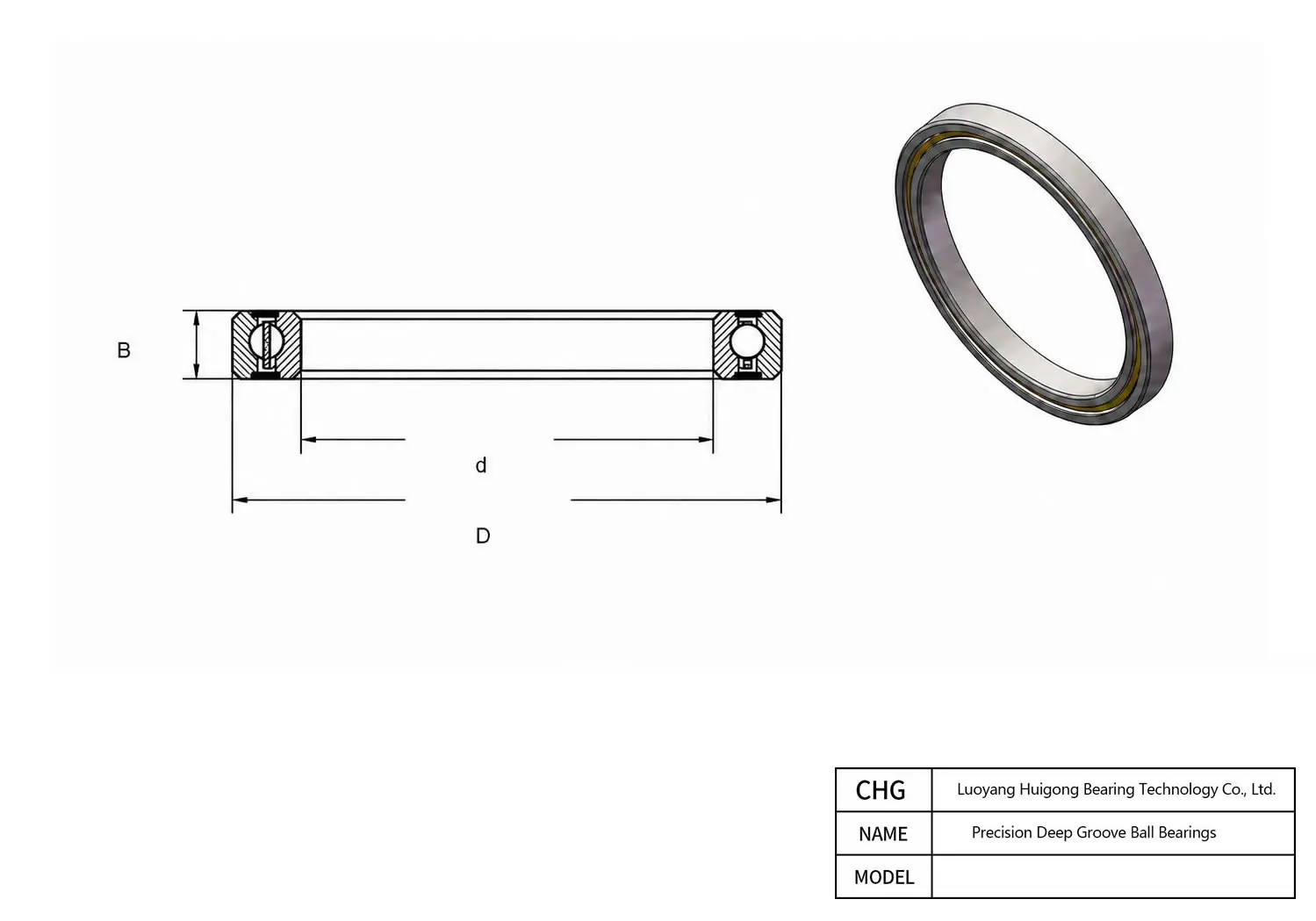

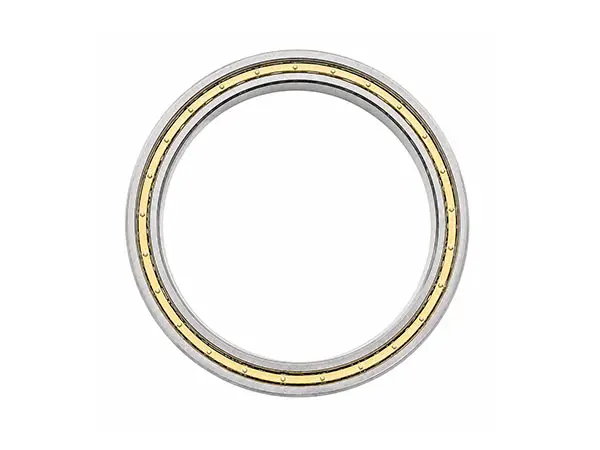

Manufactured by CHG Bearing, the 61902 is a precision Deep Groove Ball Bearings（618 / 619 SERIES）. Key dimensional parameters include a 15 mm bore diameter, a 28 mm outer diameter, and a 7 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
Technical Specifications
| Overview | |
|---|---|
| Part Number | 61902 61902 |
| Brand | CHG® CHG® |
| Characteristics | |
| Bearing Type | Deep Groove Ball Bearing Deep Groove Ball Bearing |
| Seal Type | Open / Contact Seal Options Open / Contact Seal Options |
| Load Direction | Radial Radial |
| Row Configuration | Single Row Single Row |
| Dimensions | |
| Bore Diameter (d) | 15 mm |
| Width (B) | 7 mm |
| Outer Diameter (D) | 28 mm |
| Bore Diameter Tolerance | -0.008-0 mm |
| Outside Diameter Tolerance | -0.009-0 mm |
| Width Tolerance | -0.12-0 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr | 4.35 kN 0.98 klbf |
| Basic Static Radial Load Rating C0r | 2.26 kN 0.51 klbf |
| Limiting Speed – Grease | 26000 r/min 26000 r/min |
| Limiting Speed – Oil | 30000 (r/min) 30000 (r/min) |
| Material | |
| Mass | 0.015 kg 0.0331 lb |
| Ring Material | Stainless Steel / Bearing Steel Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range | -50 to +100 °C -50 to +100 °C |
| Precision Class | P0 P0 |
| Radial Internal Clearance | 0.003-0.018 mm |
61902 28 mm 15 mm 7 mm Frequently Asked Questions about 61902 Deep Groove Ball Bearings（618 / 619 SERIES）
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Every production batch of CHG Bearing 61902 Deep Groove Ball Bearings（618 / 619 SERIES） comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
Model 61902 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 15 mm) and steep thermal gradients between inner and outer rings.

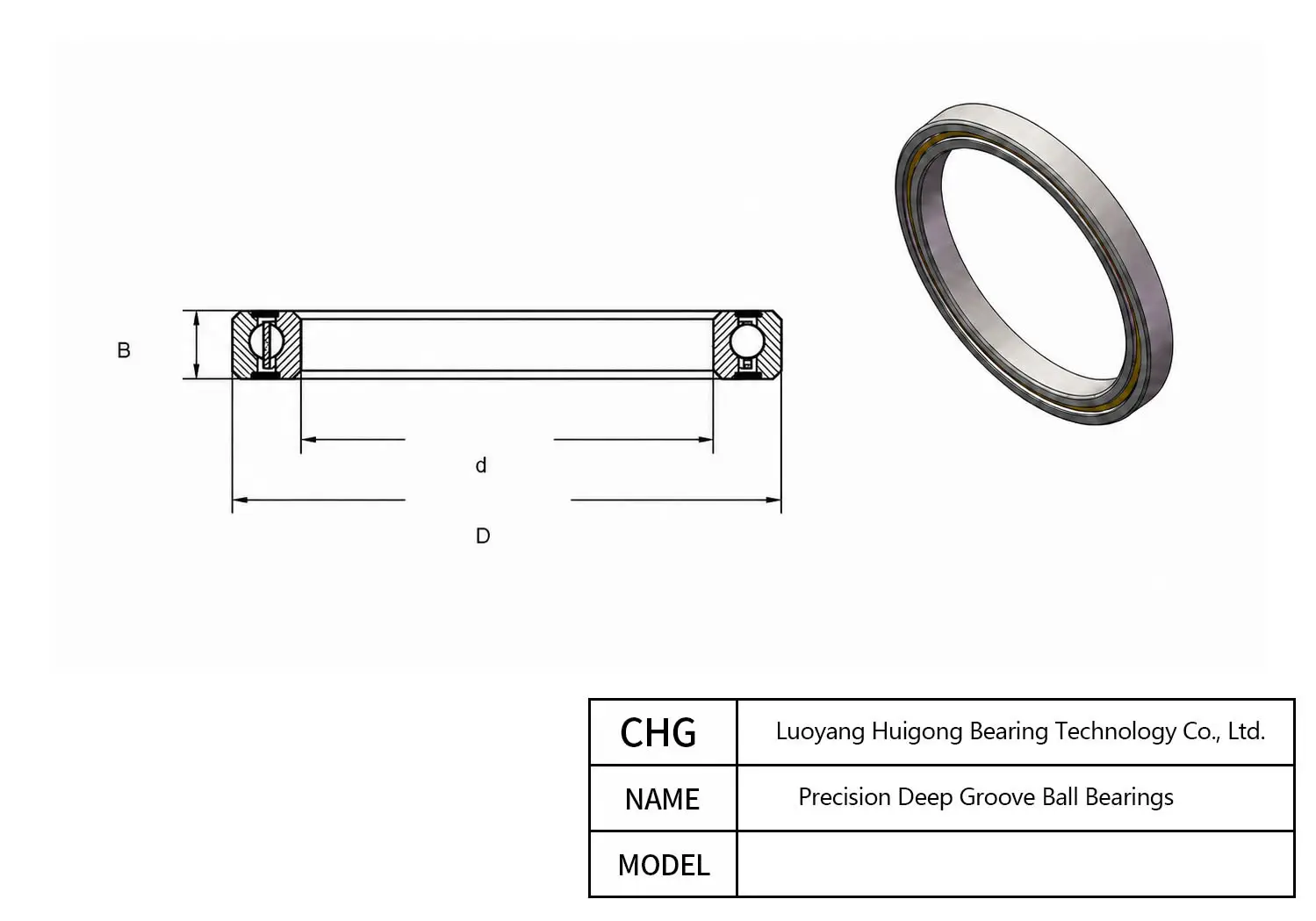

Engineered according to international ISO boundary plans, CHG Bearing supplies 61902 with a precision bore diameter (d) of 15 mm, an outside diameter (D) of 28 mm, and a nominal ring width (B) of 7 mm. This configuration yields an effective cross-sectional wall thickness of 6.5 mm and an envelope ratio (D/d) of 1.87, delivering compact rigidity for OEM machinery housings.
Built for demanding industrial environments, the 61902 Deep Groove Ball Bearings（618 / 619 SERIES） by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
