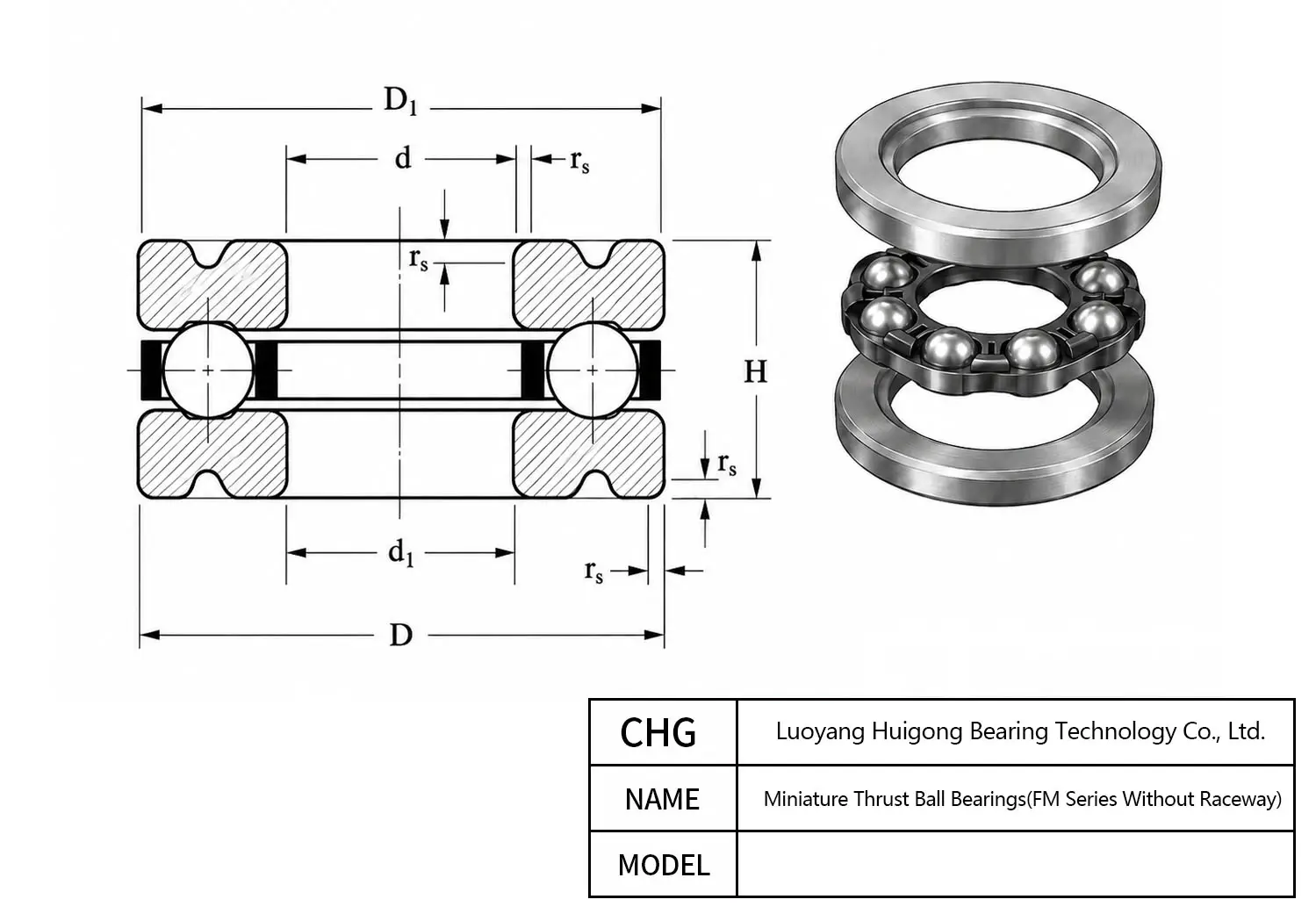

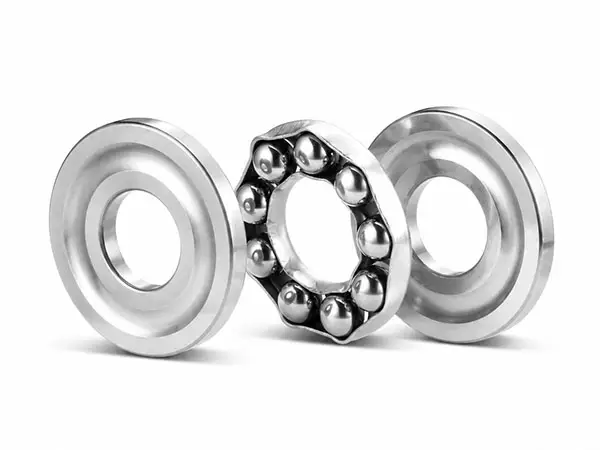

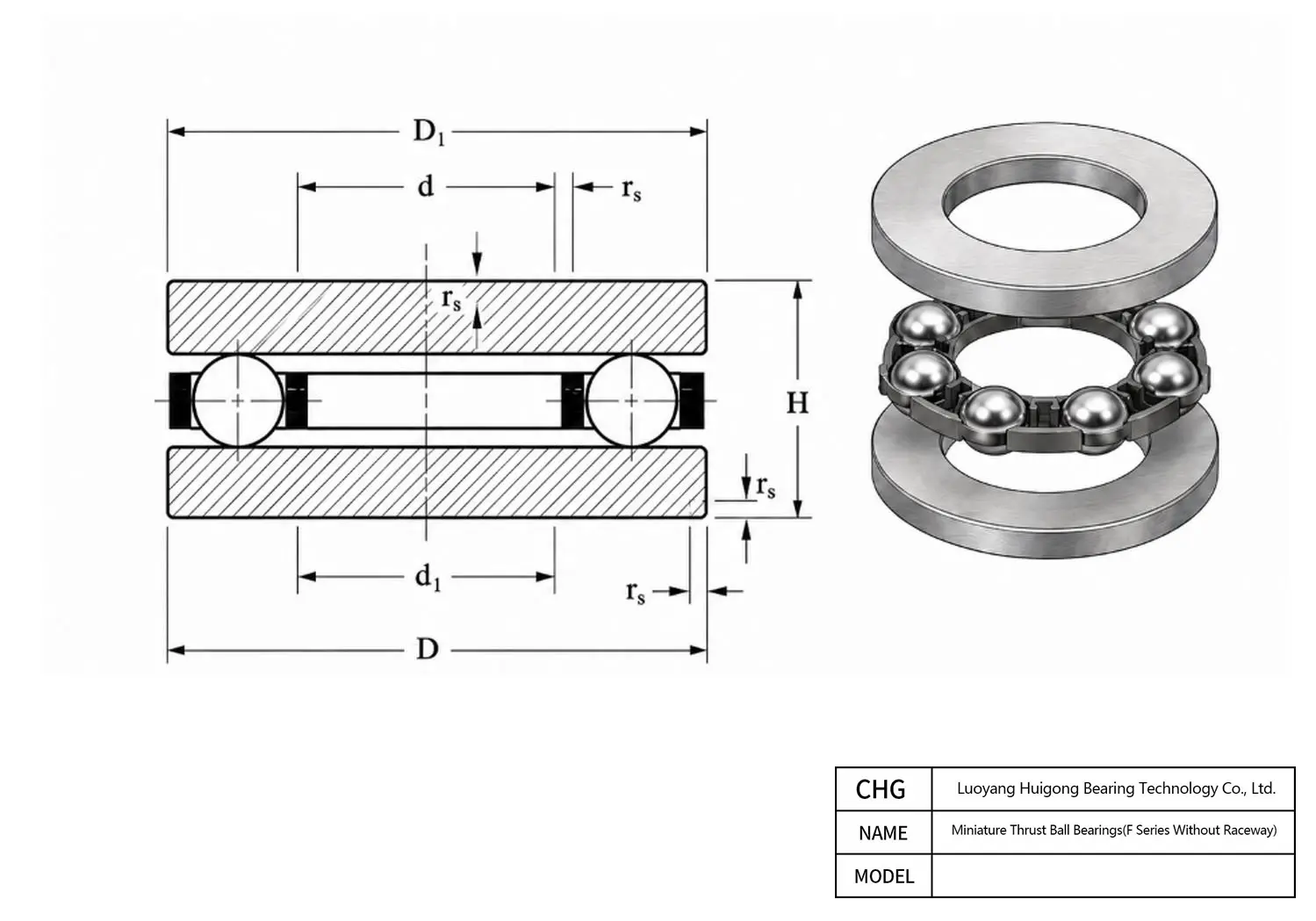

Manufactured by CHG Bearing, the F4-10M is a precision Miniature Thrust Ball Bearings. Key dimensional parameters include a 4 mm bore diameter, a 10 mm outer diameter, and a 4 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
F4-10M - Miniature Thrust Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | F4-10M |
| Raceway Design | With Raceway |
| Dimensions | |
| Bore Diameter (d) | 4 mm |
| Width (B) | 4 mm |
| Outer Diameter (D) | 10 mm |
| Radius rs min | 0.15 mm |
| Outer Ring Bore d1 | 4.2 mm |
| Inner Ring Outside D1 | 9.8 mm |
| Performance | |
| Grease Speed (x1000 rpm) | 16 x1000 rpm |
| Oil Speed (x1000 rpm) | 24 x1000 rpm |
| Dynamic Axial Load Ca (N) | 925 N |
| Static Axial Load C0a (N) | 661 N |
| Internal Design & Weight | |
| Cage Type | TP |
| Ball Qty. Z | 6 |
| Ball Size Dw | 1.588 mm |
| Reference Data | |
| Reference Weight (g) | 1.5 g |
| Stainless Suffix | H |
F4-10M 10 mm 4 mm 9.8 mm 4.2 mm Frequently Asked Questions about F4-10M Miniature Thrust Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To extend the trouble-free lifespan of CHG Bearing F4-10M, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
As standard production, CHG Bearing subjects F4-10M to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Engineered according to international ISO boundary plans, CHG Bearing supplies F4-10M with a precision bore diameter (d) of 4 mm, an outside diameter (D) of 10 mm, and a nominal ring width (B) of 4 mm. This configuration yields an effective cross-sectional wall thickness of 3.0 mm and an envelope ratio (D/d) of 2.5, delivering compact rigidity for OEM machinery housings.
Each F4-10M produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (4 mm bore side) ensures perfect planar contact without edge binding.
