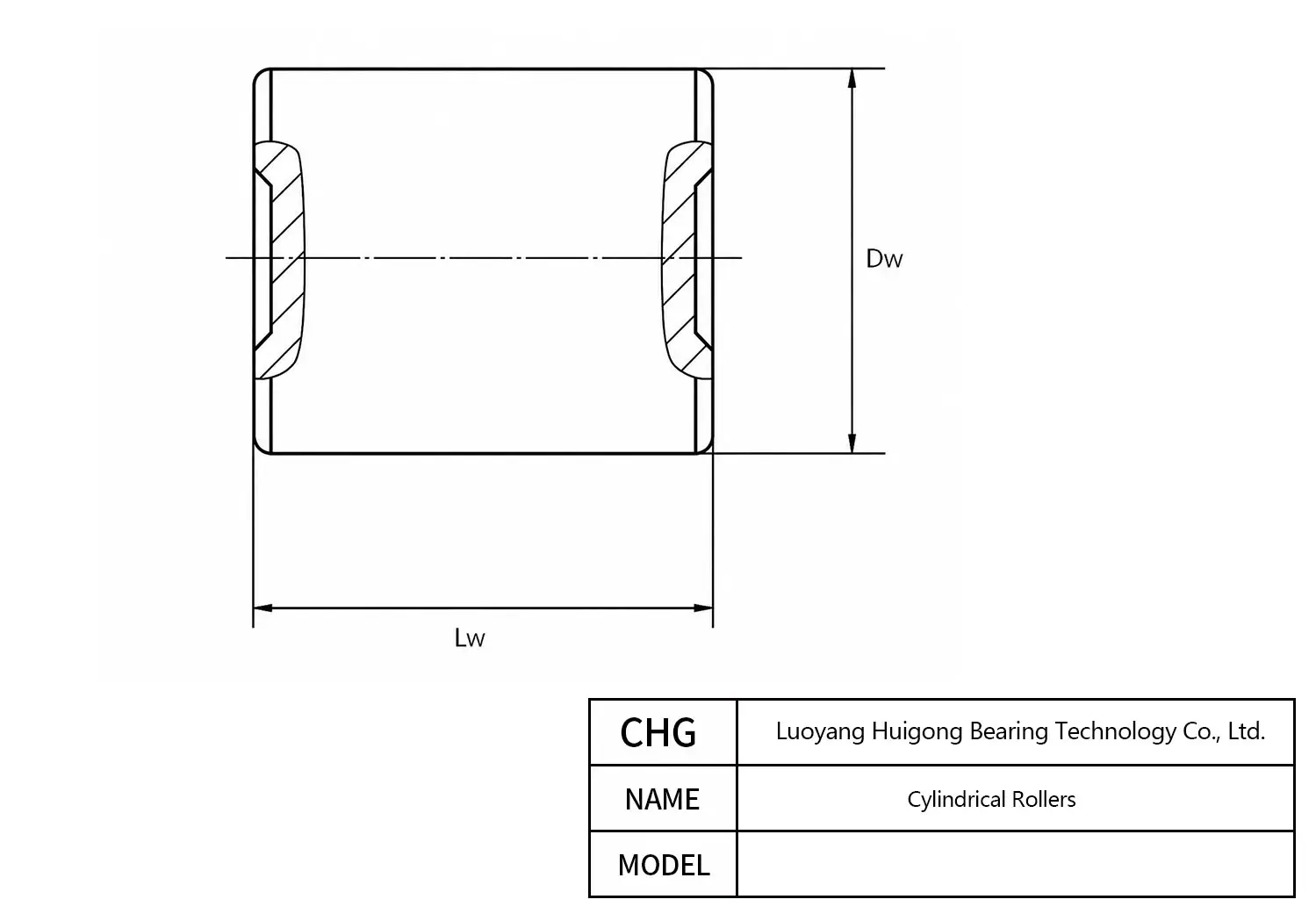

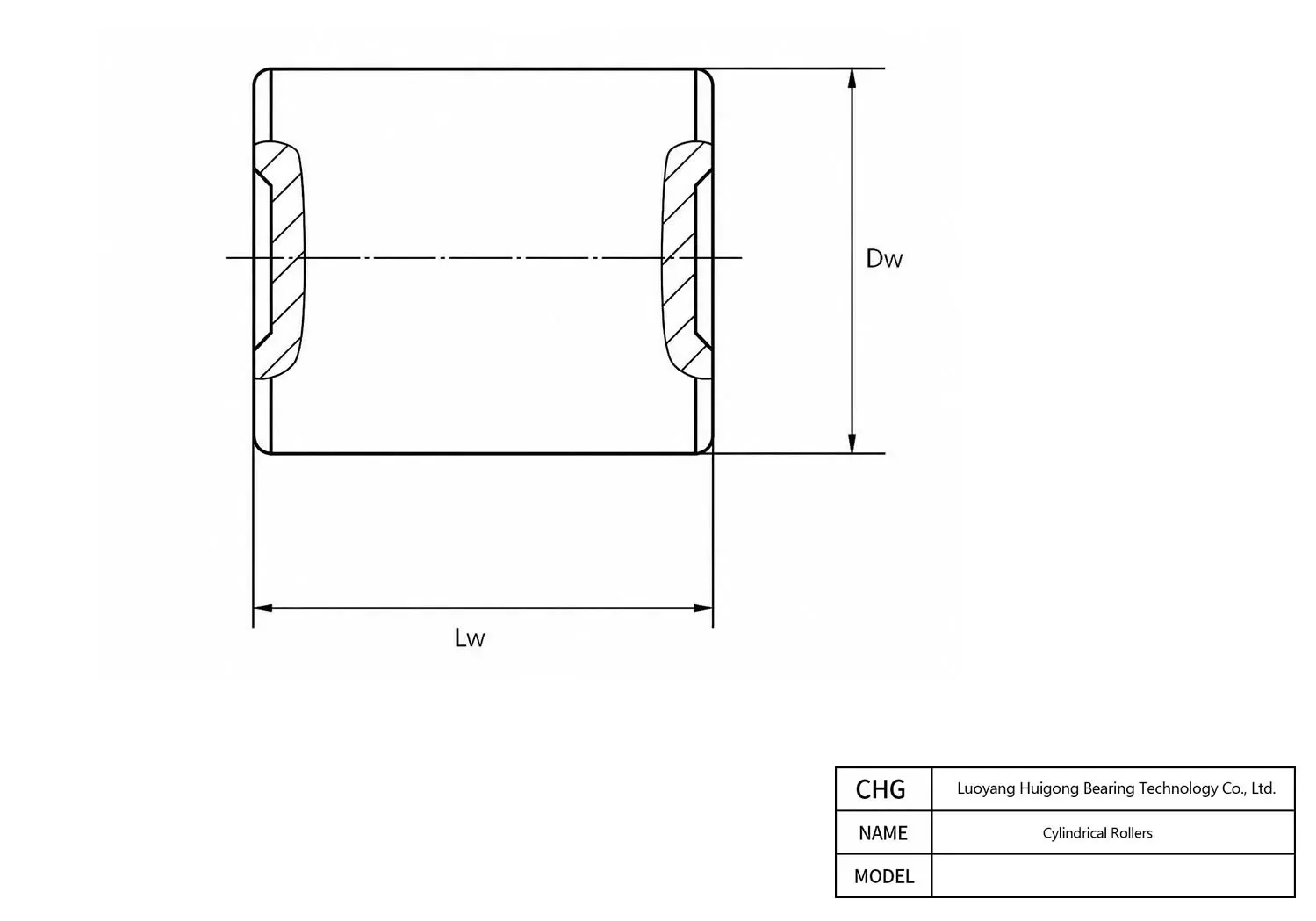

Manufactured by CHG Bearing, the 62*96 is a precision Cylindrical Rollers. Key dimensional parameters include a mm bore diameter, a mm outer diameter, and a mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
62*96 - Cylindrical Rollers
Technical Specifications
| Overview | |
|---|---|
| Part Number | 62*96 |
| Brand | CHG® |
| Product Type | Cylindrical Roller |
| Dimensions | |
| Roller Diameter, Dw | 62 mm |
| Roller Length, Lw | 96 mm |
| Center Recess Diameter | 21 mm |
| Through-hole Diameter | 18 mm |
| Center Recess Depth | 2 mm |
| Dimensional & Geometrical Accuracy | |
| Roller Diameter Tolerance | -0.03-0.005 mm |
| Roller Length Tolerance | -0.05 to 0 mm |
| Through-hole Runout | 0.03 mm |
| End-face Runout | 0.015 mm |
| Diameter Variation Between Ends | 0.002 mm |
| Roundness | 0.002 mm |
| Ovality | 0.002 mm |
| Surface Finish | |
| Outside Diameter Surface Roughness, Ra (µm) | 0.16 µm |
| End-face Surface Roughness, Ra (µm) | 0.25 µm |
| Chamfer Geometry | |
| Axial Chamfer | 2 mm |
| Axial Chamfer Tolerance | -0.2 to +0.2 mm |
| Radial Chamfer | 2 mm |
| Radial Chamfer Tolerance | -0.2 to +0.2 mm |
62*96 62 mm 96 mm Frequently Asked Questions about 62*96 Cylindrical Rollers
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
For international ocean and air freight, CHG Bearing packs 62*96 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
Yes, 100% of 62*96 Cylindrical Rollers leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
As standard production, CHG Bearing subjects 62*96 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
To extend the trouble-free lifespan of CHG Bearing 62*96, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
