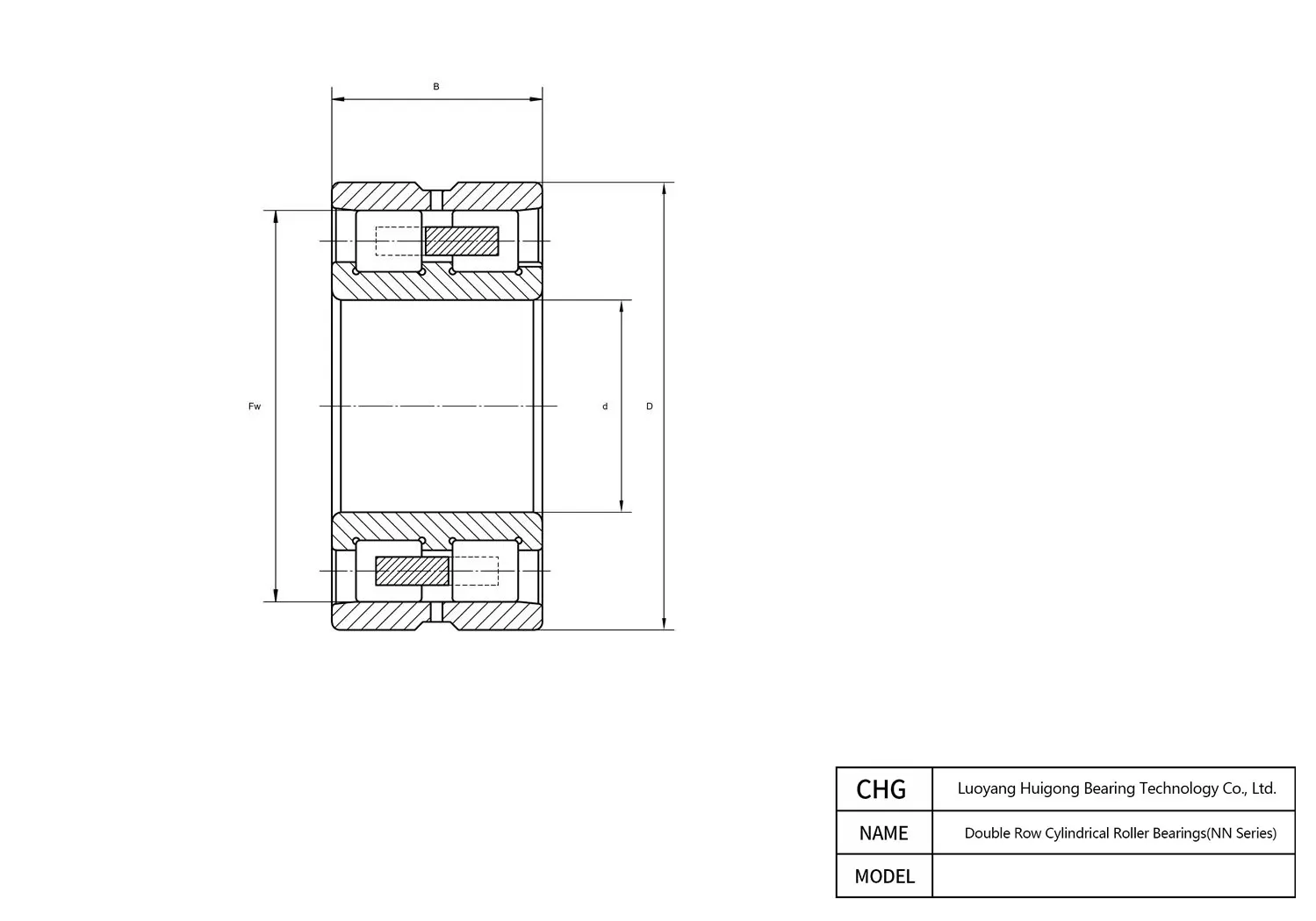

Manufactured by CHG Bearing, the NN3021 is a precision Double Row Cylindrical Roller Bearings. Key dimensional parameters include a 105 mm bore diameter, a 160 mm outer diameter, and a 41 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NN3021 - Double Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NN3021 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Number of Rows | Double Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 105 mm |
| Width (B) | 41 mm |
| Outer Diameter (D) | 160 mm |
| Bore Diameter Tolerance | -0.020 – 0 mm |
| Outside Diameter Tolerance | -0.025 – 0 mm |
| Width Tolerance | -0.25 – 0 mm |
| Enveloping Circle Diameter Fw | 146 mm |
| Inner Ring Chamfer | 2 min mm |
| Outer Ring Chamfer | 2 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 197 kN |
| Basic Static Load Rating C0 (kN) | 322 kN |
| Material | |
| Mass (kg) | 2.88 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |
NN3021 160 mm 105 mm 41 mm 146 mm Frequently Asked Questions about NN3021 Double Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To match diverse operational dynamics, CHG Bearing supplies NN3021 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing NN3021 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
The Open Type engineered for NN3021 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
When fitting NN3021 over a 105 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
