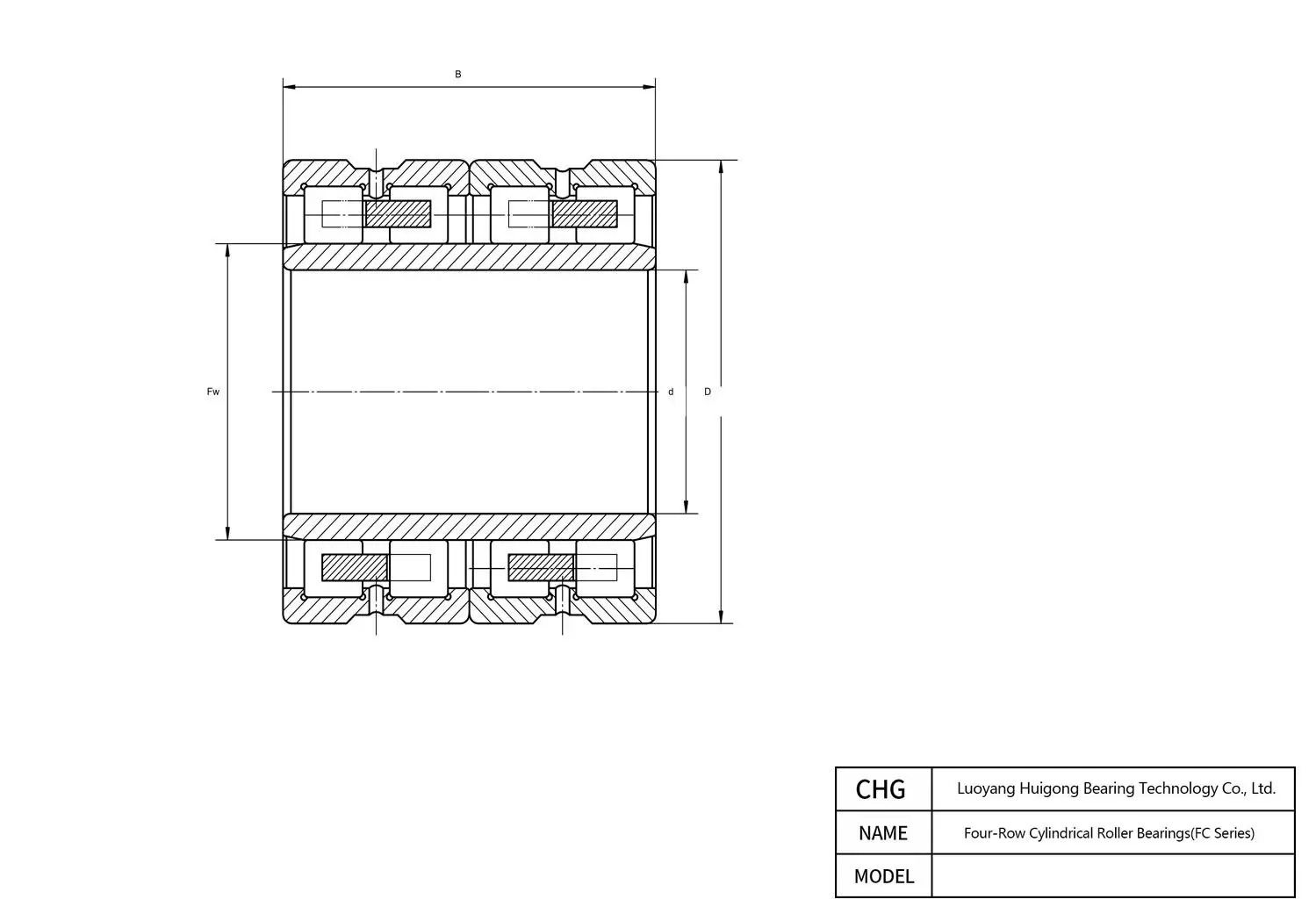

Manufactured by CHG Bearing, the 74FC54400A is a precision Four-Row Cylindrical Roller Bearings. Key dimensional parameters include a 370 mm bore diameter, a 540 mm outer diameter, and a 400 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
74FC54400A - Four-Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 74FC54400A |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Cylindrical Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 370 mm |
| Width (B) | 400 mm |
| Outer Diameter (D) | 540 mm |
| Bore Diameter Tolerance | -0.040 – 0 mm |
| Outside Diameter Tolerance | -0.050 – 0 mm |
| Width Tolerance | -0.50 – 0 mm |
| Enveloping Circle Diameter Fw | 415 mm |
| Inner Ring Chamfer | 4 min mm |
| Outer Ring Chamfer | 4 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 5190 kN |
| Basic Static Load Rating C0 (kN) | 11500 kN |
| Material | |
| Mass (kg) | 311 kg |
| Ring Material | Bearing Steel / Case-Hardened Steel |
| Rolling Element Material | Bearing Steel / Case-Hardened Steel |
| Cage Material | Brass |
| Lubrication Groove Width | 16 mm |
| Lubrication Holes (qty × Ø mm) | 8 × Ø8 |
74FC54400A 540 mm 370 mm 415 mm 400 mm Frequently Asked Questions about 74FC54400A Four-Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The Open Type engineered for 74FC54400A by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
When fitting 74FC54400A over a 370 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
Standard batches of CHG Bearing 74FC54400A conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
To match diverse operational dynamics, CHG Bearing supplies 74FC54400A with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
