Manufactured by CHG Bearing, the FCD6896280p5 is a precision Four-Row Cylindrical Roller Bearings. Key dimensional parameters include a 340 mm bore diameter, a 480 mm outer diameter, and a 280 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
FCD6896280p5 - Four-Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | FCD6896280p5 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Cylindrical Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P5 |
| Dimensions | |
| Bore Diameter (d) | 340 mm |
| Width (B) | 280 mm |
| Outer Diameter (D) | 480 mm |
| Bore Diameter Tolerance | -0.023 – 0 mm |
| Outside Diameter Tolerance | -0.023 – 0 mm |
| Width Tolerance | -0.45 – 0 mm |
| Enveloping Circle Diameter Fw | 374 mm |
| Inner Ring Chamfer | 4 min mm |
| Outer Ring Chamfer | 4 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 3060 kN |
| Basic Static Load Rating C0 (kN) | 7400 kN |
| Material | |
| Mass (kg) | 153 kg |
| Ring Material | Bearing Steel / Case-Hardened Steel |
| Rolling Element Material | Bearing Steel / Case-Hardened Steel |
| Cage Material | Brass |
| Lubrication Groove Width | 12 mm |
| Lubrication Holes (qty × Ø mm) | 6 × Ø6 |

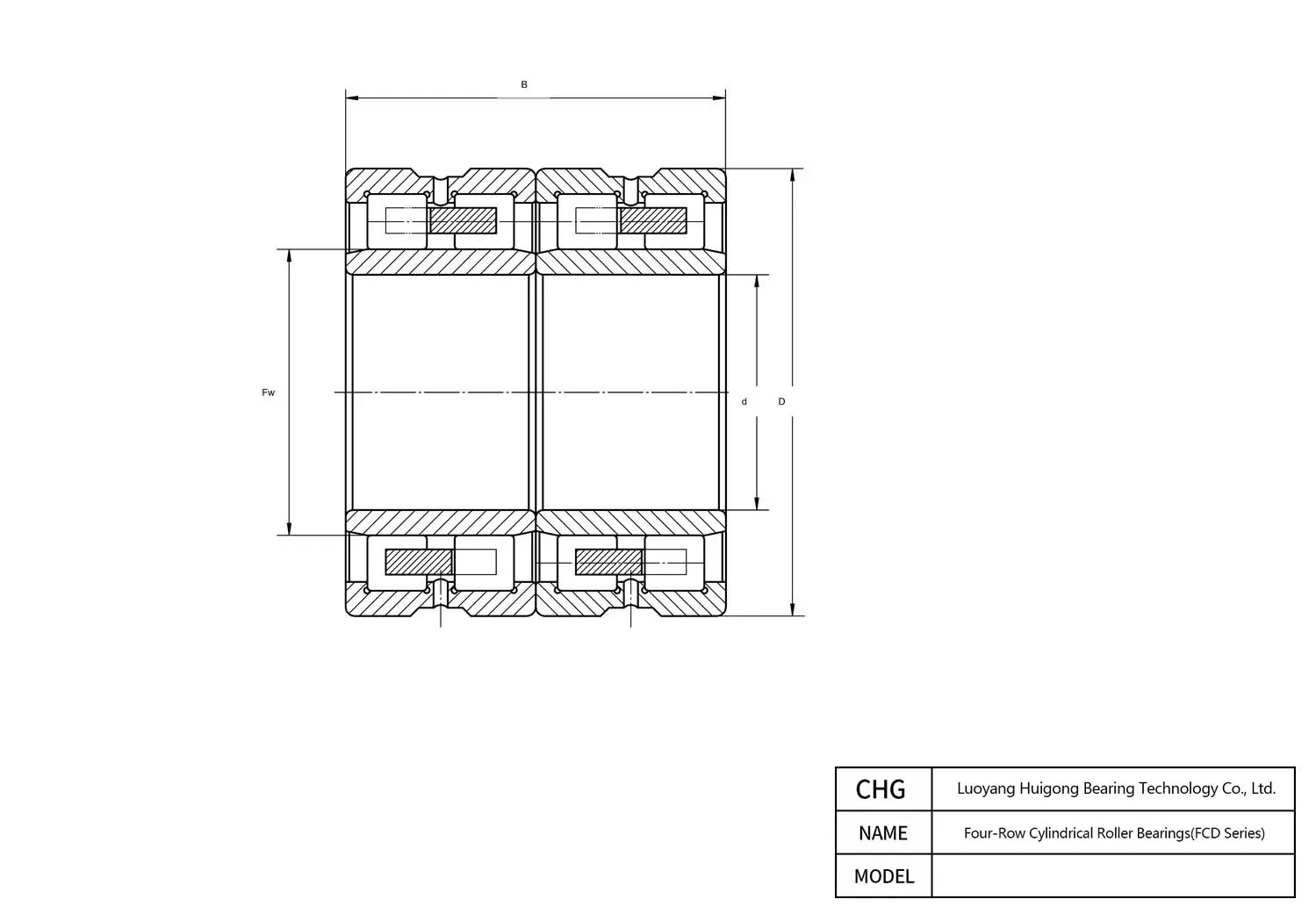

FCD6896280p5 480 mm 340 mm 374 mm 280 mm Frequently Asked Questions about FCD6896280p5 Four-Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
When fitting FCD6896280p5 over a 340 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
To ensure optimum performance of CHG Bearing FCD6896280p5 Four-Row Cylindrical Roller Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 340 mm bore. For the 480 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
Engineered according to international ISO boundary plans, CHG Bearing supplies FCD6896280p5 with a precision bore diameter (d) of 340 mm, an outside diameter (D) of 480 mm, and a nominal ring width (B) of 280 mm. This configuration yields an effective cross-sectional wall thickness of 70.0 mm and an envelope ratio (D/d) of 1.41, delivering compact rigidity for OEM machinery housings.
Every production batch of CHG Bearing FCD6896280p5 Four-Row Cylindrical Roller Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
