Manufactured by CHG Bearing, the FCDP120174640 is a precision Four-Row Cylindrical Roller Bearings. Key dimensional parameters include a 600 mm bore diameter, a 870 mm outer diameter, and a 640 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

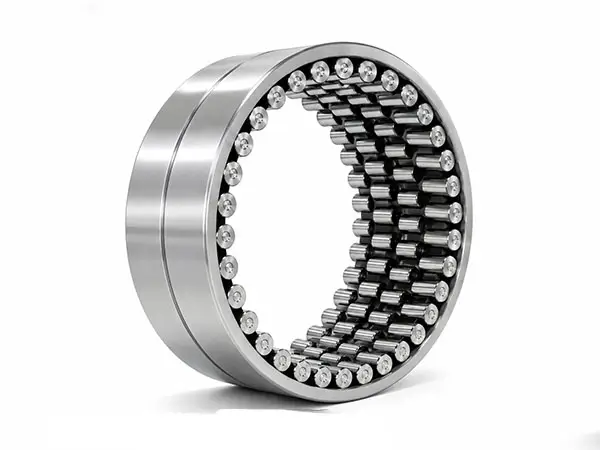

FCDP120174640 - Four-Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | FCDP120174640 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Cylindrical Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 600 mm |
| Width (B) | 640 mm |
| Outer Diameter (D) | 870 mm |
| Bore Diameter Tolerance | -0.050 – 0 mm |
| Outside Diameter Tolerance | -0.10 – 0 mm |
| Width Tolerance | -1.25 – 0 mm |
| Enveloping Circle Diameter Fw | 682 mm |
| Inner Ring Chamfer | 17 × 20° mm |
| Outer Ring Chamfer | 6 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 15100 kN |
| Basic Static Load Rating C0 (kN) | 41700 kN |
| Material | |
| Mass (kg) | 1370 kg |
| Ring Material | Case-Hardened Steel |
| Rolling Element Material | Case-Hardened Steel |
| Cage Material | Grade 45 Steel |
| Lubrication Groove Width | 18 mm |
| Lubrication Holes (qty × Ø mm) | 8 × Ø10 |

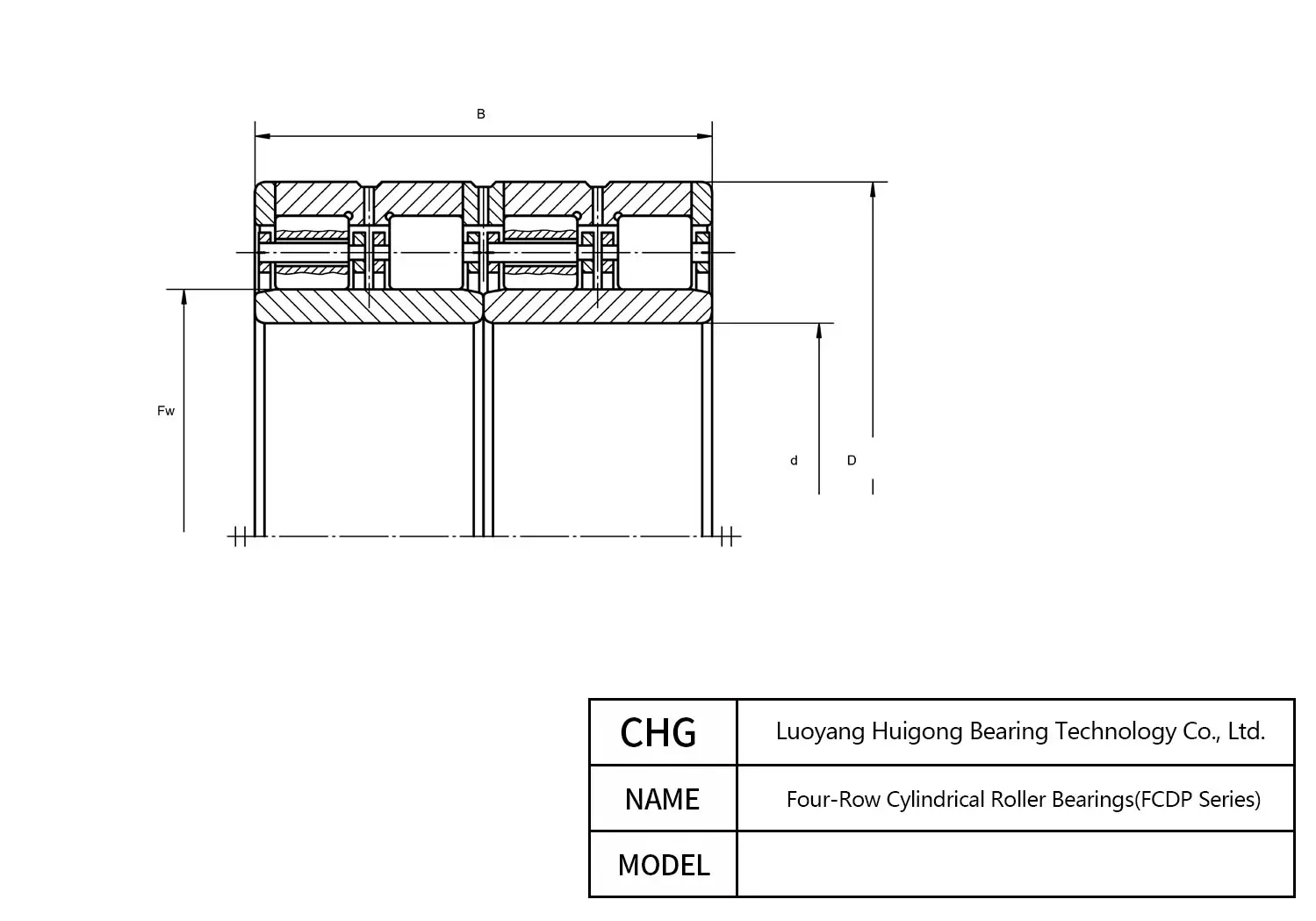

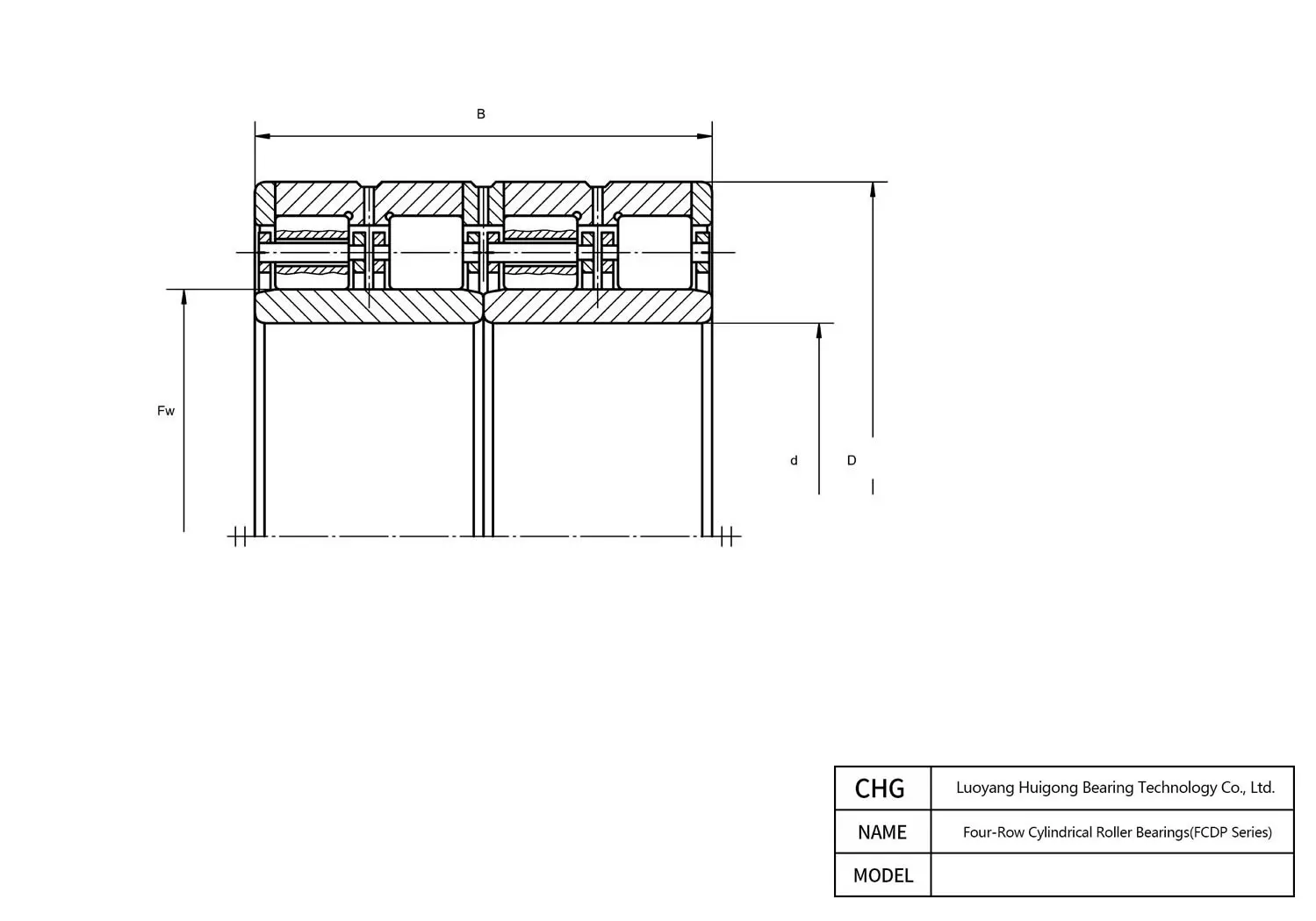

FCDP120174640 870 mm 600 mm 682 mm 640 mm Frequently Asked Questions about FCDP120174640 Four-Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To match diverse operational dynamics, CHG Bearing supplies FCDP120174640 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Yes, 100% of FCDP120174640 Four-Row Cylindrical Roller Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
Quality starts with raw material selection: CHG Bearing crafts FCDP120174640 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
Standard batches of CHG Bearing FCDP120174640 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
