Manufactured by CHG Bearing, the FCDP140196620 is a precision Four-Row Cylindrical Roller Bearings. Key dimensional parameters include a 700 mm bore diameter, a 930 mm outer diameter, and a 620 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

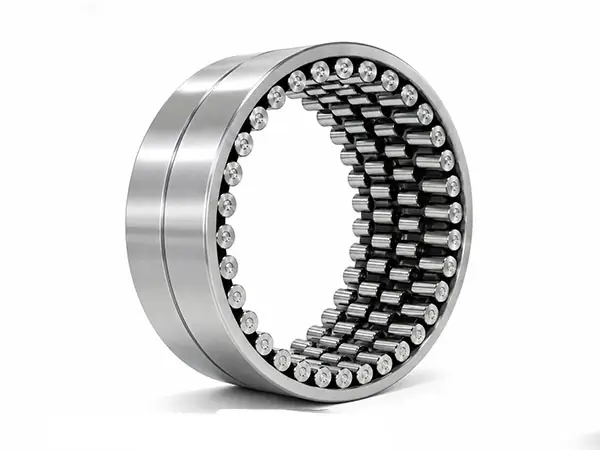

FCDP140196620 - Four-Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | FCDP140196620 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Cylindrical Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 700 mm |
| Width (B) | 620 mm |
| Outer Diameter (D) | 930 mm |
| Bore Diameter Tolerance | -0.075 – 0 mm |
| Outside Diameter Tolerance | -0.10 – 0 mm |
| Width Tolerance | -1.0 – 0 mm |
| Enveloping Circle Diameter Fw | 763 mm |
| Inner Ring Chamfer | 18 × 20° mm |
| Outer Ring Chamfer | 3 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 13000 kN |
| Basic Static Load Rating C0 (kN) | 43400 kN |
| Material | |
| Mass (kg) | 1210 kg |
| Ring Material | Case-Hardened Steel |
| Rolling Element Material | Case-Hardened Steel |
| Cage Material | Grade 45 Steel |
| Lubrication Groove Width | 20 mm |
| Lubrication Holes (qty × Ø mm) | 8 × Ø10 |

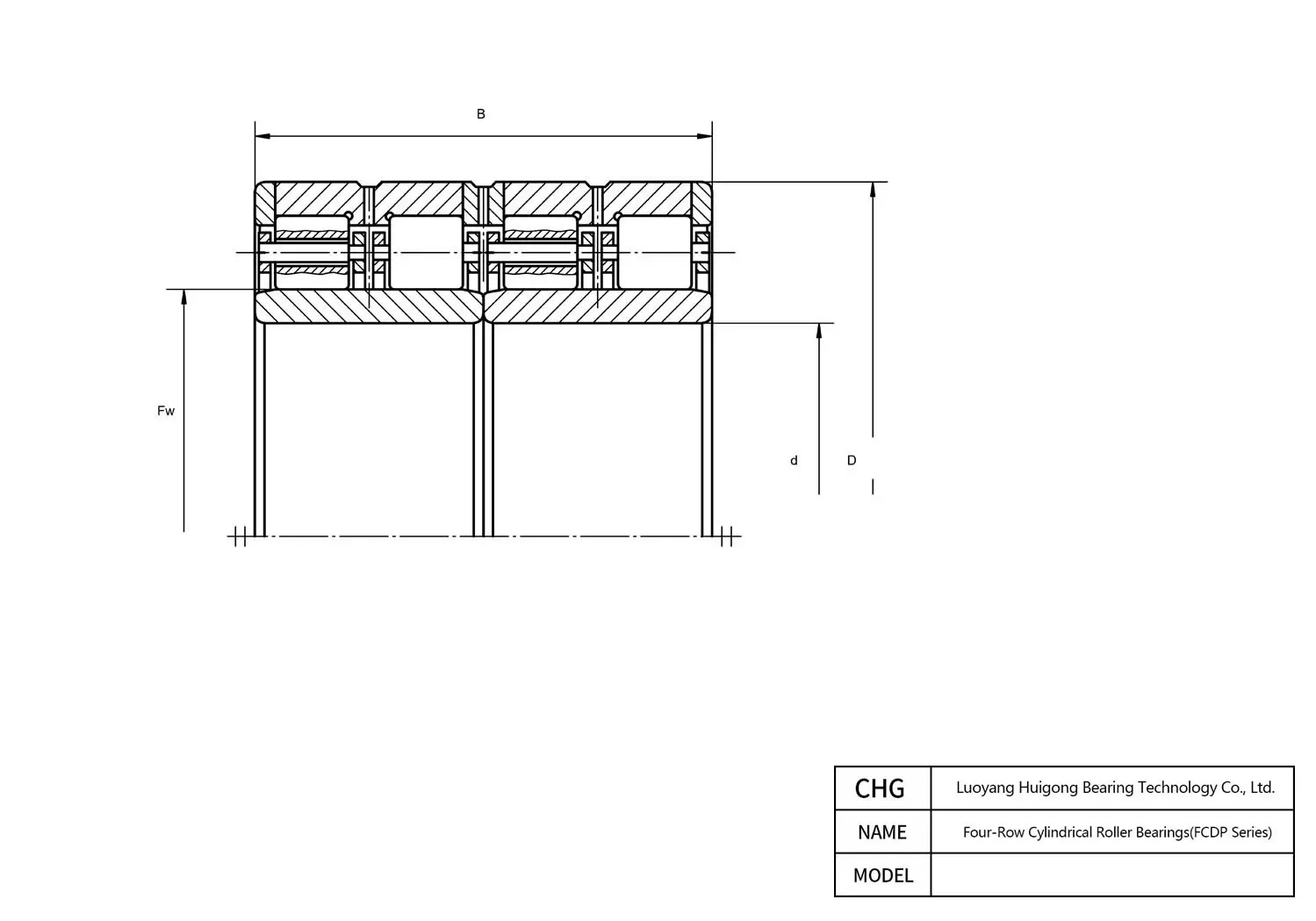

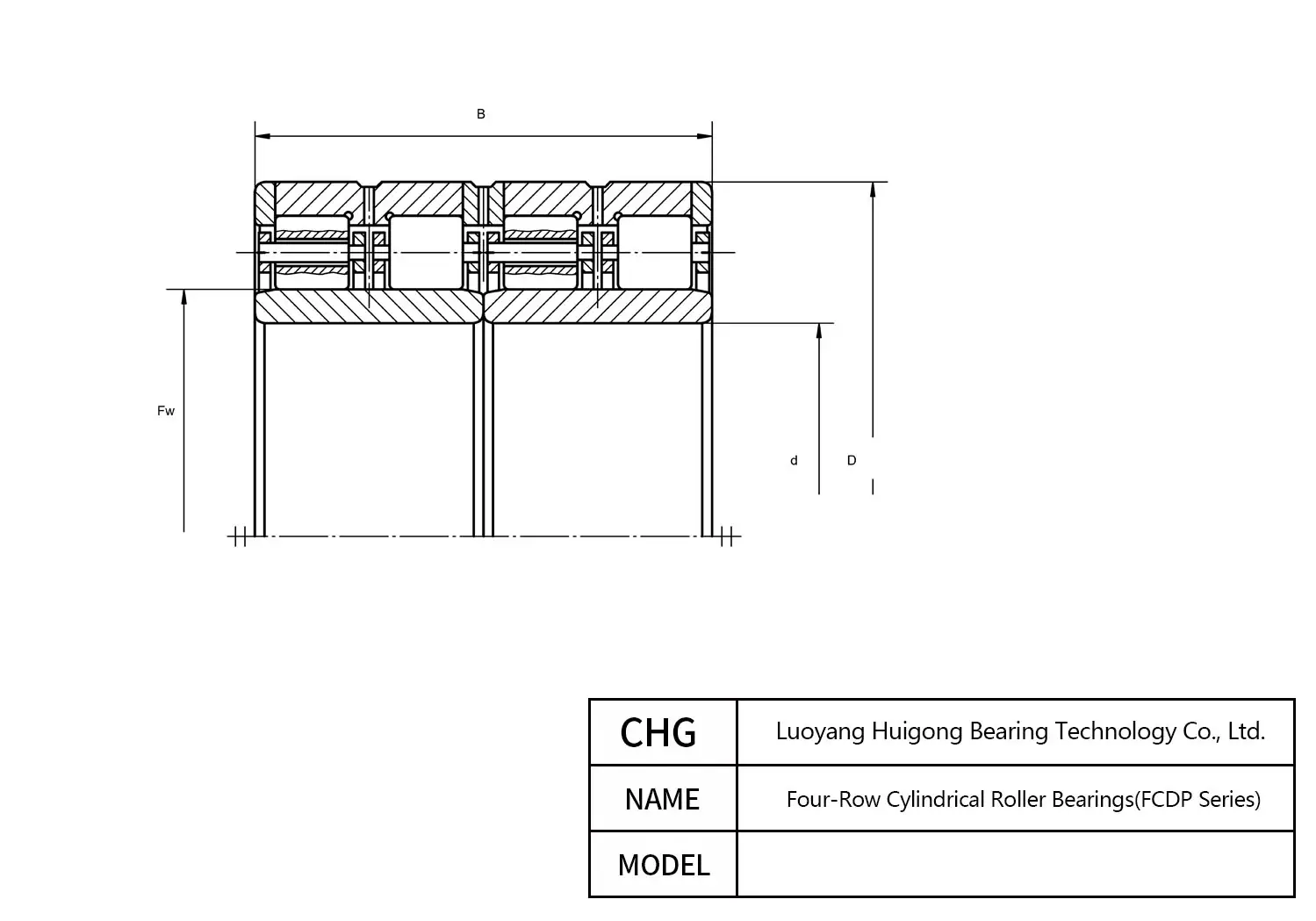

FCDP140196620 930 mm 700 mm 763 mm 620 mm Frequently Asked Questions about FCDP140196620 Four-Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To extend the trouble-free lifespan of CHG Bearing FCDP140196620, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
Built for demanding industrial environments, the FCDP140196620 Four-Row Cylindrical Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
In its sealed configuration (Open Type), CHG Bearing pre-charges FCDP140196620 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
Quality starts with raw material selection: CHG Bearing crafts FCDP140196620 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
