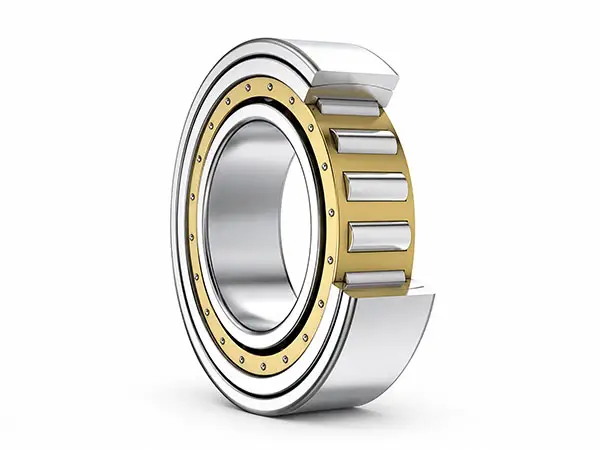

Single row cylindrical roller bearings are designed primarily for high radial loads. Line contact between the rollers and raceways provides higher radial load capacity, greater rigidity and better impact resistance than ball bearings of comparable dimensions.
CHG manufactures high-precision single row cylindrical roller bearings with optimized internal geometry and customized configurations for rolling mills and other heavy industrial equipment.
High Load Carrying Capacity
The line-contact design creates a larger load-bearing area, enabling the bearing to withstand high radial loads.
High radial load capacity
Excellent impact resistance
High rigidity
Long service life
Separable Bearing Design
The inner ring, outer ring, and roller-and-cage assembly can be separated, simplifying installation and maintenance.
Easy installation and removal
Convenient maintenance
Suitable for interference-fit applications
Bearing Structure Types
Series
Configuration
Function
N
Inner ring with two flanges
Primarily carries radial load
NU
Outer ring with two flanges
Allows axial displacement
NJ
One locating flange arrangement
Limited axial positioning
NUP
Locating ring arrangement
Axial positioning in both directions
Precision and Performance
CHG controls machining accuracy, roller diameter variation and internal clearance to improve load distribution, reduce edge stress and extend bearing service life.
Available precision grades: P5 · P4 · P2
Typical Applications
Large electric motors
Machine tool spindles
Railway axle boxes
Diesel engine crankshafts
Automotive transmission systems
Tractor transmission systems
Available Models & Specifications
Click on any part number to view detailed CAD drawings and download PDF specifications.
