Manufactured by CHG Bearing, the N2240 is a precision Single Row Cylindrical Roller Bearings. Key dimensional parameters include a 200 mm bore diameter, a 360 mm outer diameter, and a 98 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
N2240 - Single Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | N2240 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Single Row Cylindrical Roller Bearing |
| Number of Rows | Single Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 200 mm |
| Width (B) | 98 mm |
| Outer Diameter (D) | 360 mm |
| Bore Diameter Tolerance | -0.030 – 0 mm |
| Outside Diameter Tolerance | -0.040 – 0 mm |
| Width Tolerance | -0.30 – 0 mm |
| Enveloping Circle Diameter Fw | 316 mm |
| Inner Ring Chamfer | 4 min mm |
| Outer Ring Chamfer | 4 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 946 kN |
| Basic Static Load Rating C0 (kN) | 1490 kN |
| Material | |
| Mass (kg) | 44.4 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |

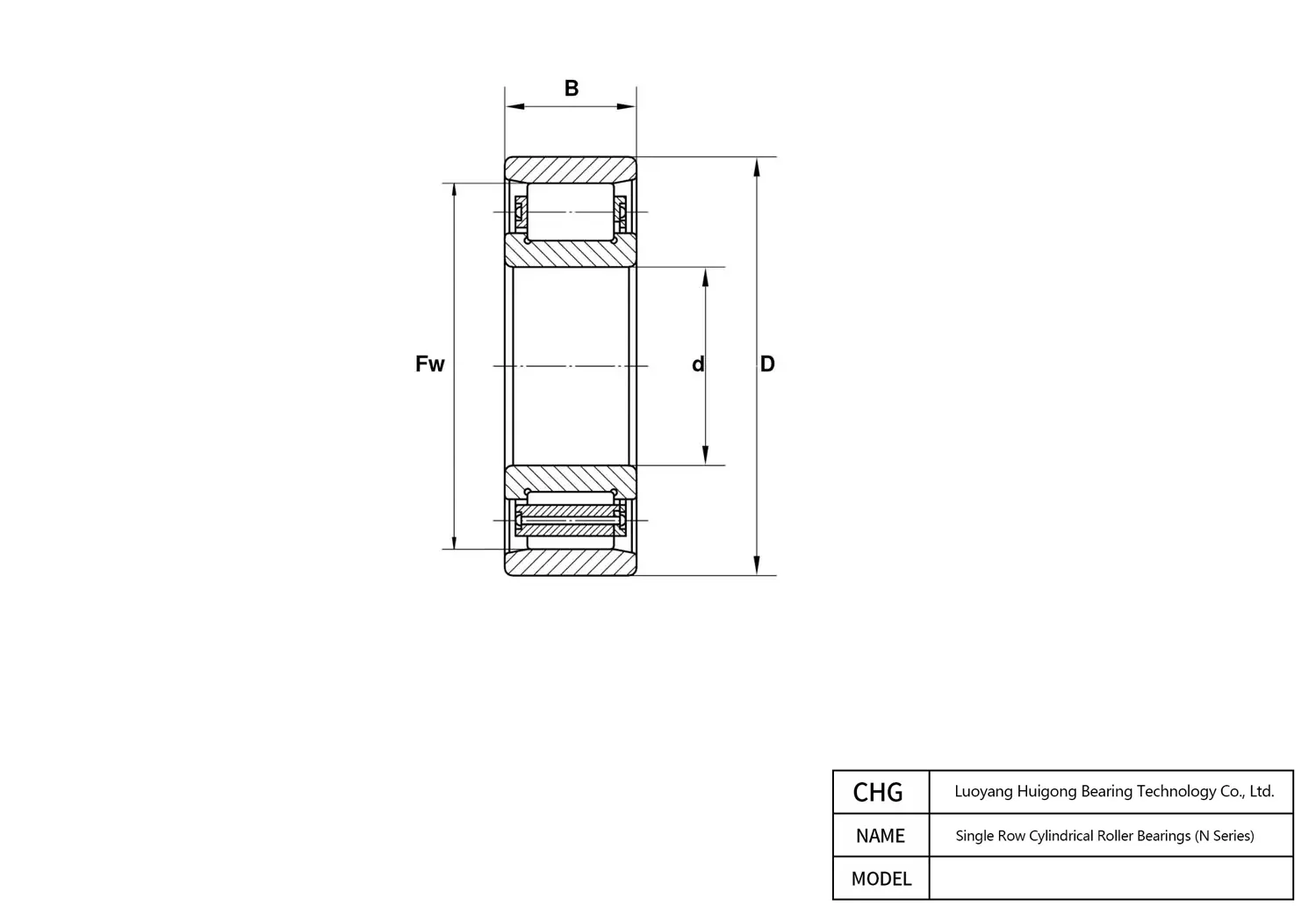

N2240 360 mm 200 mm 316 mm 98 mm Frequently Asked Questions about N2240 Single Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Built for demanding industrial environments, the N2240 Single Row Cylindrical Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for N2240, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
Every production batch of CHG Bearing N2240 Single Row Cylindrical Roller Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing N2240 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
