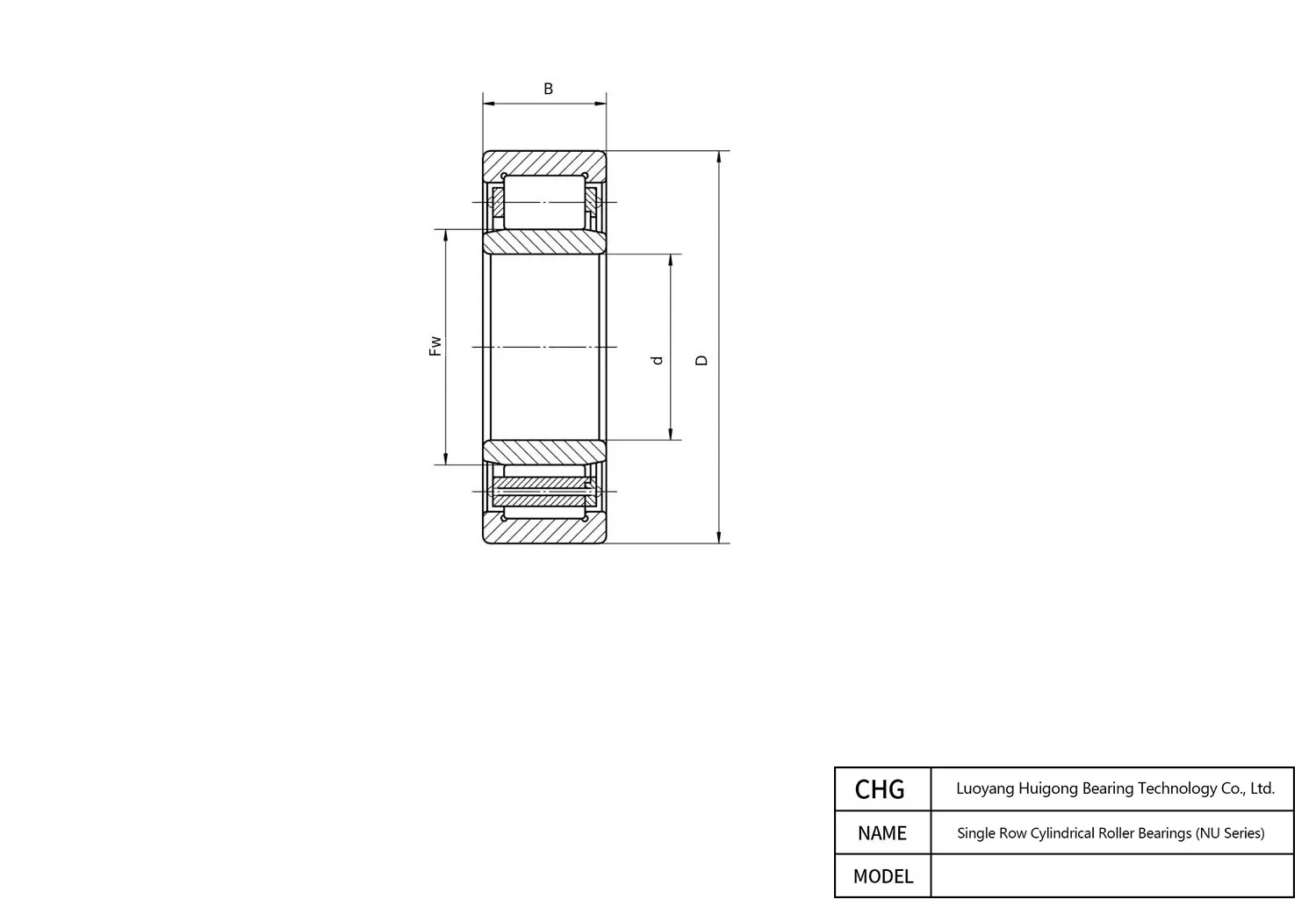

Manufactured by CHG Bearing, the NU1236 is a precision Single Row Cylindrical Roller Bearings. Key dimensional parameters include a 180 mm bore diameter, a 320 mm outer diameter, and a 52 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NU1236 - Single Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NU1236 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Single Row Cylindrical Roller Bearing |
| Number of Rows | Single Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 180 mm |
| Width (B) | 52 mm |
| Outer Diameter (D) | 320 mm |
| Bore Diameter Tolerance | -0.025 – 0 mm |
| Outside Diameter Tolerance | -0.040 – 0 mm |
| Width Tolerance | -0.25 – 0 mm |
| Enveloping Circle Diameter Fw | 218 mm |
| Inner Ring Chamfer | 4 min mm |
| Outer Ring Chamfer | 4 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 533 kN |
| Basic Static Load Rating C0 (kN) | 746 kN |
| Material | |
| Mass (kg) | 18.5 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |
NU1236 320 mm 180 mm 52 mm 218 mm Frequently Asked Questions about NU1236 Single Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Built for demanding industrial environments, the NU1236 Single Row Cylindrical Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
The Open Type engineered for NU1236 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
Absolutely. The CHG Bearing NU1236 Single Row Cylindrical Roller Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF NU1236, FAG NU1236, NSK NU1236. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
The CHG Bearing NU1236 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
