Manufactured by CHG Bearing, the NUP18/880/P5 is a precision Single Row Cylindrical Roller Bearings. Key dimensional parameters include a 880 mm bore diameter, a 950 mm outer diameter, and a 60 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NUP18/880/P5 - Single Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NUP18/880/P5 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Single Row Cylindrical Roller Bearing |
| Number of Rows | Single Row |
| Tolerance Class | P5 |
| Dimensions | |
| Bore Diameter (d) | 880 mm |
| Width (B) | 60 mm |
| Outer Diameter (D) | 950 mm |
| Bore Diameter Tolerance | -0.050 – 0 mm |
| Outside Diameter Tolerance | -0.040 – 0 mm |
| Width Tolerance | -1.0 – 0 mm |
| Enveloping Circle Diameter Fw | 898 mm |
| Inner Ring Chamfer | 2.5 min mm |
| Outer Ring Chamfer | 2.5 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 804 kN |
| Basic Static Load Rating C0 (kN) | 3010 kN |
| Material | |
| Mass (kg) | 39.4 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |

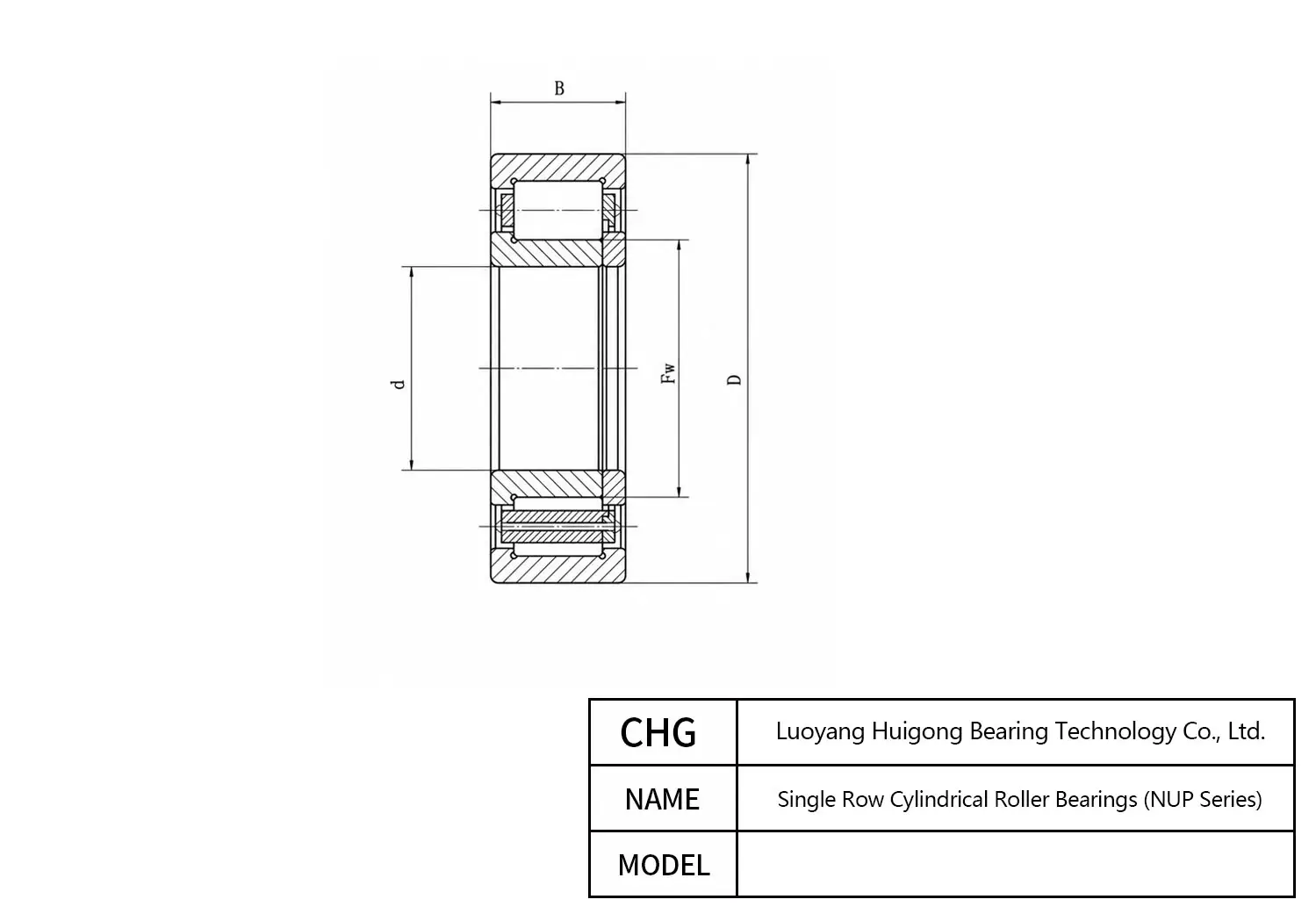

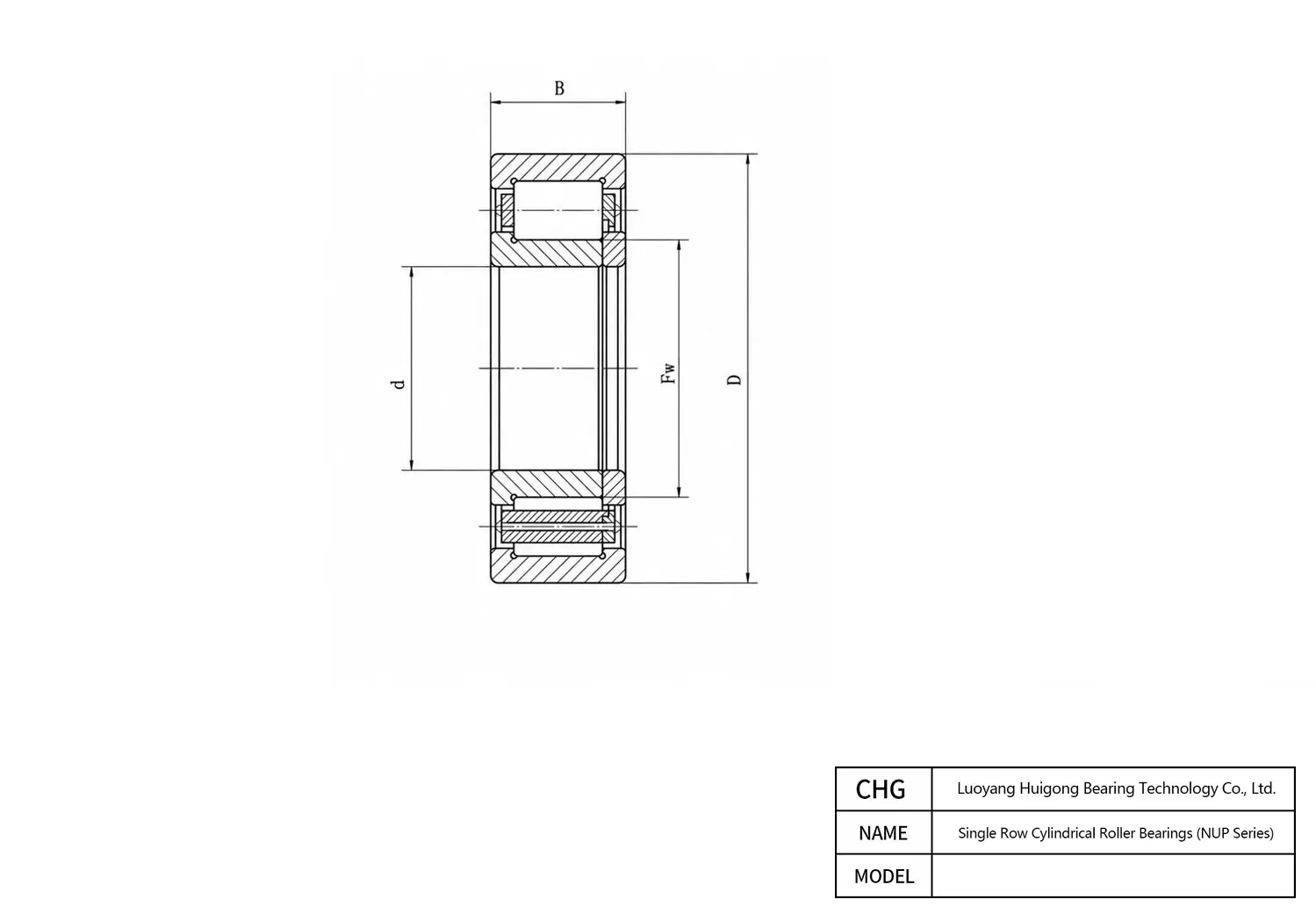

NUP18/880/P5 950 mm 880 mm 898 mm 60 mm Frequently Asked Questions about NUP18/880/P5 Single Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The Open Type engineered for NUP18/880/P5 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
Built for demanding industrial environments, the NUP18/880/P5 Single Row Cylindrical Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
In its sealed configuration (Open Type), CHG Bearing pre-charges NUP18/880/P5 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing NUP18/880/P5 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
