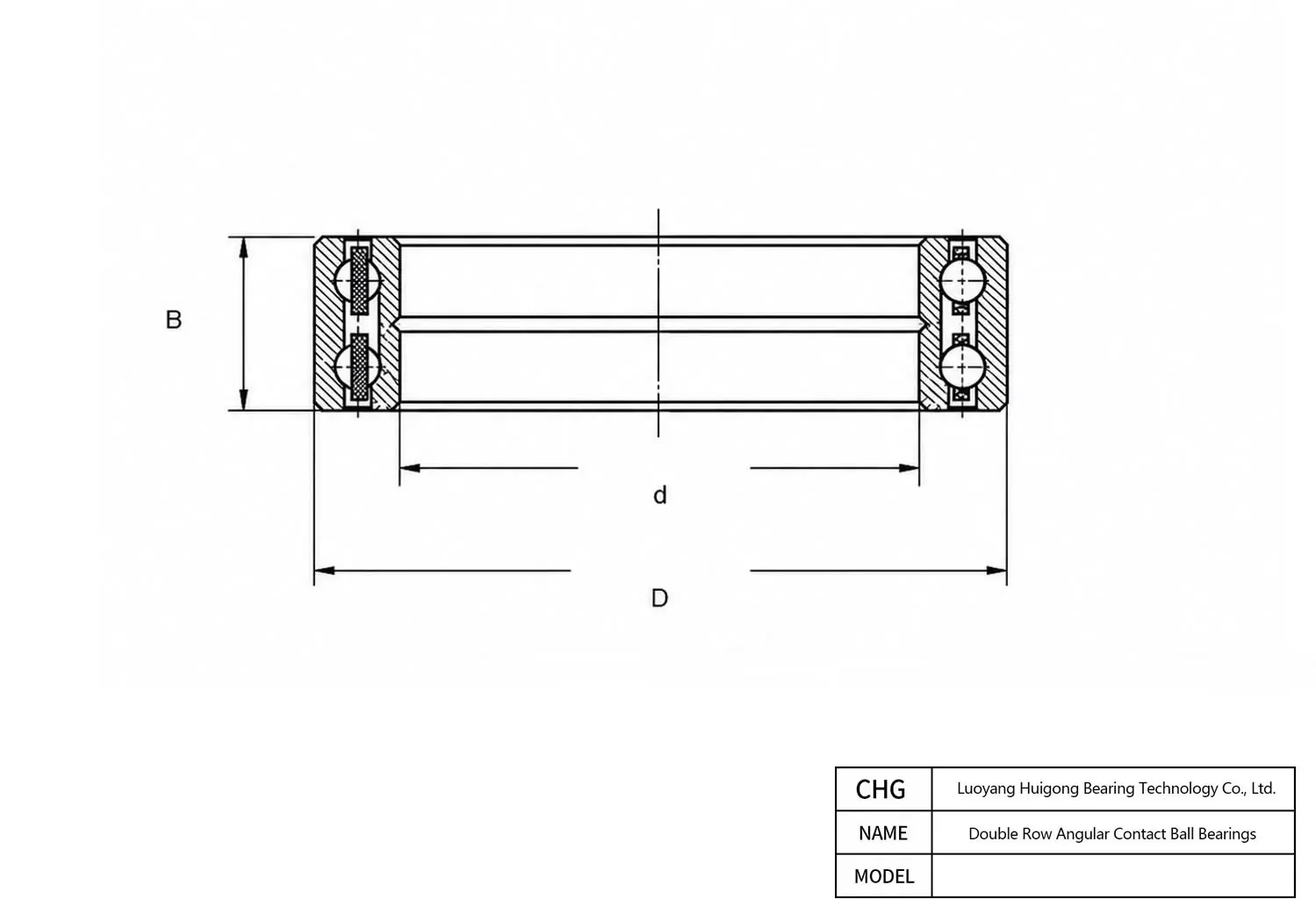

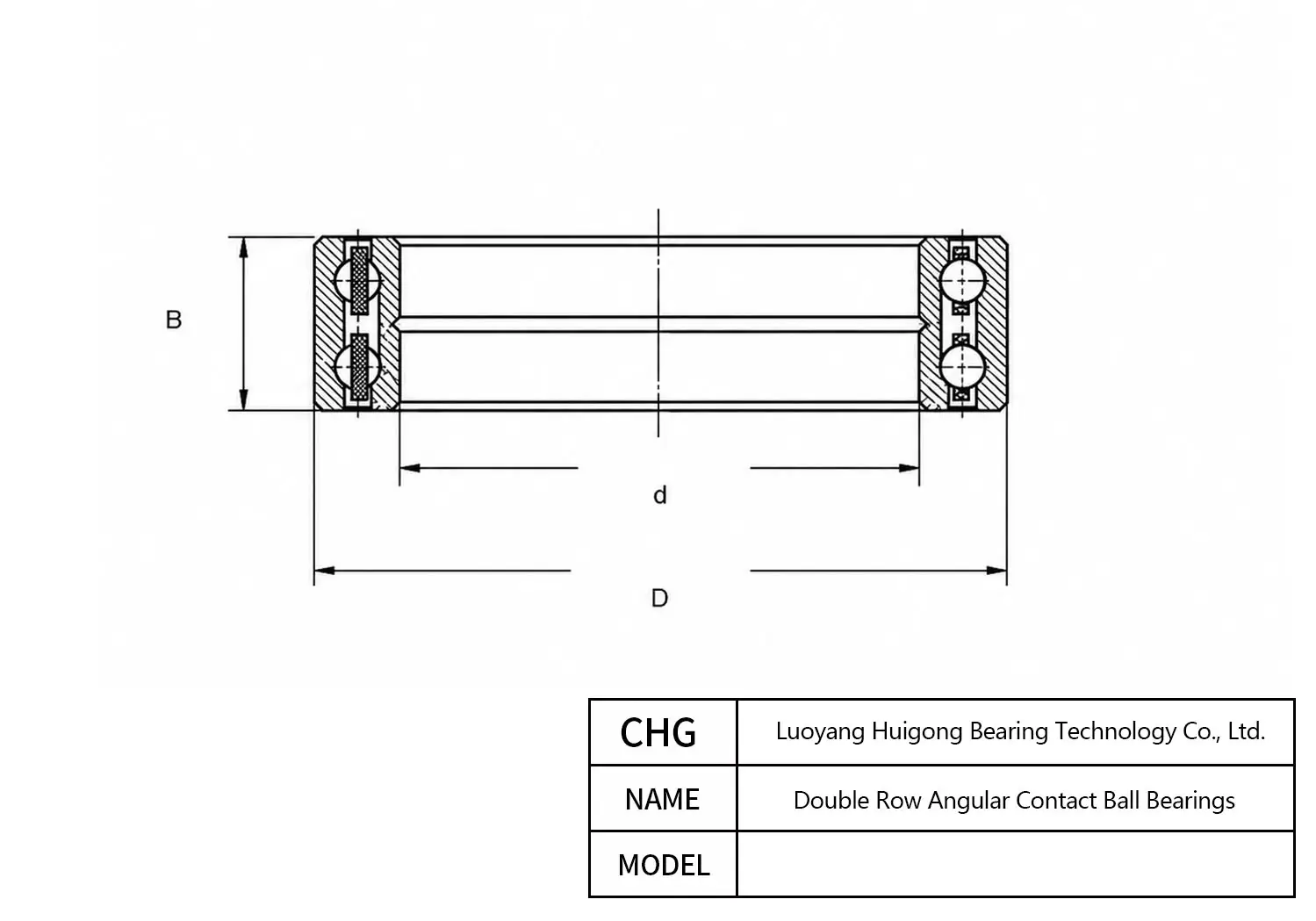

Manufactured by CHG Bearing, the 120BDZ1901E4 is a precision Double Row Angular Contact Ball Bearings. Key dimensional parameters include a 120 mm bore diameter, a 190 mm outer diameter, and a 66 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

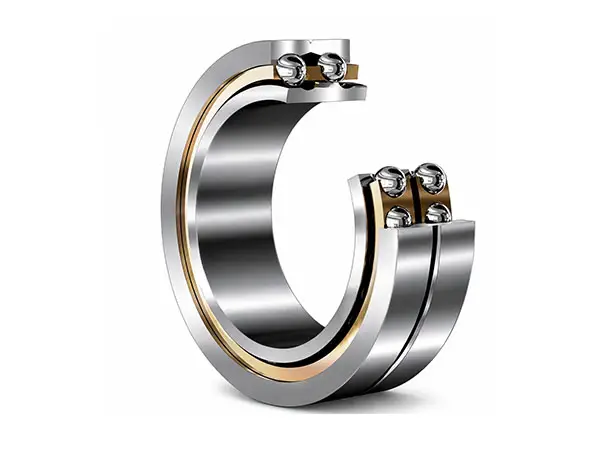

120BDZ1901E4 - Double Row Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 120BDZ1901E4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Double Row Angular Contact Ball Bearing |
| Number of Rows | Double Row |
| Load Direction | Combined |
| Dimensions | |
| Bore Diameter (d) | 120 mm |
| Width (B) | 66 mm |
| Outer Diameter (D) | 190 mm |
| Minimum Chamfer Dimension rmin | 1 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 111 kN |
| Basic Static Load Rating C0 (kN) | 224 kN |
| Material | |
| Mass (kg) | 6.5 kg |
| Cage Material | Brass |
120BDZ1901E4 190 mm 120 mm 66 mm Frequently Asked Questions about 120BDZ1901E4 Double Row Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Sourcing 120BDZ1901E4 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Double Row Angular Contact Ball Bearings.
Beyond standard alloy steel, CHG Bearing can customize the 120BDZ1901E4 Double Row Angular Contact Ball Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 120BDZ1901E4 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
Absolutely. The CHG Bearing 120BDZ1901E4 Double Row Angular Contact Ball Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 120BDZ1901E4, FAG 120BDZ1901E4, NSK 120BDZ1901E4. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
