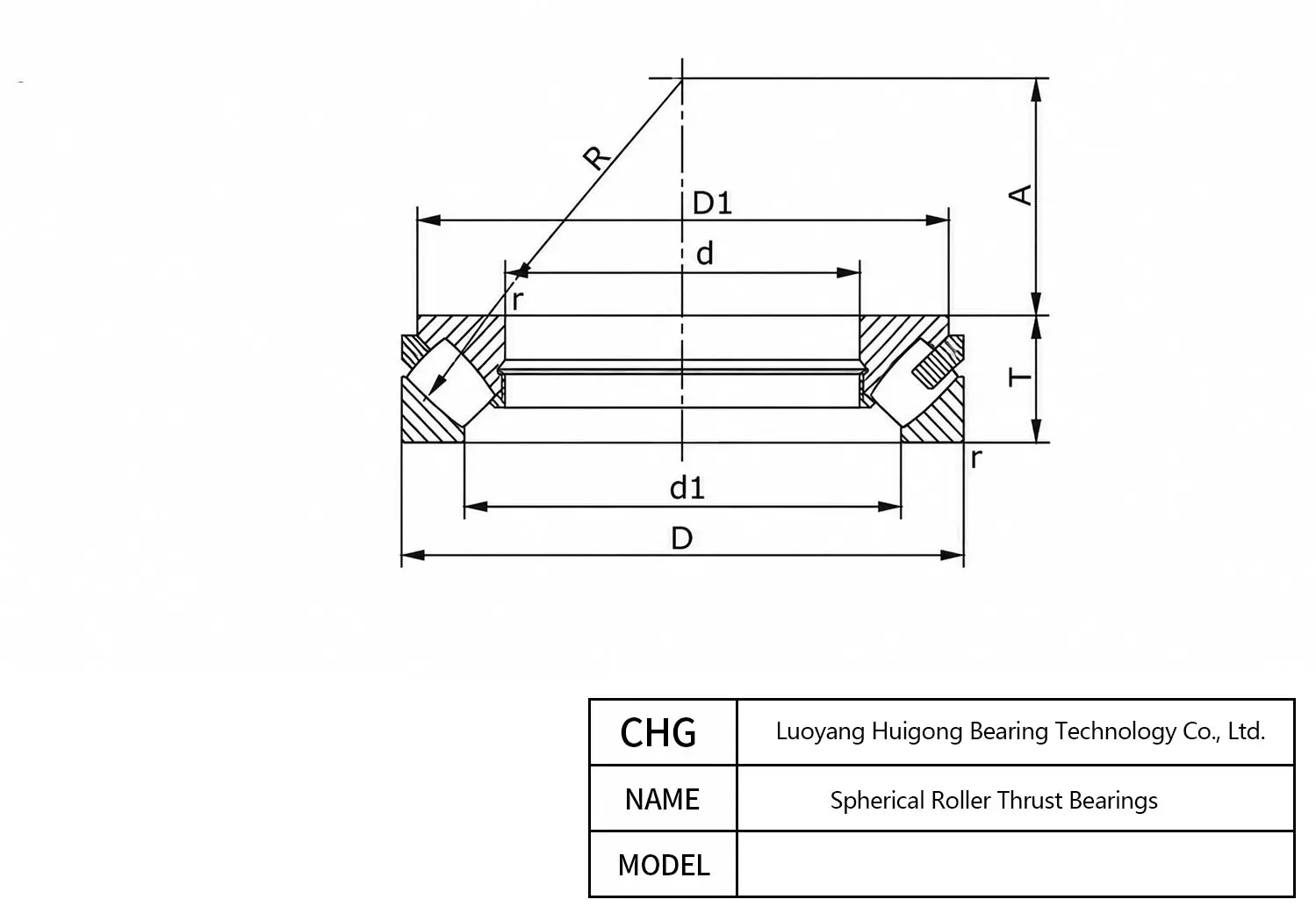

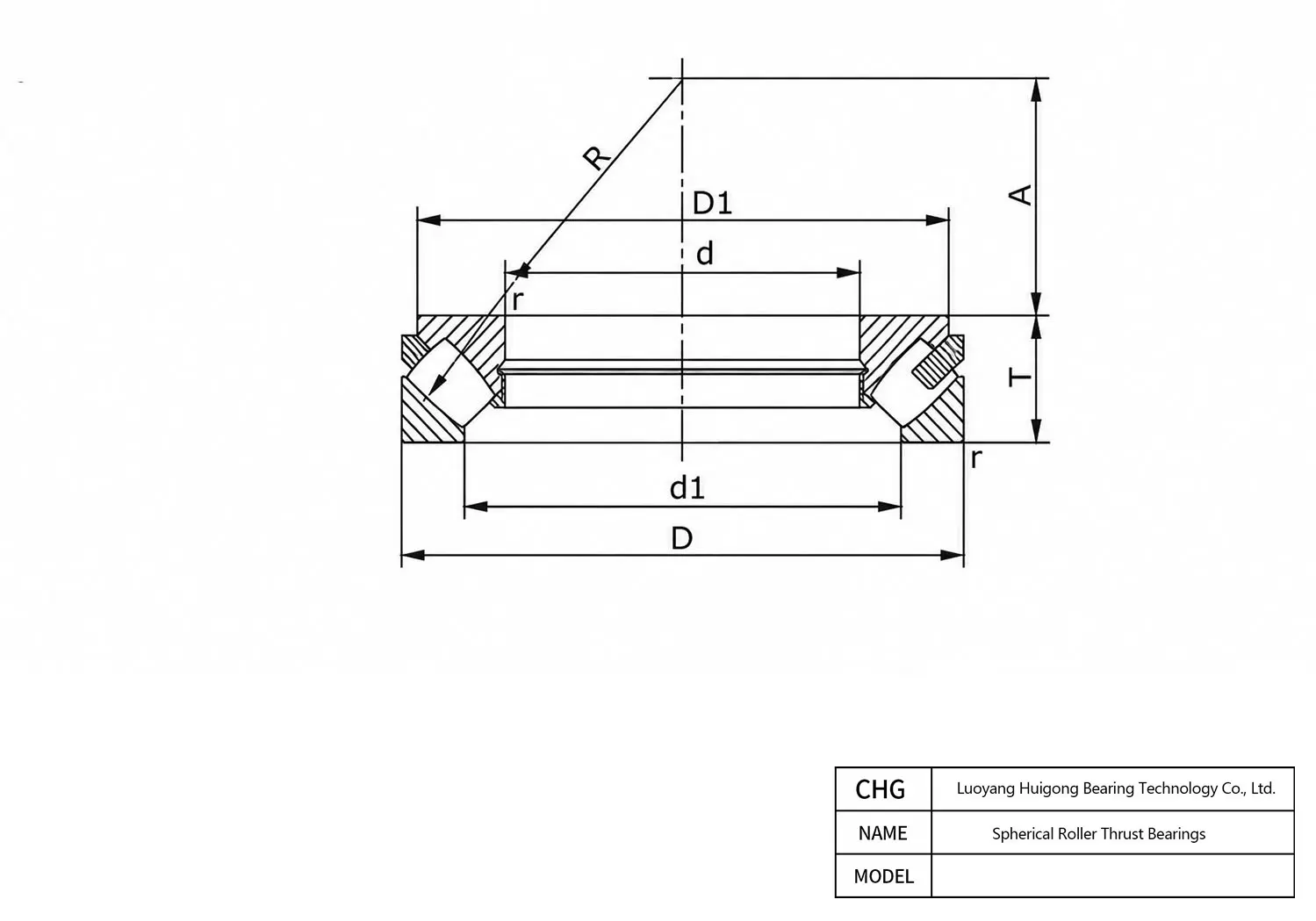

Manufactured by CHG Bearing, the 29338 is a precision Spherical Roller Thrust Bearings. Key dimensional parameters include a 190 mm bore diameter, a 246 mm outer diameter, and a 320 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

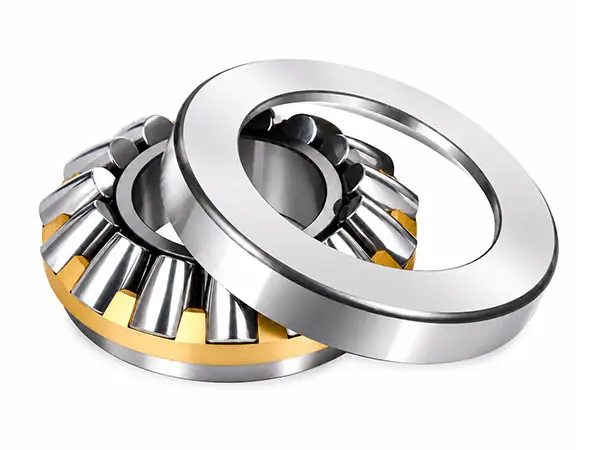

29338 - Spherical Roller Thrust Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 29338 |
| Brand | CHG® |
| Construction | Single Direction |
| Characteristics | |
| Bearing Type | Spherical Roller Thrust Bearing |
| Load Direction | Axial |
| Limiting Speed — Grease (r/min) | 750 r/min |
| Limiting Speed — Oil (r/min) | 1000 r/min |
| Dimensions | |
| Bore Diameter (d) | 190 mm |
| Width (B) | 320 mm |
| Outer Diameter (D) | 246 mm |
| Chamfer Dimension r (min.) | 4 mm |
| Shaft Washer Outside Diameter D1 (max.) | 308 mm |
| Dimension A | 110 mm |
| Bearing Height T | 78 mm |
| Performance | |
| Basic Dynamic Axial Load Rating Ca (kN) | 1260 kN |
| Basic Static Axial Load Rating C0a (kN) | 4275 kN |
| Material | |
| Mass (kg) | 23.5 kg |
29338 78 mm 110 mm 308 mm 190 mm 246 mm Frequently Asked Questions about 29338 Spherical Roller Thrust Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Model 29338 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 190 mm) and steep thermal gradients between inner and outer rings.
The CHG Bearing 29338 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
The Open Type engineered for 29338 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
When fitting 29338 over a 190 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
