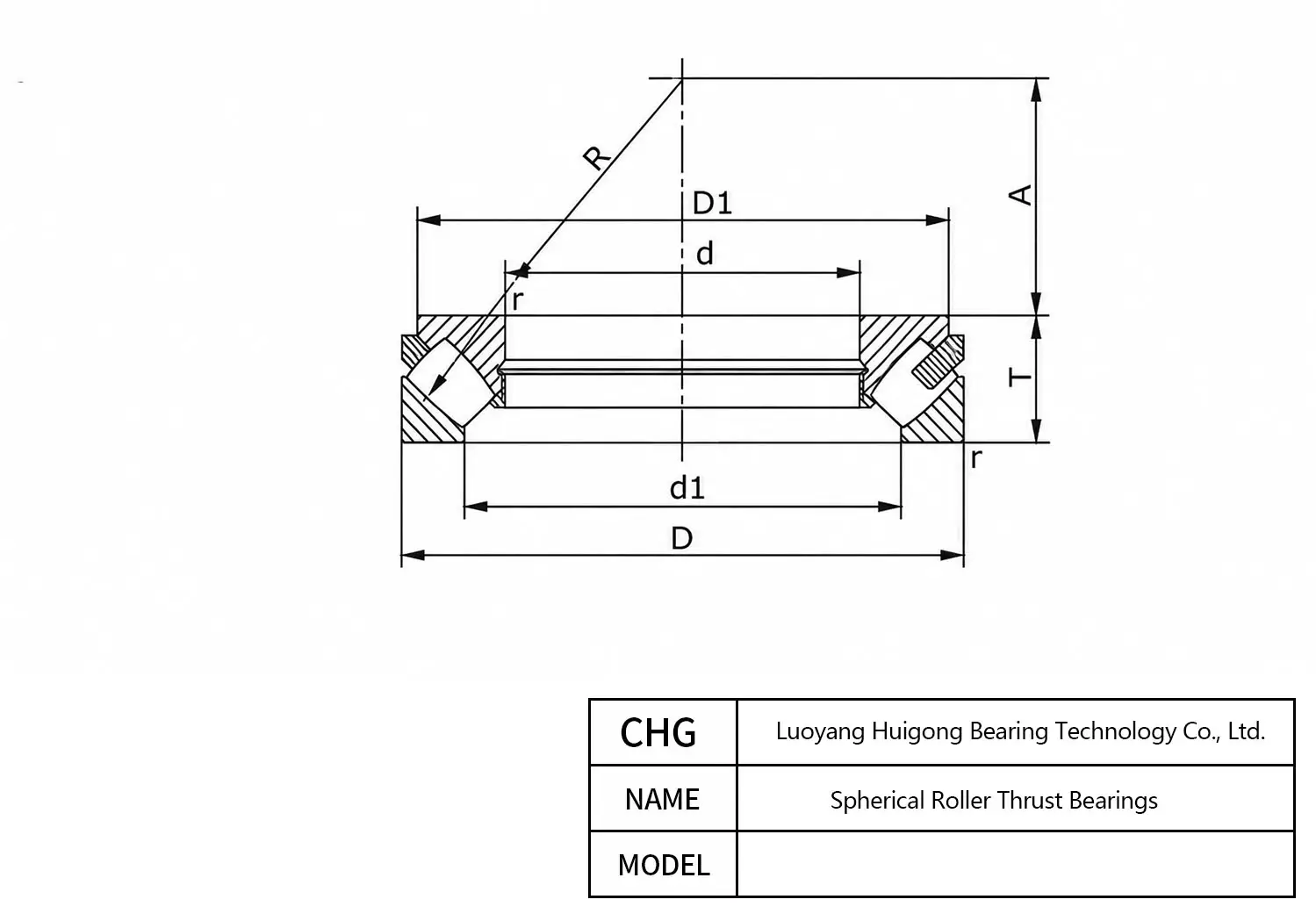

Manufactured by CHG Bearing, the 29340 is a precision Spherical Roller Thrust Bearings. Key dimensional parameters include a 200 mm bore diameter, a 261 mm outer diameter, and a 340 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

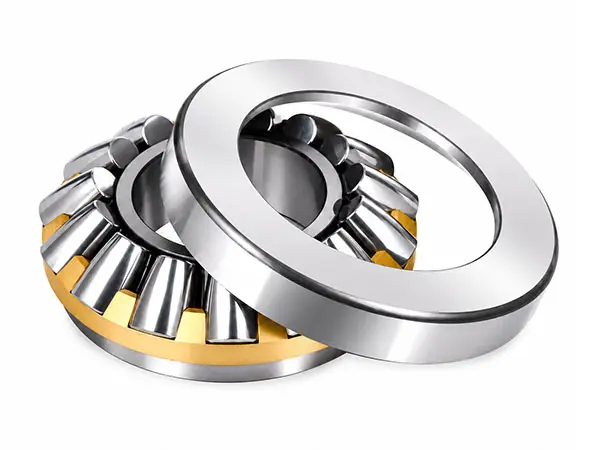

29340 - Spherical Roller Thrust Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 29340 |
| Brand | CHG® |
| Construction | Single Direction |
| Characteristics | |
| Bearing Type | Spherical Roller Thrust Bearing |
| Load Direction | Axial |
| Limiting Speed — Grease (r/min) | 700 r/min |
| Limiting Speed — Oil (r/min) | 950 r/min |

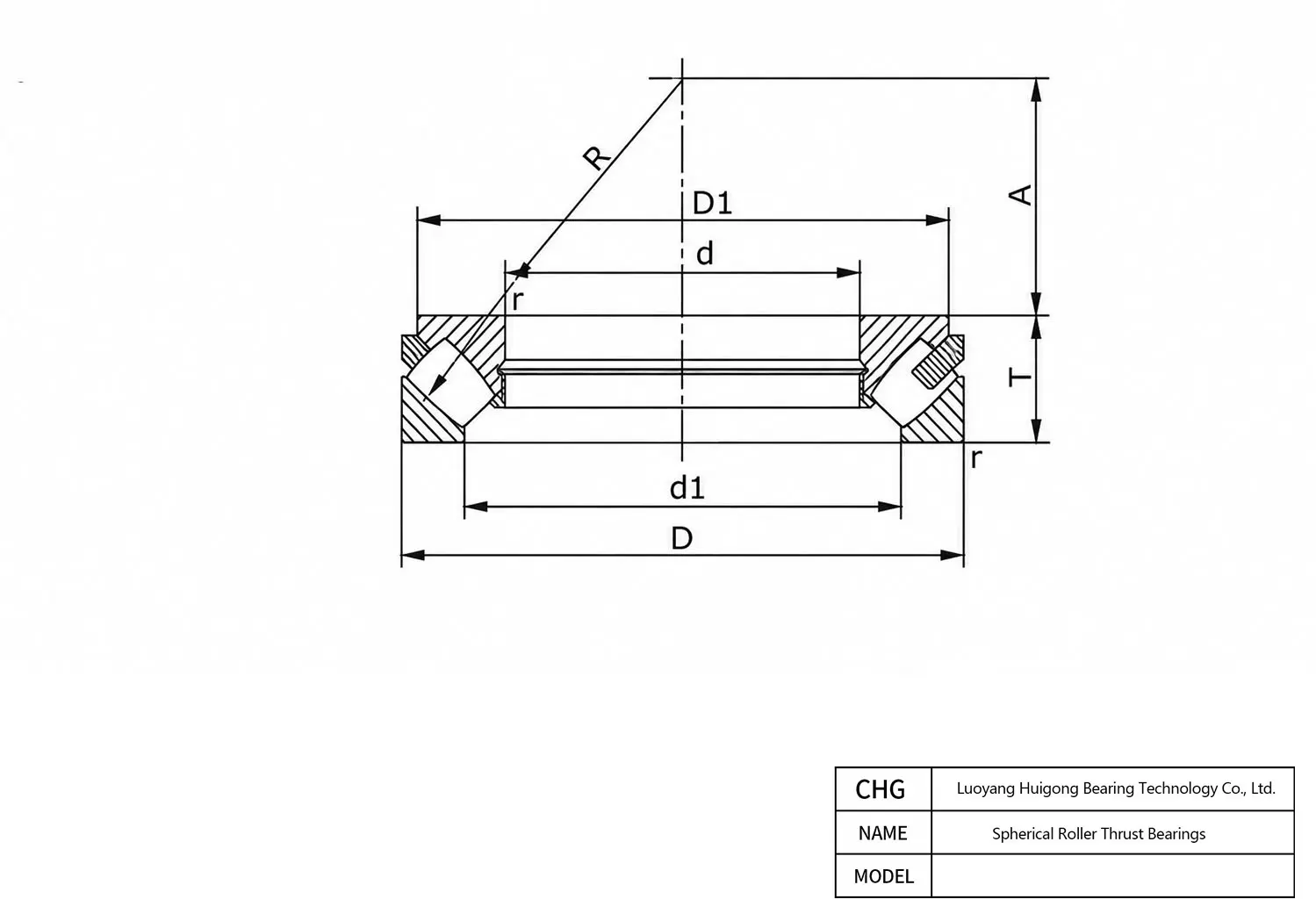

| Dimensions | |
| Bore Diameter (d) | 200 mm |
| Width (B) | 340 mm |
| Outer Diameter (D) | 261 mm |
| Chamfer Dimension r (min.) | 4 mm |
| Shaft Washer Outside Diameter D1 (max.) | 325 mm |
| Dimension A | 116 mm |
| Bearing Height T | 85 mm |
| Performance | |
| Basic Dynamic Axial Load Rating Ca (kN) | 1450 kN |
| Basic Static Axial Load Rating C0a (kN) | 4950 kN |
| Material | |
| Mass (kg) | 29.5 kg |
29340 85 mm 116 mm 325 mm 200 mm 261 mm Frequently Asked Questions about 29340 Spherical Roller Thrust Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The Open Type engineered for 29340 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
The CHG Bearing 29340 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
Model 29340 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 200 mm) and steep thermal gradients between inner and outer rings.
Built for demanding industrial environments, the 29340 Spherical Roller Thrust Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
