Manufactured by CHG Bearing, the 51332 is a precision Thrust Ball Bearings. Key dimensional parameters include a 160 mm bore diameter, a 270 mm outer diameter, and a mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

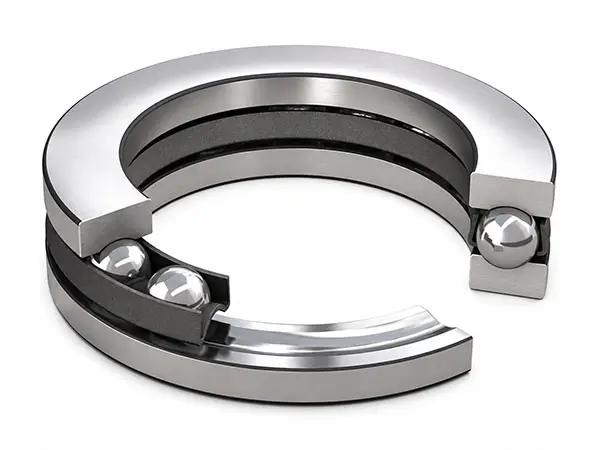

51332 - Thrust Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 51332 |
| Brand | CHG® |
| Construction | Angular Contact Thrust Ball Bearing |
| Type | Double-Direction Angular Contact Thrust Ball Bearing |
| Characteristics | |
| Load Direction | Axial — Double Direction |
| Limiting Speed — Grease (r/min) | 1800 r/min |
| Limiting Speed — Oil (r/min) | 2400 r/min |

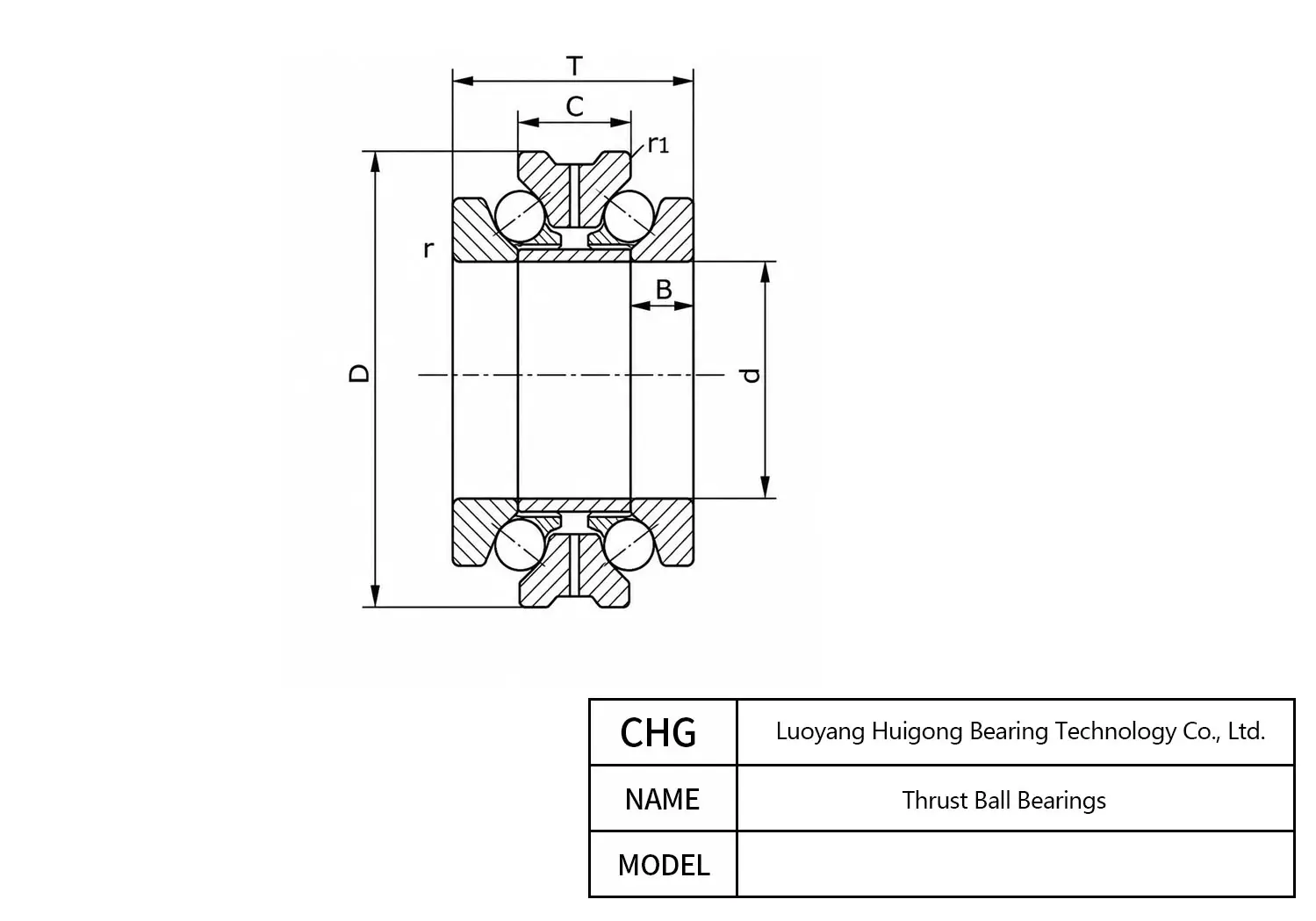

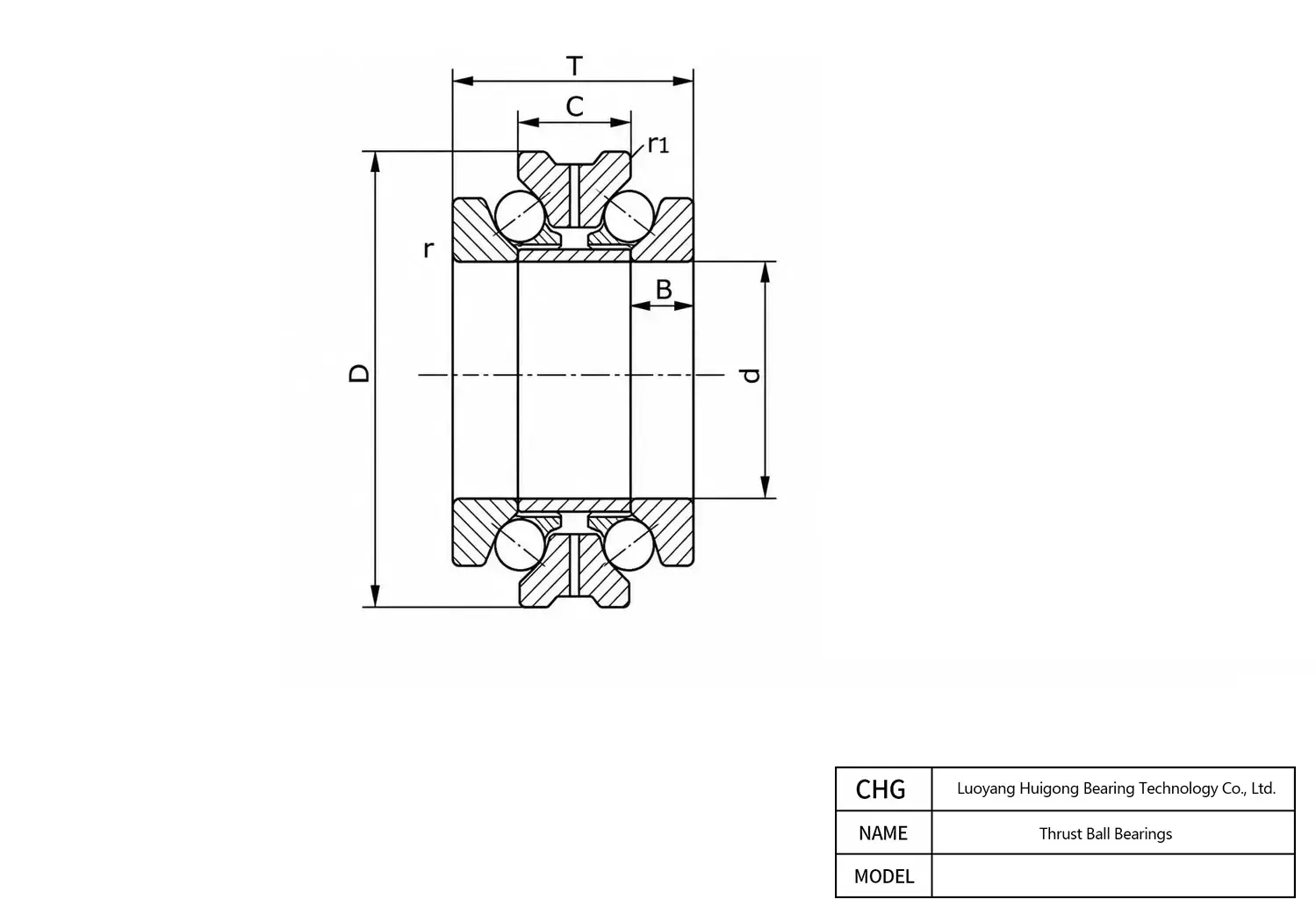

| Dimensions | |
| Bore Diameter (d) | 160 mm |
| Outer Diameter (D) | 270 mm |
| Contact Angle α (°) | N/A ° |
| Chamfer Dimension r (min.) | 2 mm |
| Dimension A | N/A mm |
| Bearing Height T | 72 mm |
| Dimension d1 | N/A mm |
| Dimension D12 | N/A mm |
| Dimension C | 36 mm |
| Dimension B | 18 mm |
| Chamfer Dimension r1 (min.) | 1 mm |
| Performance | |
| Basic Dynamic Axial Load Rating Ca (kN) | 116 kN |
| Basic Static Axial Load Rating C0a (kN) | 465 kN |
| Material | |
| Mass (kg) | 6.6 kg |
51332 270 mm 160 mm 72 mm Frequently Asked Questions about 51332 Thrust Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The CHG Bearing 51332 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
Absolutely. The CHG Bearing 51332 Thrust Ball Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 51332, FAG 51332, NSK 51332. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for 51332. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
When fitting 51332 over a 160 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
