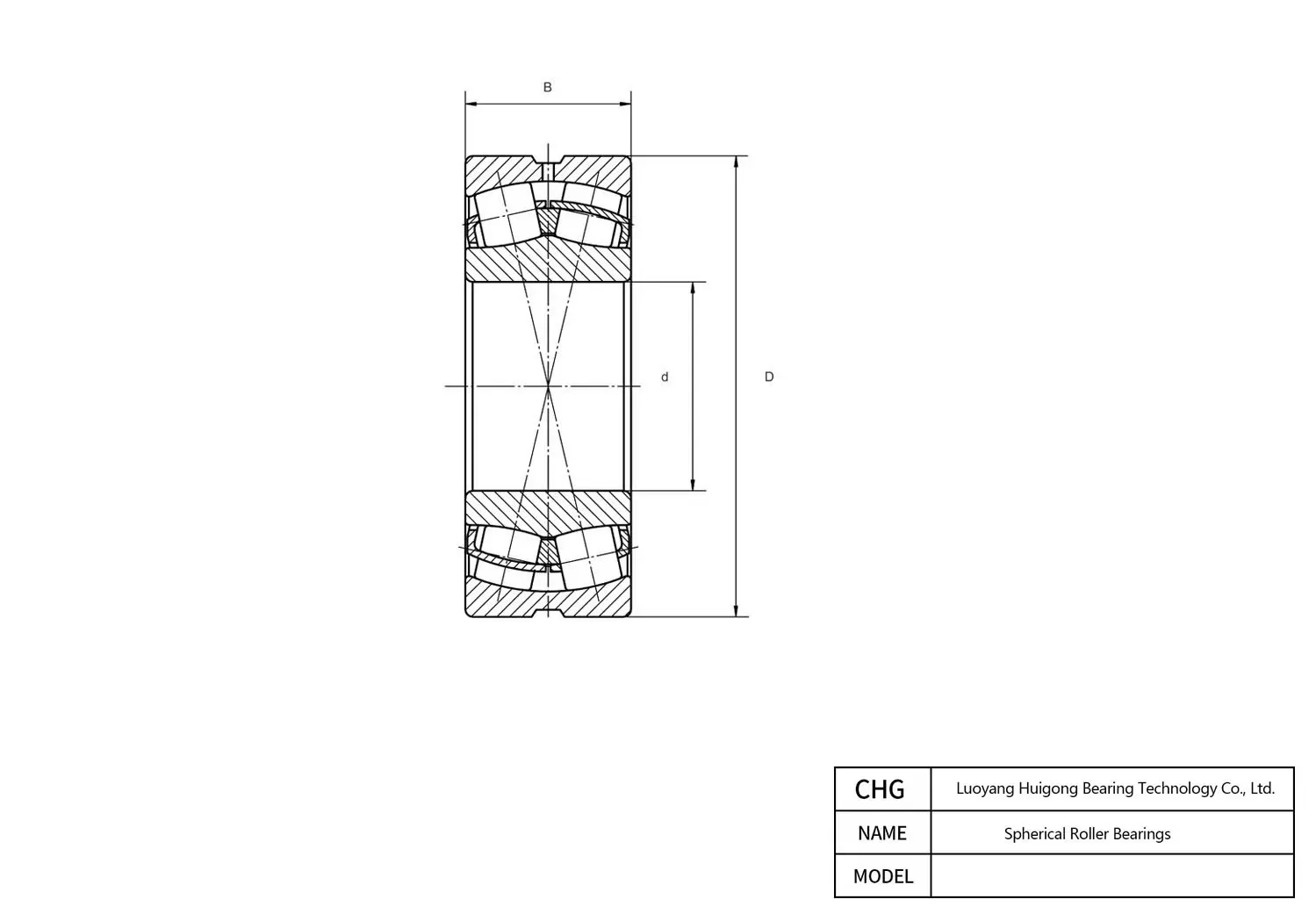

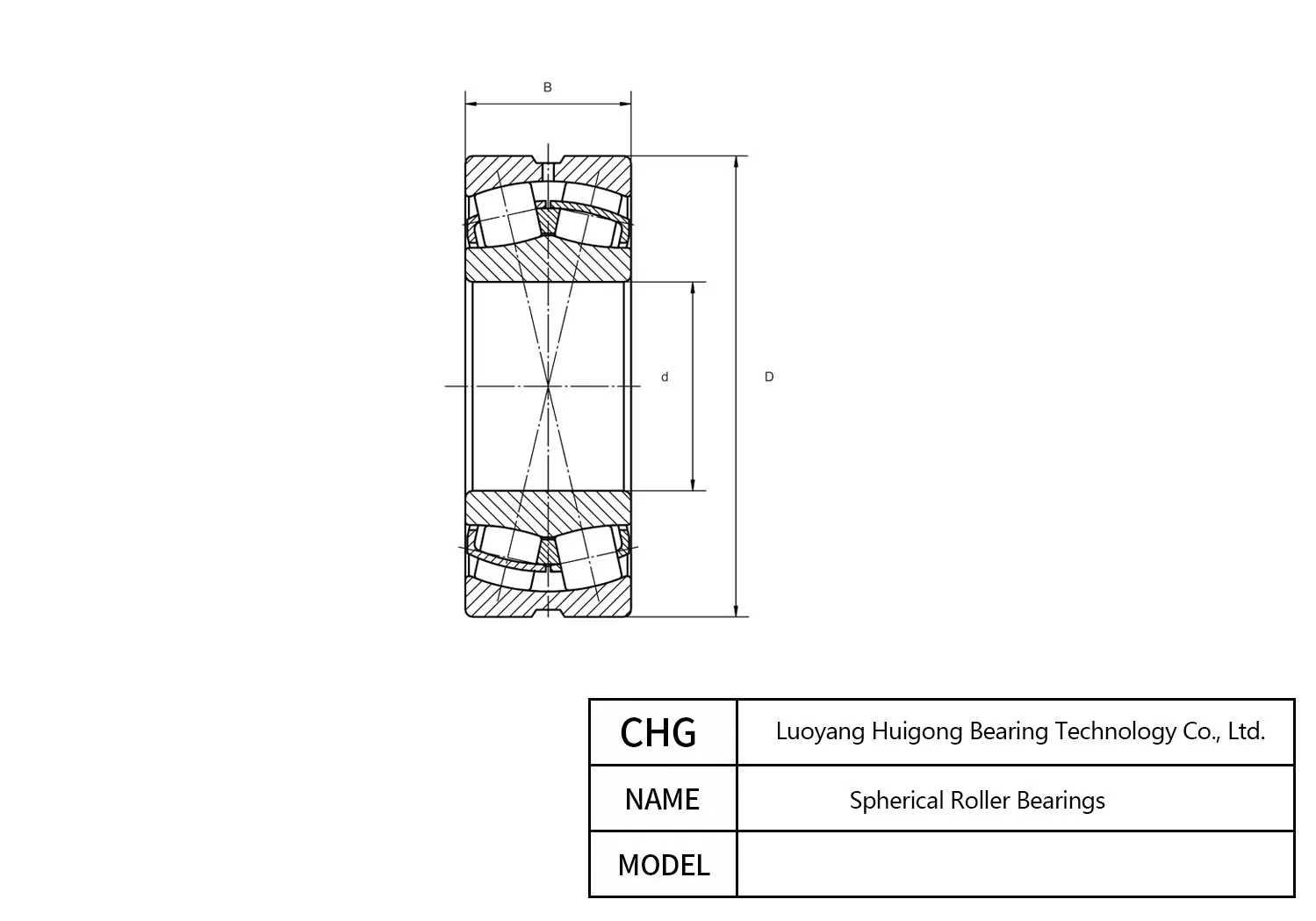

Manufactured by CHG Bearing, the 23044XCA is a precision Spherical Roller Bearings. Key dimensional parameters include a 219.8 mm bore diameter, a 340 mm outer diameter, and a 90 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
23044XCA - Spherical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 23044XCA |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Spherical Roller Bearing |
| Dimensions | |
| Bore Diameter (d) | 219.8 mm |
| Width (B) | 90 mm |
| Outer Diameter (D) | 340 mm |
| Minimum Chamfer r | 3 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 1050 kN |
| Basic Static Load Rating C0 (kN) | 1860 kN |
| Material | |
| Mass (kg) | 30.9 kg |
23044XCA 340 mm 219.8 mm 90 mm Frequently Asked Questions about 23044XCA Spherical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Beyond standard alloy steel, CHG Bearing can customize the 23044XCA Spherical Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
To extend the trouble-free lifespan of CHG Bearing 23044XCA, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
Absolutely. The CHG Bearing 23044XCA Spherical Roller Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 23044XCA, FAG 23044XCA, NSK 23044XCA. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Sourcing 23044XCA directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Spherical Roller Bearings.
