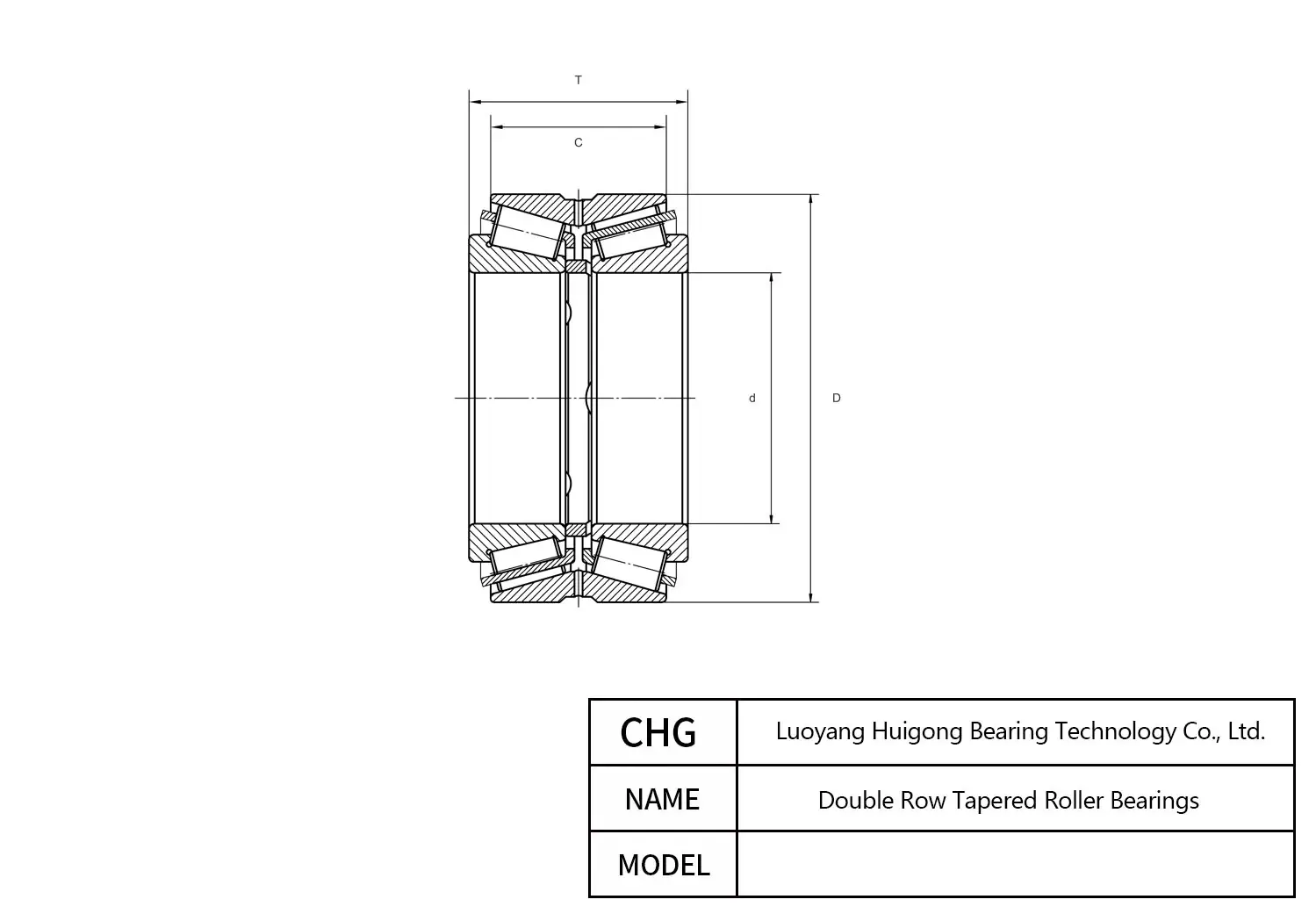

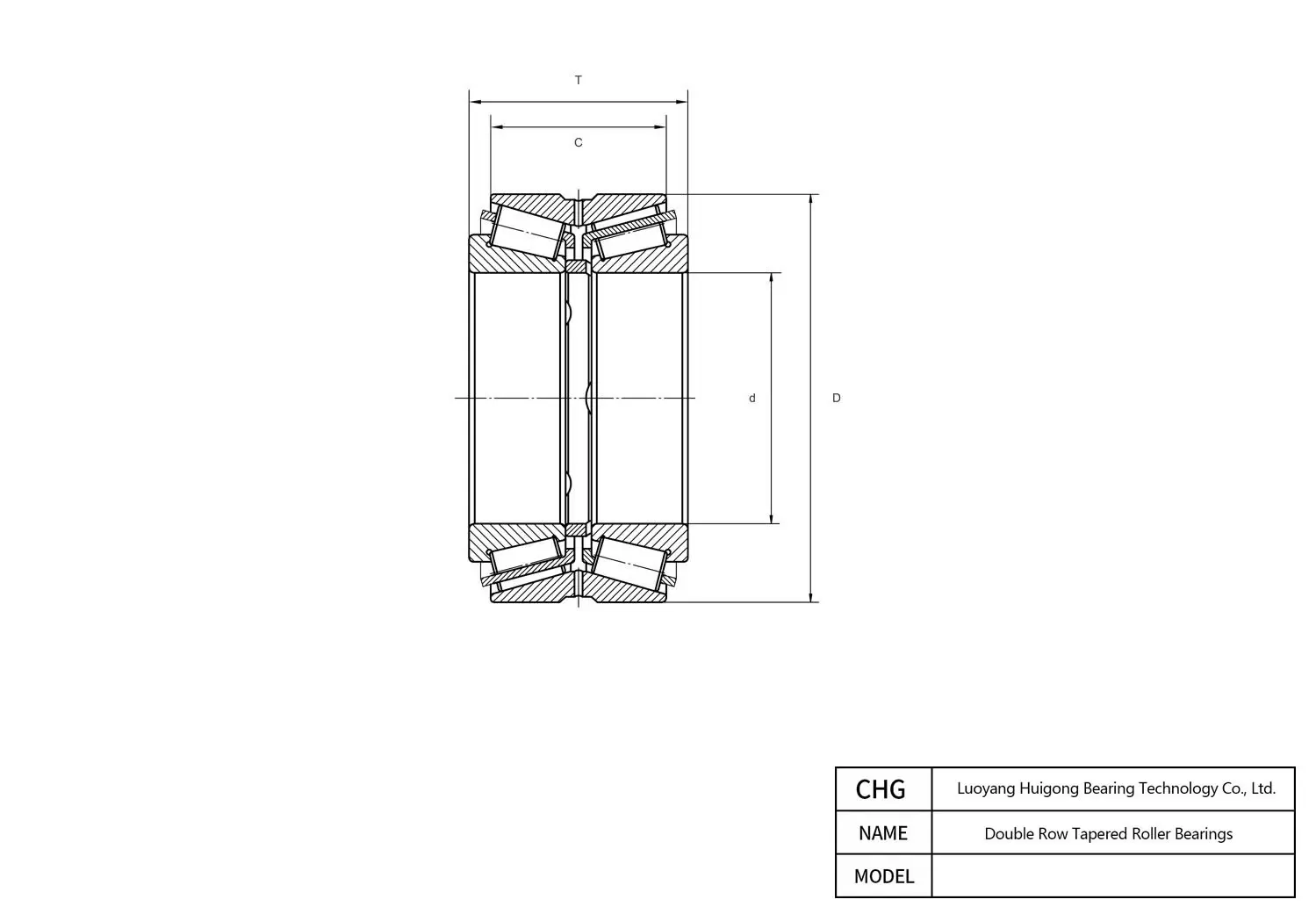

Manufactured by CHG Bearing, the 46292 is a precision Double Row Tapered Roller Bearings. Key dimensional parameters include a 460 mm bore diameter, a 680 mm outer diameter, and a 163 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
46292 - Double Row Tapered Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 46292 |
| Brand | CHG® |
| Bearing | Double Row Tapered Roller Bearing |
| Characteristics | |
| Series | 350000 |
| Number of Rows | Double Row |
| Tolerance Class | Class 4 |
| Dimensions | |
| Bore Diameter (d) | 460 mm |
| Width (B) | 163 mm |
| Outer Diameter (D) | 680 mm |
| Bore Diameter Tolerance | 0 – +0.025 mm |
| Outside Diameter Tolerance | 0 – +0.051 mm |
| Inner Ring Chamfer | 9.5 mm |
| Outer Ring Chamfer | 1.6 mm |
| Inner Ring Assembly Width Tolerance | -0.508 – +0.711 mm |
| Outer Ring Assembly Width | 136.525 mm |
| Outer Ring Assembly Width Tolerance | -0.508 – +0.711 mm |
| Shaft Abutment Diameter | 189.1 mm |
| Housing Abutment Diameter | 334 mm |
| Lubrication Hole Diameter | 6 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 1610 kN |
| Basic Static Load Rating C0 (kN) | 2920 kN |
| Material | |
| Mass (kg) | 95.8 kg |
| Ring Material | Bearing Steel |
| Cage Material | 08Al Steel / Grade 10 Steel |
| Lubrication Groove Width | 12 mm |
| Roller Material | Bearing Steel |
46292 680 mm 460 mm Frequently Asked Questions about 46292 Double Row Tapered Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Each 46292 produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (460 mm bore side) ensures perfect planar contact without edge binding.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for 46292. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
Built for demanding industrial environments, the 46292 Double Row Tapered Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
To safeguard CHG Bearing 46292 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (460 mm x 680 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
