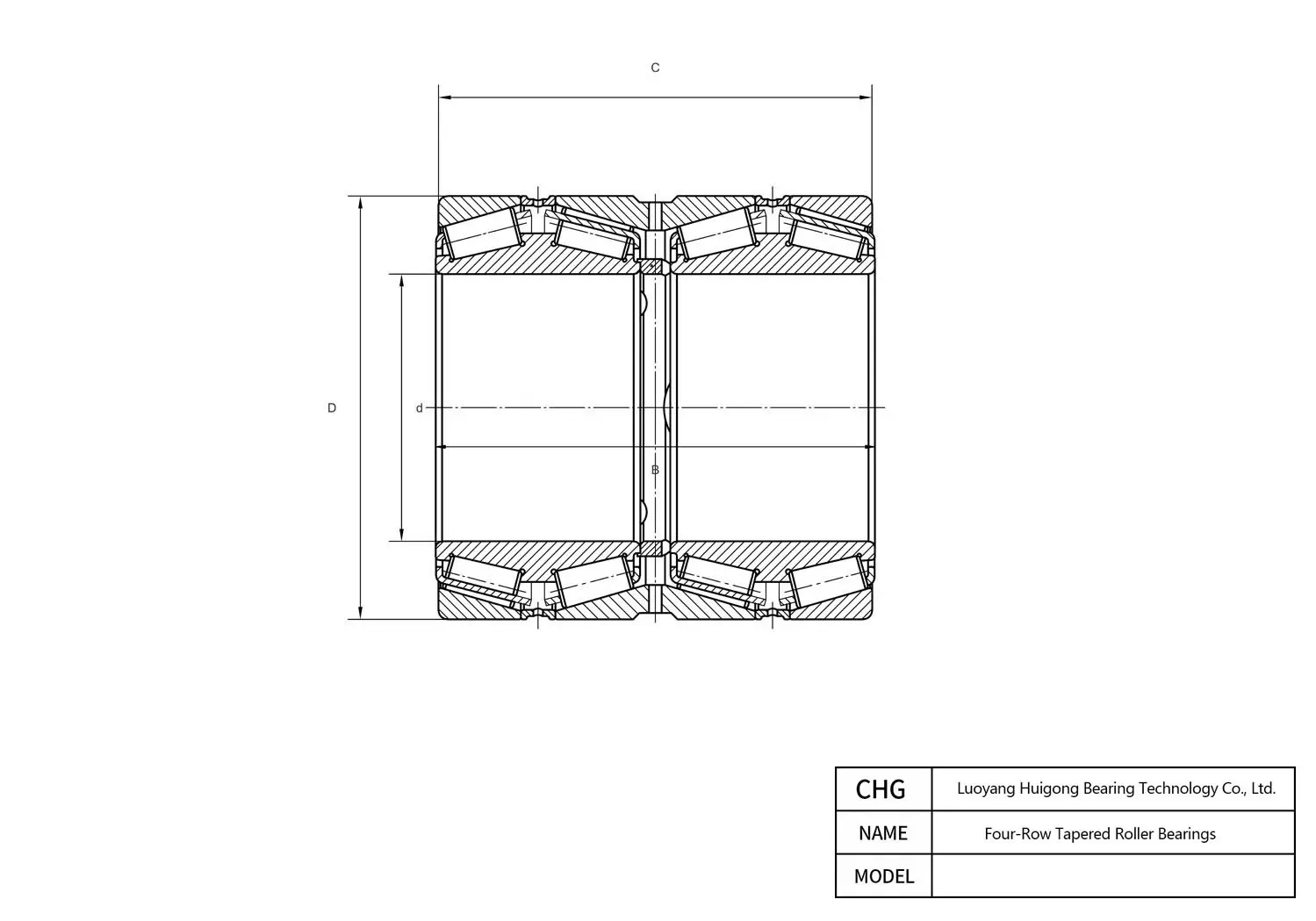

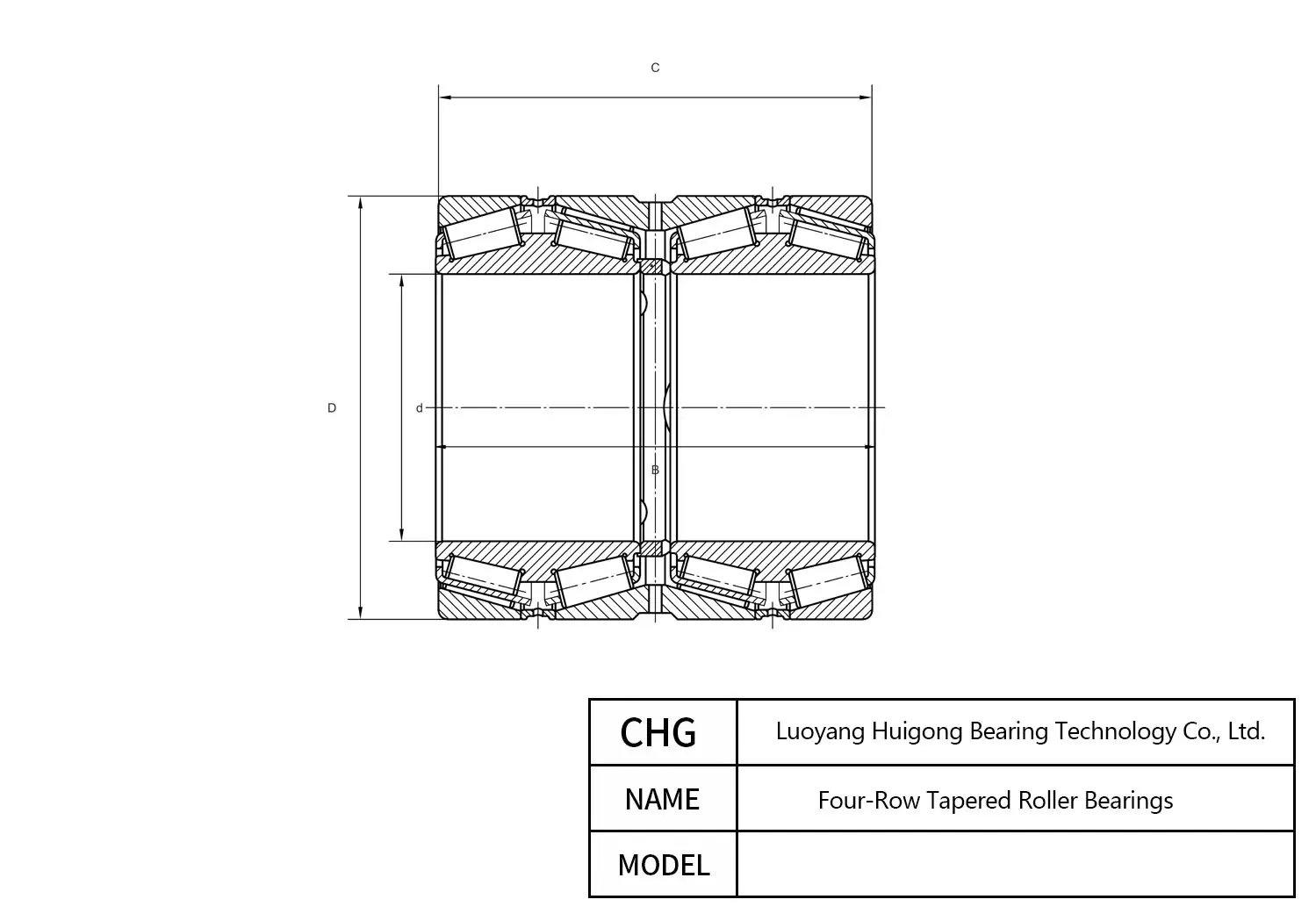

Manufactured by CHG Bearing, the 170KV895 is a precision Four-Row Tapered Roller Bearings. Key dimensional parameters include a 170 mm bore diameter, a 240 mm outer diameter, and a 175 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

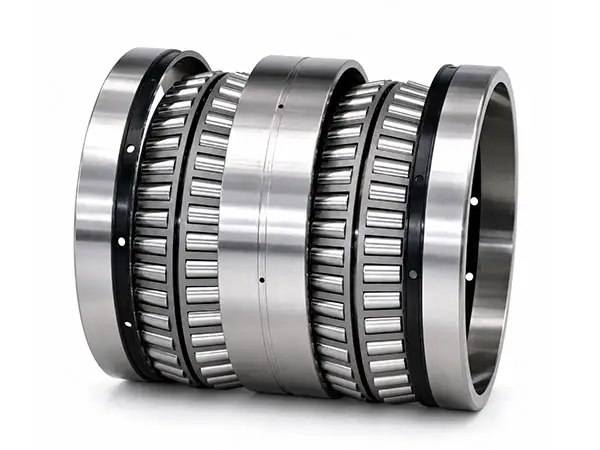

170KV895 - Four-Row Tapered Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 170KV895 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Tapered Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 170 mm |
| Width (B) | 175 mm |
| Outer Diameter (D) | 240 mm |
| Bore Diameter Tolerance | -0.025 – 0 mm |
| Outside Diameter Tolerance | -0.03 – 0 mm |
| Inner Ring Chamfer | 3 min mm |
| Outer Ring Chamfer | 2.5 min mm |
| Inner Ring Assembly Width Tolerance | -1 – +1 mm |
| Outer Ring Assembly Width | 175 mm |
| Outer Ring Assembly Width Tolerance | -1 – +1 mm |
| Shaft Abutment Diameter | 186 mm |
| Housing Abutment Diameter | 217 mm |
| Lubrication Hole Diameter | 4 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 924 kN |
| Basic Static Load Rating C0 (kN) | 2290 kN |
| Material | |
| Mass (kg) | 23.6 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Grade 45 Steel / 08Al Steel / Grade 10 Steel |
| Lubrication Groove Width | 9.5 mm |
170KV895 240 mm 170 mm 175 mm Frequently Asked Questions about 170KV895 Four-Row Tapered Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Model 170KV895 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 170 mm) and steep thermal gradients between inner and outer rings.
The CHG Bearing 170KV895 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
Engineered according to international ISO boundary plans, CHG Bearing supplies 170KV895 with a precision bore diameter (d) of 170 mm, an outside diameter (D) of 240 mm, and a nominal ring width (B) of 175 mm. This configuration yields an effective cross-sectional wall thickness of 35.0 mm and an envelope ratio (D/d) of 1.41, delivering compact rigidity for OEM machinery housings.
