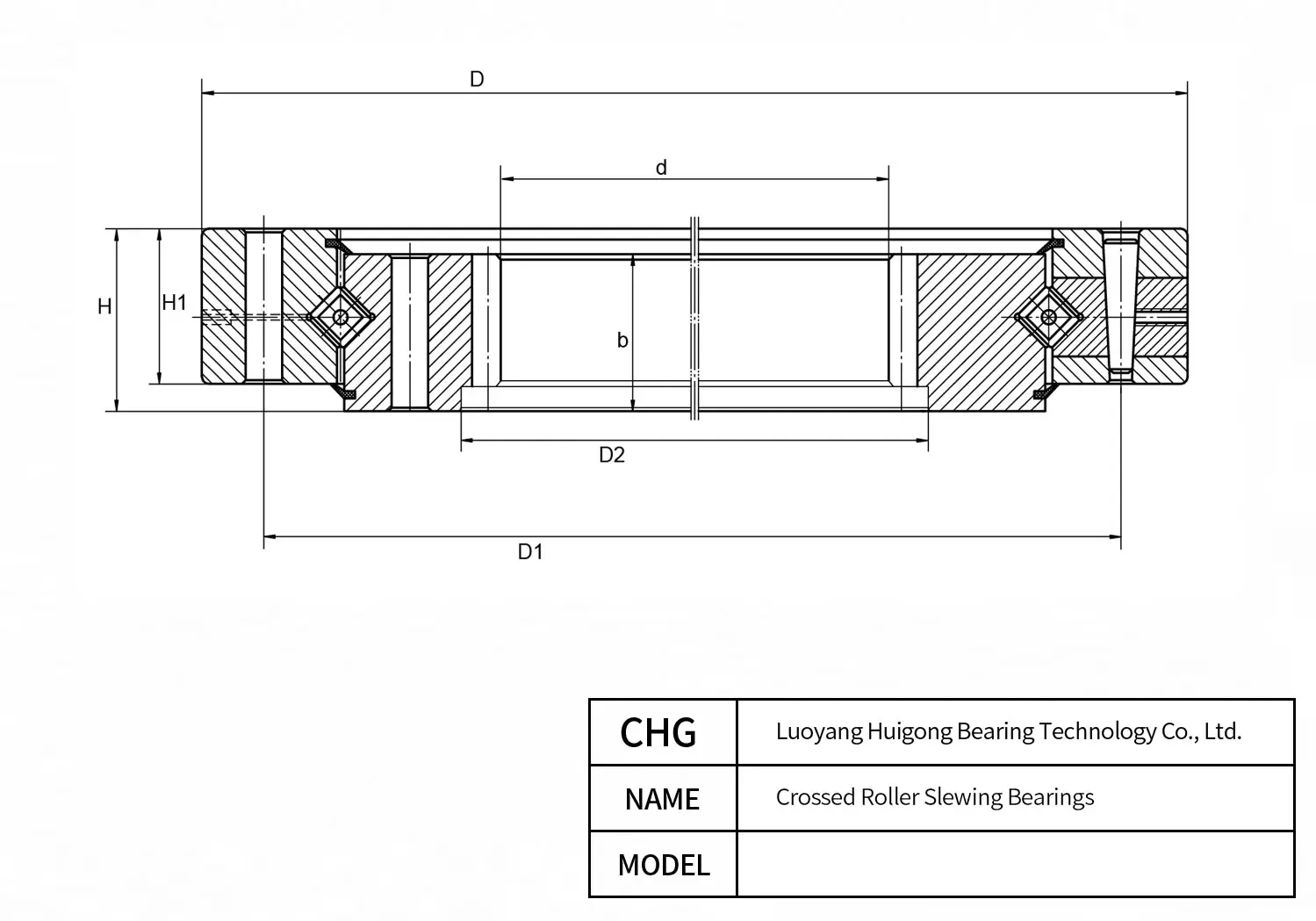

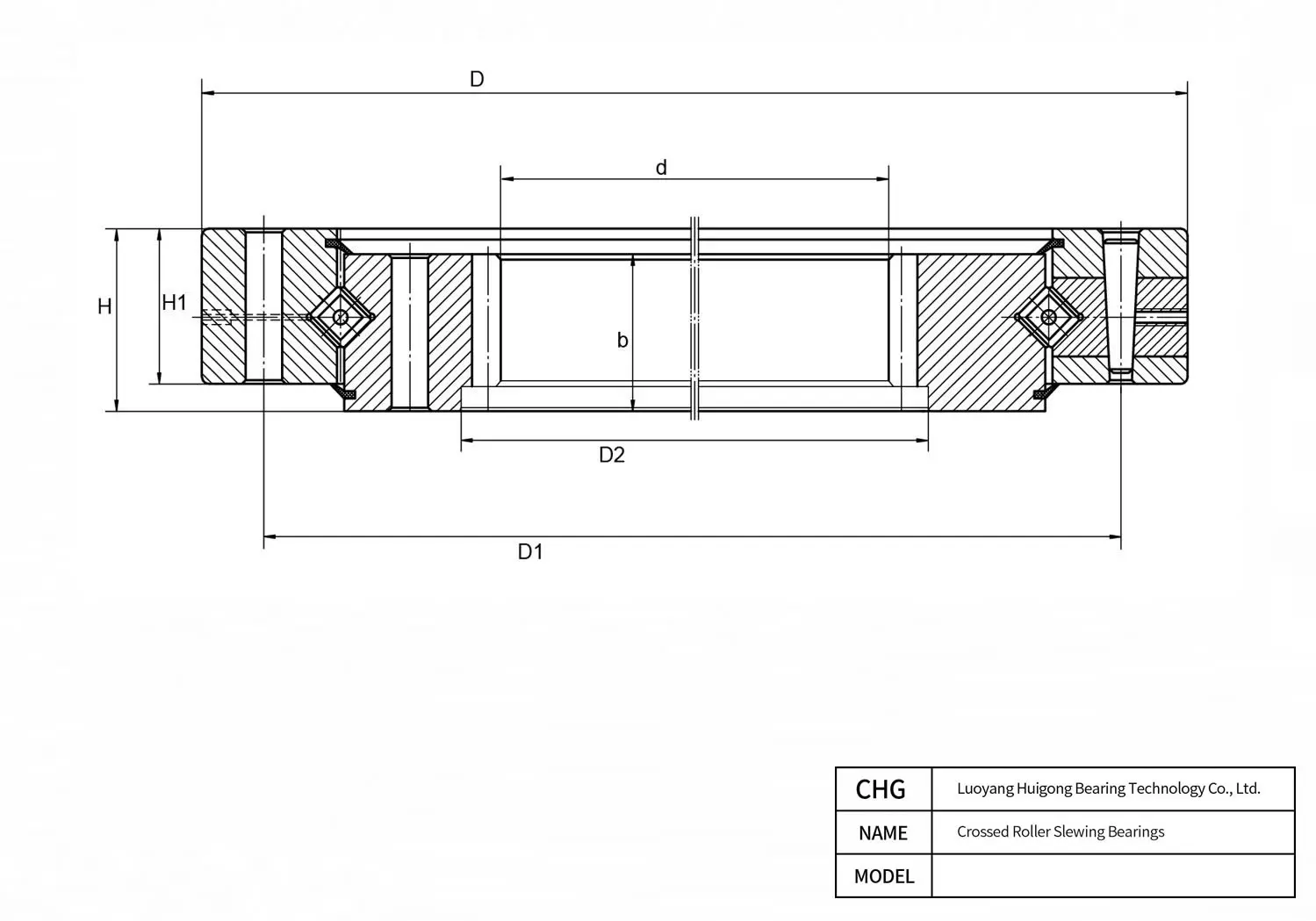

Manufactured by CHG Bearing, the 2797/2768 is a precision Crossed Roller Slewing Bearings. Key dimensional parameters include a mm bore diameter, a 3100 mm outer diameter, and a 110 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

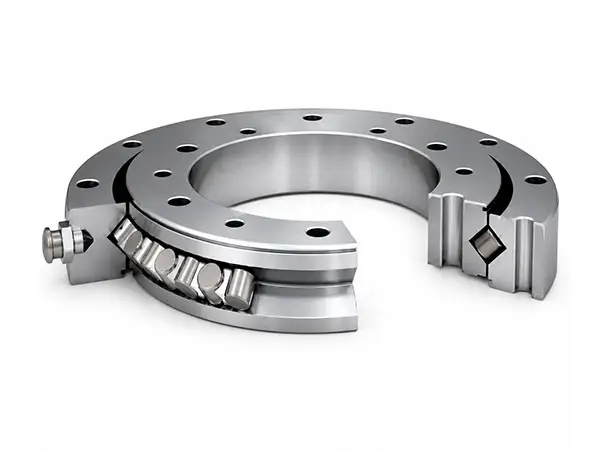

2797/2768 - Crossed Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 2797/2768 |
| Brand | CHG® |
| Gear Type | Internal Gear |
| Characteristics | |
| Bearing Type | Single-row Crossed Roller Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Width (B) | 110 mm |
| Outer Diameter (D) | 3100 mm |
| Inner/Outer Ring Height H1 | 94 mm |
| End-face Height Difference h | 16 mm |
| Number of Lubrication Holes n1 | 10 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 3052 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2897 mm |
| Lubrication Port Thread / Size Φ1 | 10 |
| Inner Ring Mounting Hole Count n2 | 60 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 24 |
| Outer Ring Mounting Hole Count n3 | 60 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 24 |
| Gear Data | |
| Gear Module m | 16 mm |
| Gear Tip Diameter De | 2768 mm |
| Number of Gear Teeth z | 175 |
| Gear Face Width b | 100 mm |
| Addendum Modification Coefficient x | 0 |
| Reference Data | |
| Reference Mass (kg) | 975 kg |
2797/2768 3100 mm mm 110 mm 3052 mm 2897 mm Frequently Asked Questions about 2797/2768 Crossed Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 2797/2768 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
To match diverse operational dynamics, CHG Bearing supplies 2797/2768 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Standard batches of CHG Bearing 2797/2768 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
To ensure optimum performance of CHG Bearing 2797/2768 Crossed Roller Slewing Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the mm bore. For the 3100 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
