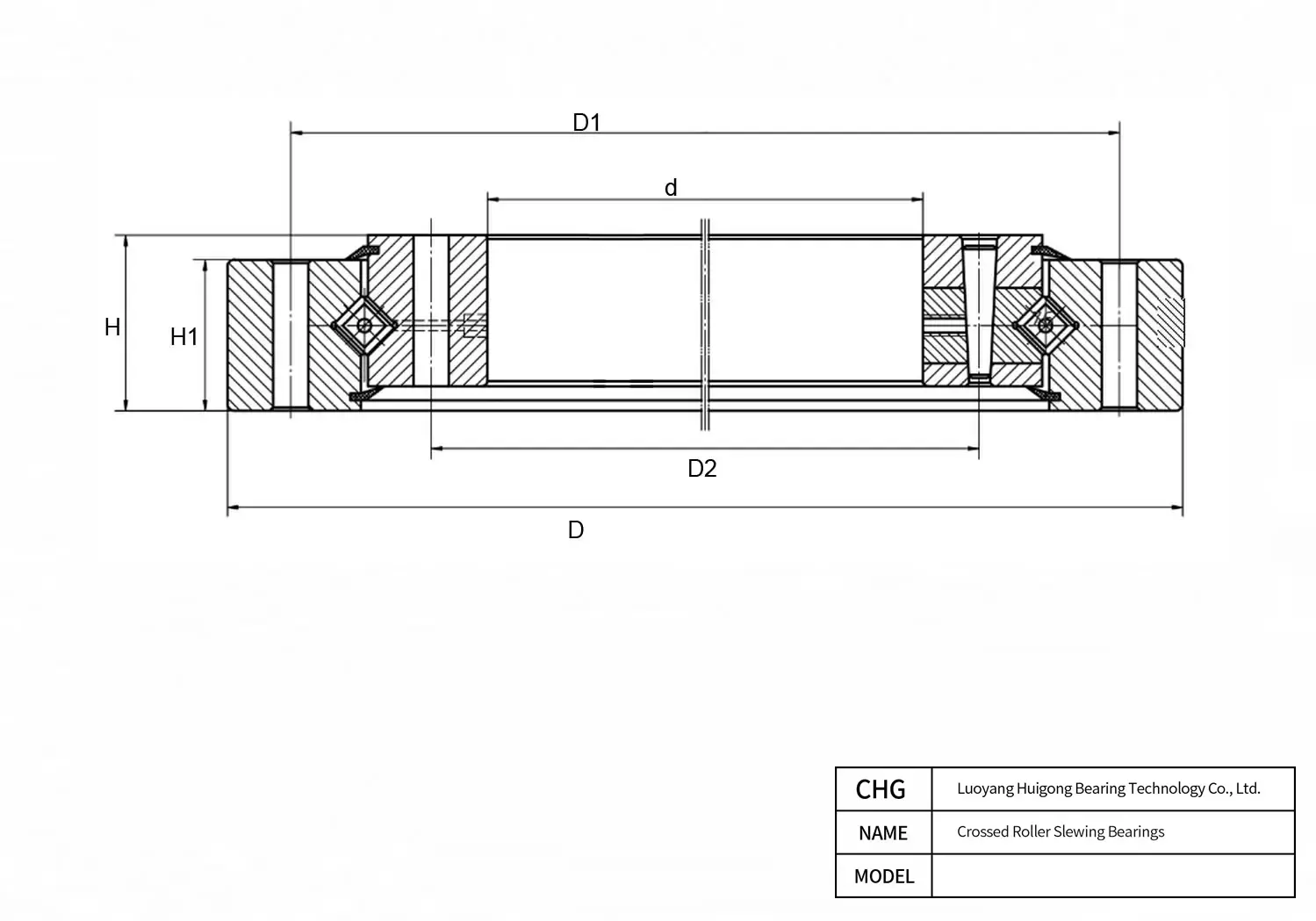

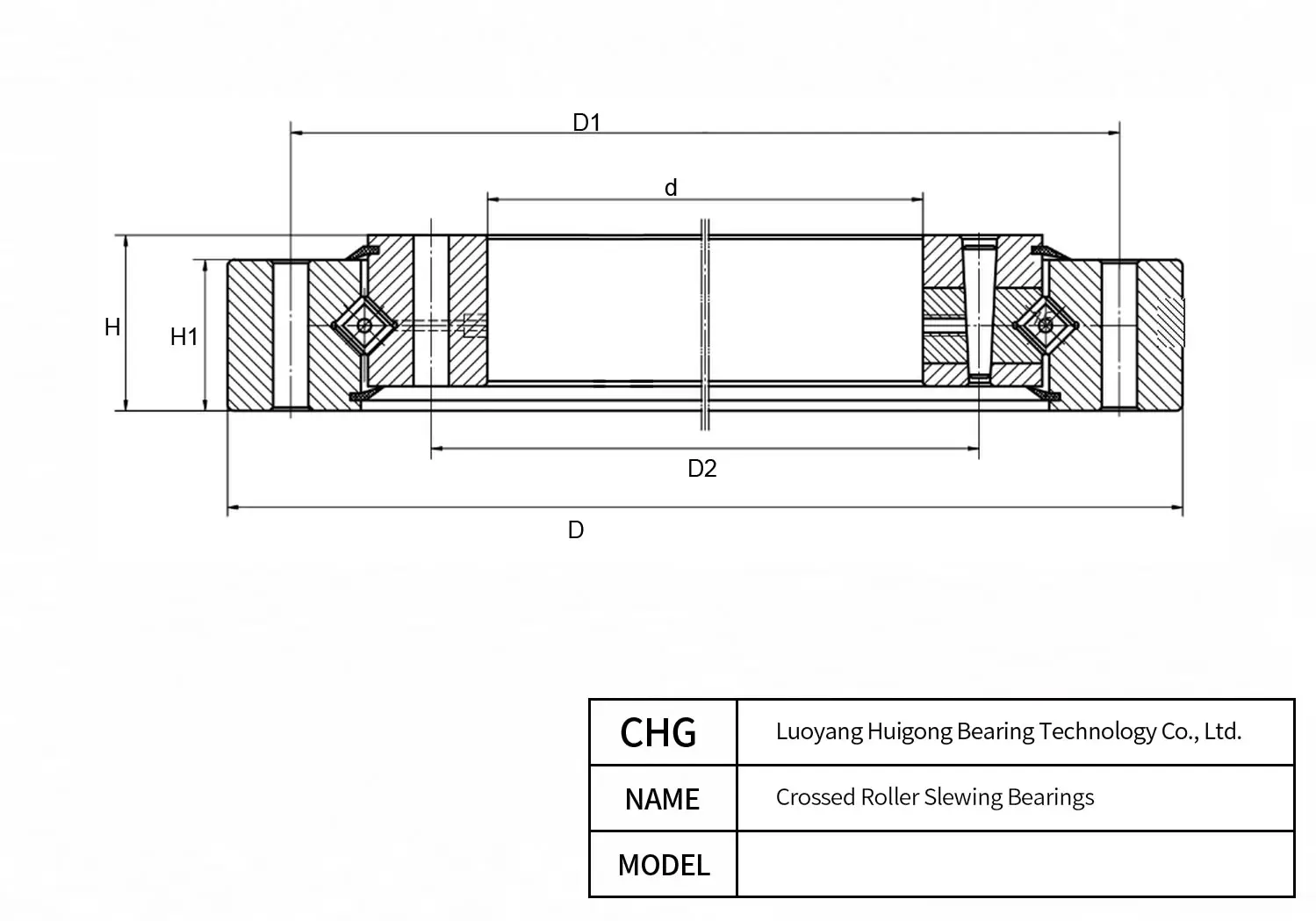

Manufactured by CHG Bearing, the D797/2992 is a precision Crossed Roller Slewing Bearings. Key dimensional parameters include a 2992 mm bore diameter, a 3628 mm outer diameter, and a 216 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
D797/2992 - Crossed Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | D797/2992 |
| Brand | CHG® |
| Gear Type | Gearless |
| Characteristics | |
| Bearing Type | Single-row Crossed Roller Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 2992 mm |
| Width (B) | 216 mm |
| Outer Diameter (D) | 3628 mm |
| Inner/Outer Ring Height H1 | 194 mm |
| End-face Height Difference h | 16 mm |
| Number of Lubrication Holes n1 | 6 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 3472 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 3092 mm |
| Lubrication Port Thread / Size Φ1 | 10 |
| Inner Ring Mounting Hole Count n2 | 72 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 33 |
| Outer Ring Mounting Hole Count n3 | 72 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 72 |
| Reference Data | |
| Reference Mass (kg) | 4747 kg |
D797/2992 3628 mm 2992 mm 216 mm 3472 mm 3092 mm Frequently Asked Questions about D797/2992 Crossed Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing D797/2992 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
Absolutely. The CHG Bearing D797/2992 Crossed Roller Slewing Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF D797/2992, FAG D797/2992, NSK D797/2992. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Quality starts with raw material selection: CHG Bearing crafts D797/2992 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
Beyond standard alloy steel, CHG Bearing can customize the D797/2992 Crossed Roller Slewing Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
