Manufactured by CHG Bearing, the 023.30.900 is a precision Double-Row Ball Slewing Bearings. Key dimensional parameters include a 758 mm bore diameter, a 1042 mm outer diameter, and a 124 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
023.30.900 - Double-Row Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 023.30.900 |
| Brand | CHG® |
| Gear Type | Internal Gear |
| Characteristics | |
| Bearing Type | Double-Row Ball Slewing Bearing |
| Row Configuration | Double Row |

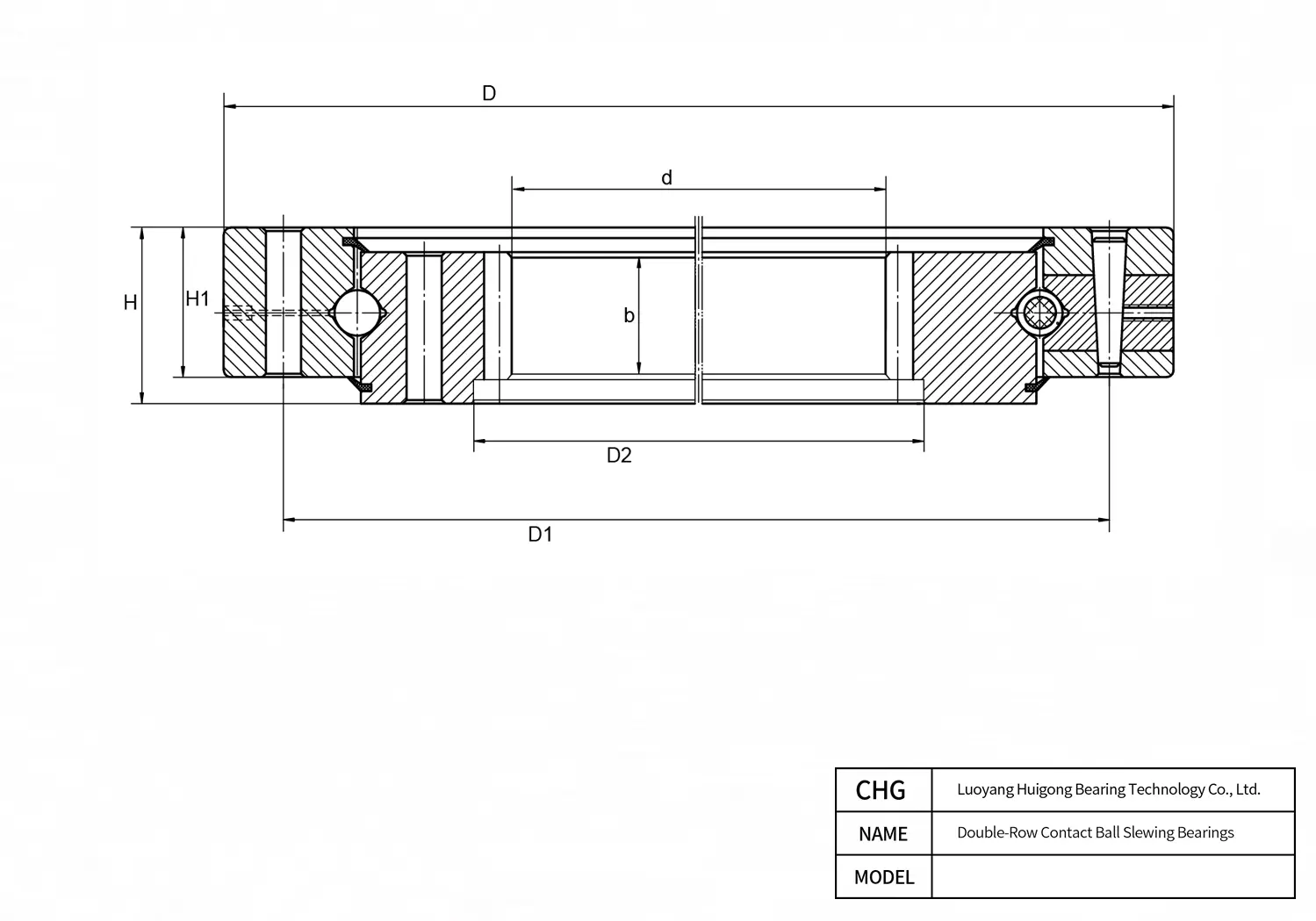

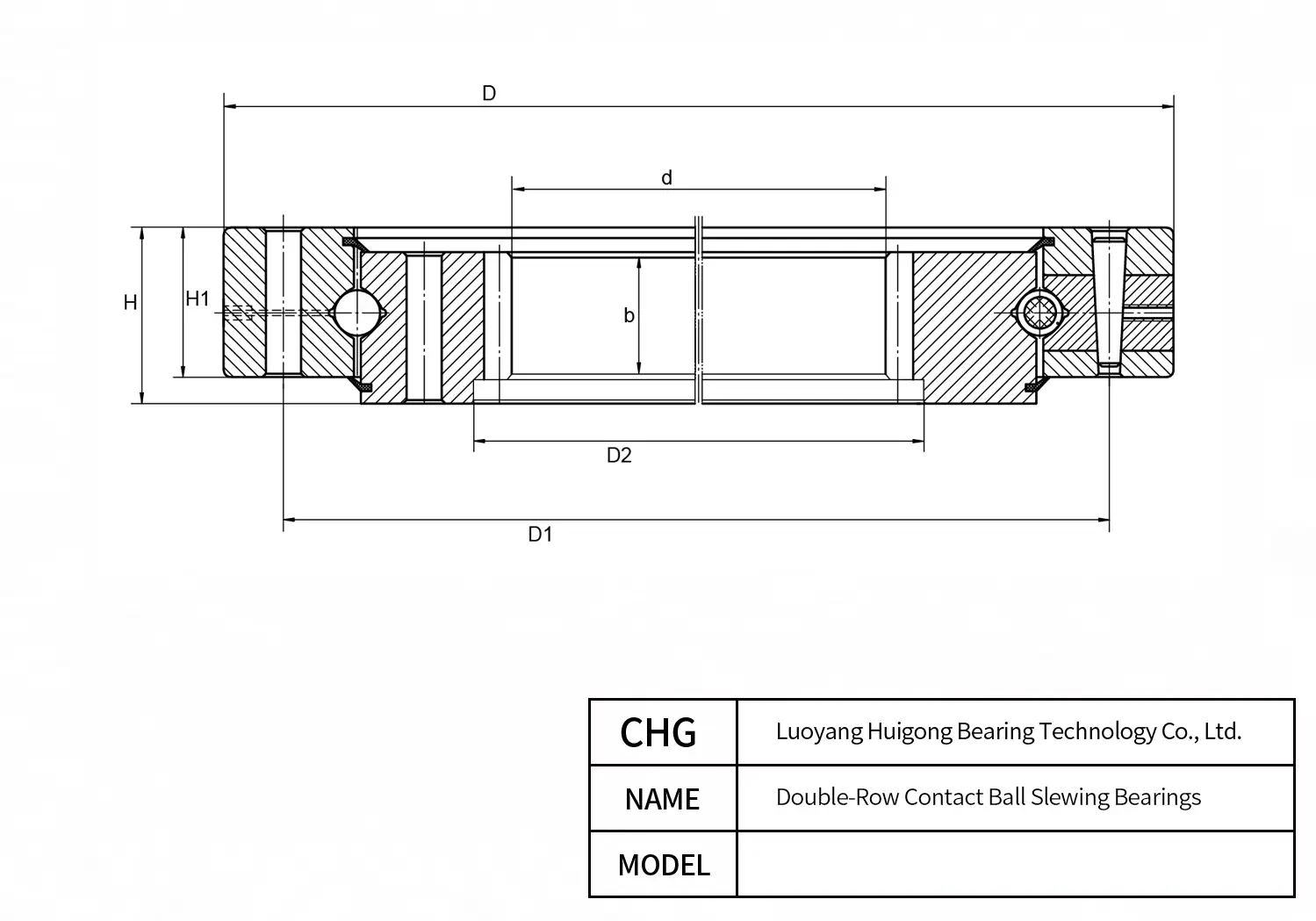

| Dimensions | |
| Bore Diameter (d) | 758 mm |
| Width (B) | 124 mm |
| Outer Diameter (D) | 1042 mm |
| End-face Height Difference h | 29 mm |
| Number of Lubrication Holes n1 | 6 |
| Ring Height H1 | 114 mm |
| Mounting Hole Diameter Φ | 22 mm |
| Performance | |
| Mounting Hole Count n | 30 |
| Tangential Tooth Force, Normalized Z (×10⁴ N) | 8 ×10⁴ N |
| Tangential Tooth Force, Quenched T (×10⁴ N) | 11.1 ×10⁴ N |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 998 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 802 mm |
| Lubrication Port Thread / Size Φ1 | M10×1 |
| Gear Data | |
| Gear Module m | 8 mm |
| Gear Tip Diameter De | 715.2 mm |
| Number of Gear Teeth z | 90 |
| Gear Face Width b | 80 mm |
| Addendum Modification Coefficient x | 0.5 |
| Reference Data | |
| Reference Mass (kg) | 250 kg |
023.30.900 998 mm 802 mm 124 mm 758 mm 1042 mm Frequently Asked Questions about 023.30.900 Double-Row Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To match diverse operational dynamics, CHG Bearing supplies 023.30.900 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Beyond standard alloy steel, CHG Bearing can customize the 023.30.900 Double-Row Ball Slewing Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
Absolutely. The CHG Bearing 023.30.900 Double-Row Ball Slewing Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 023.30.900, FAG 023.30.900, NSK 023.30.900. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Every production batch of CHG Bearing 023.30.900 Double-Row Ball Slewing Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
