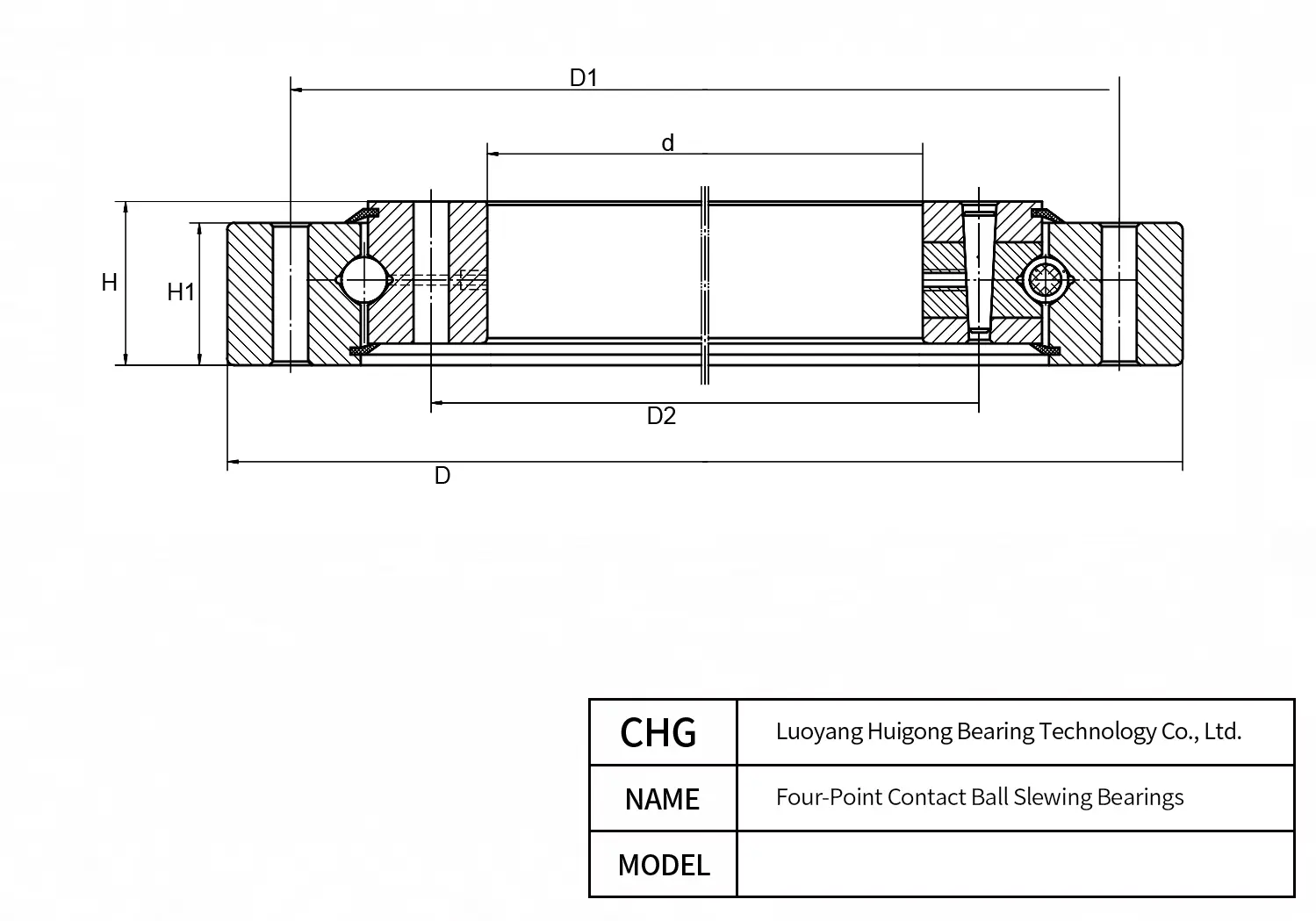

Manufactured by CHG Bearing, the 010.10.228.03 is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a 184 mm bore diameter, a 280 mm outer diameter, and a 25 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
010.10.228.03 - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 010.10.228.03 |
| Brand | CHG® |
| Gear Type | Gearless |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 184 mm |
| Width (B) | 25 mm |
| Outer Diameter (D) | 280 mm |
| Number of Lubrication Holes n1 | 1 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 254 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 202 mm |
| Lubrication Port Thread / Size Φ1 | 6 |
| Inner Ring Mounting Hole Count n2 | 8 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 8 |
| Outer Ring Mounting Hole Count n3 | 8 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 8 |
| Reference Data | |
| Reference Mass (kg) | 6.6 kg |
010.10.228.03 280 mm 184 mm 25 mm 202 mm 254 mm Frequently Asked Questions about 010.10.228.03 Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Standard batches of CHG Bearing 010.10.228.03 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
To extend the trouble-free lifespan of CHG Bearing 010.10.228.03, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for 010.10.228.03. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
Sourcing 010.10.228.03 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Four-Point Contact Ball Slewing Bearings.
