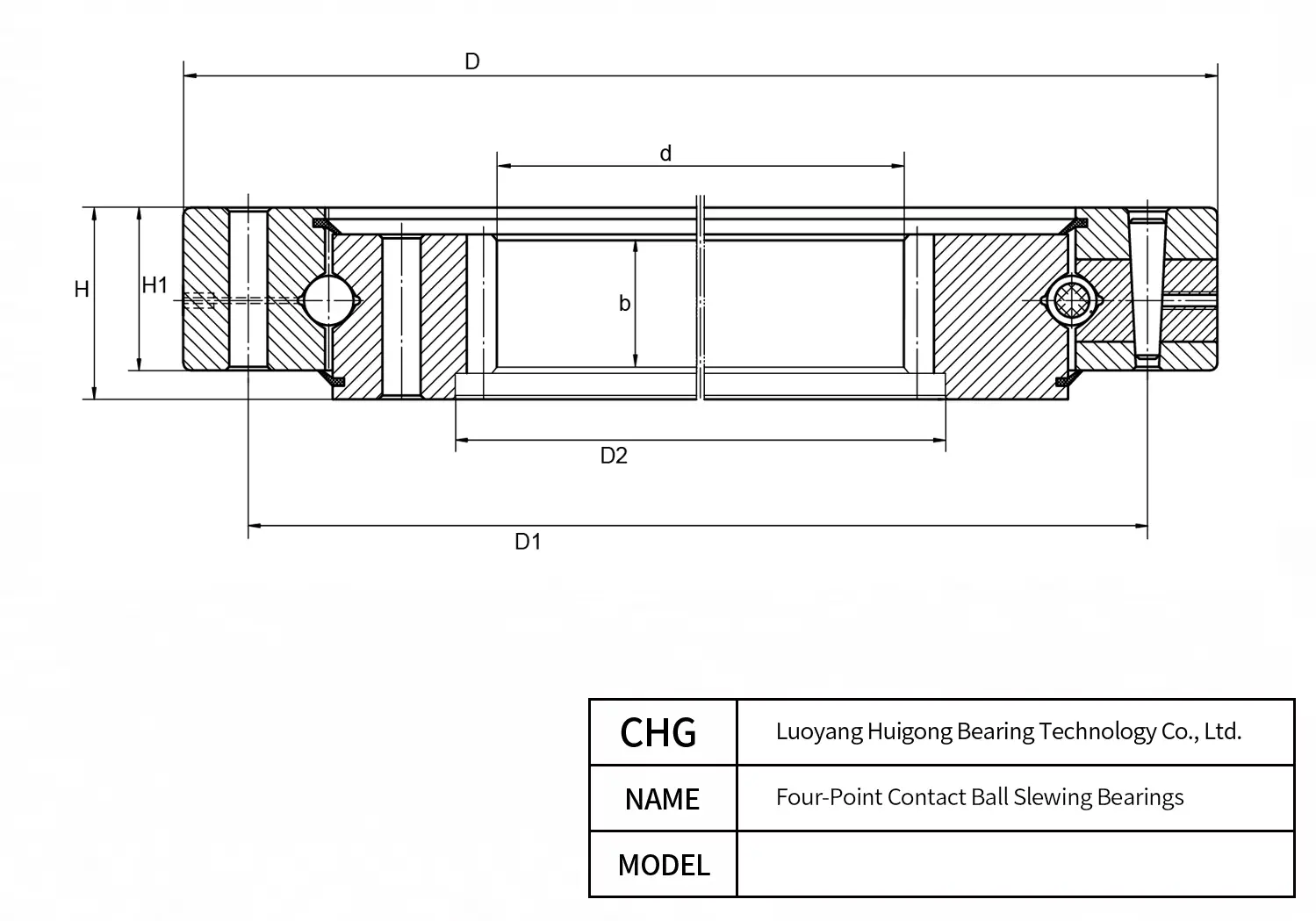

Manufactured by CHG Bearing, the 013.10.810.03 is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a 708 mm bore diameter, a 890 mm outer diameter, and a 46 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
013.10.810.03 - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 013.10.810.03 |
| Brand | CHG® |
| Gear Type | Internal Gear |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 708 mm |
| Width (B) | 46 mm |
| Outer Diameter (D) | 890 mm |
| Number of Lubrication Holes n1 | 4 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 855 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 765 mm |
| Lubrication Port Thread / Size Φ1 | 10 |
| Inner Ring Mounting Hole Count n2 | 20 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 18 |
| Outer Ring Mounting Hole Count n3 | 20 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 18 |
| Gear Data | |
| Gear Module m | 6 mm |
| Gear Tip Diameter De | 720 mm |
| Number of Gear Teeth z | 120 |
| Gear Face Width b | 35 mm |
| Addendum Modification Coefficient x | 0 |
| Reference Data | |
| Reference Mass (kg) | 54.4 kg |
013.10.810.03 890 mm 708 mm 855 mm 765 mm 46 mm Frequently Asked Questions about 013.10.810.03 Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The CHG Bearing 013.10.810.03 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
Standard batches of CHG Bearing 013.10.810.03 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 013.10.810.03 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
To safeguard CHG Bearing 013.10.810.03 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (708 mm x 890 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
