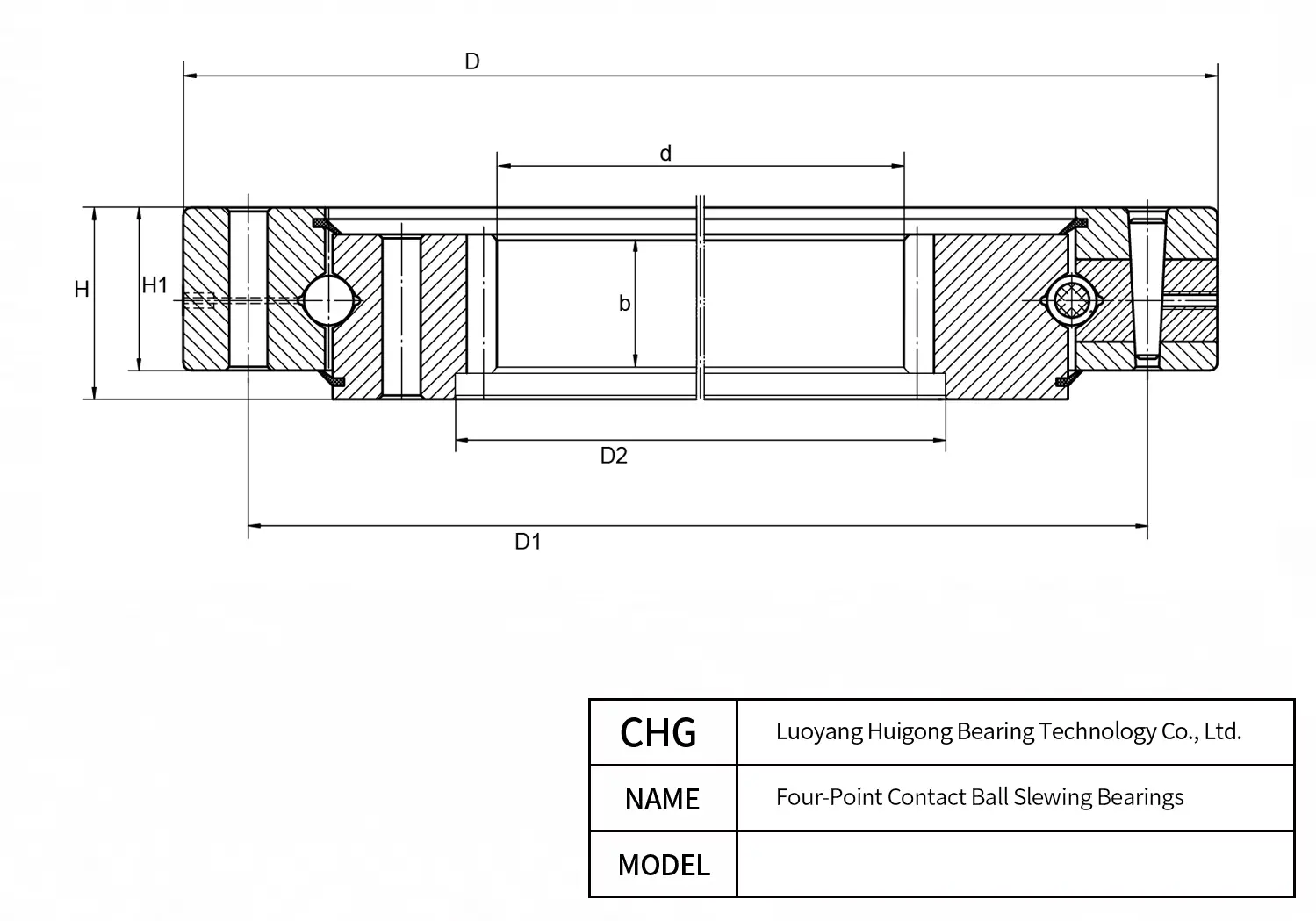

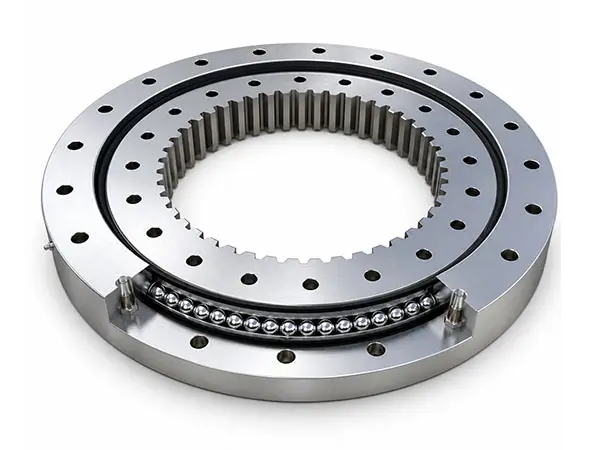

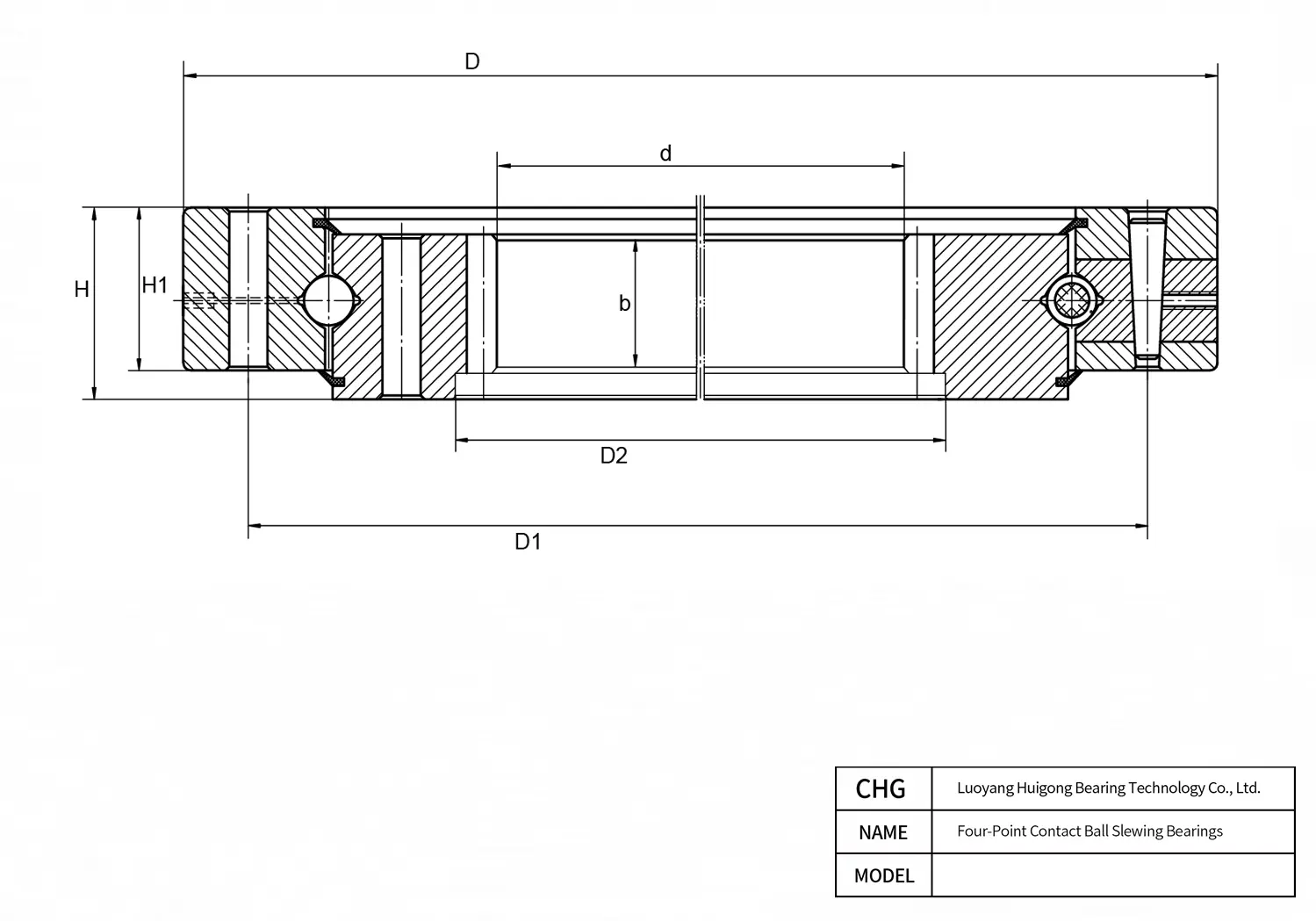

Manufactured by CHG Bearing, the 013.60.2820.03 is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a mm bore diameter, a 3085 mm outer diameter, and a 200 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
013.60.2820.03 - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 013.60.2820.03 |
| Brand | CHG® |
| Gear Type | Internal Gear |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Width (B) | 200 mm |
| Outer Diameter (D) | 3085 mm |
| Number of Lubrication Holes n1 | 6 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 3000 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2640 mm |
| Lubrication Port Thread / Size Φ1 | 10 |
| Inner Ring Mounting Hole Count n2 | 60 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 36 |
| Outer Ring Mounting Hole Count n3 | 60 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 36 |
| Gear Data | |
| Gear Module m | 18 mm |
| Gear Tip Diameter De | 2463.4 mm |
| Number of Gear Teeth z | 138 |
| Gear Face Width b | 178 mm |
| Addendum Modification Coefficient x | 0.4 |
| Reference Data | |
| Reference Mass (kg) | 3014 kg |
013.60.2820.03 3085 mm mm 3000 mm 2640 mm 200 mm Frequently Asked Questions about 013.60.2820.03 Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Sourcing 013.60.2820.03 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Four-Point Contact Ball Slewing Bearings.
Beyond standard alloy steel, CHG Bearing can customize the 013.60.2820.03 Four-Point Contact Ball Slewing Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
The CHG Bearing 013.60.2820.03 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
Quality starts with raw material selection: CHG Bearing crafts 013.60.2820.03 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
