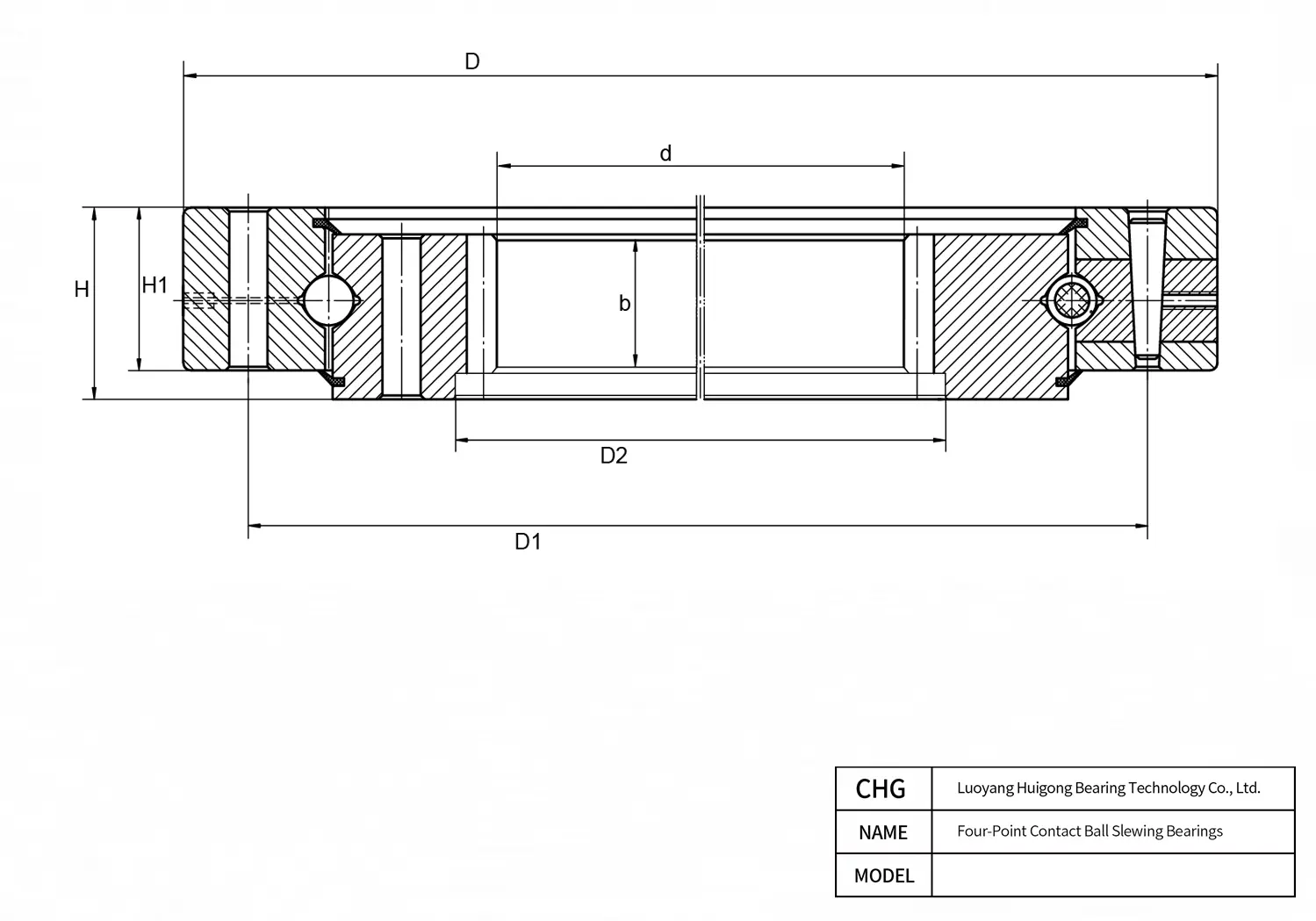

Manufactured by CHG Bearing, the 014.60.2625.03 is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a 2308.8 mm bore diameter, a 2817 mm outer diameter, and a 195 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
014.60.2625.03 - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 014.60.2625.03 |
| Brand | CHG® |
| Gear Type | Internal Gear |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 2308.8 mm |
| Width (B) | 195 mm |
| Outer Diameter (D) | 2817 mm |
| Number of Lubrication Holes n1 | 6 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 2755 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2495 mm |
| Lubrication Port Thread / Size Φ1 | 10 |
| Inner Ring Mounting Hole Count n2 | 78 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 36 |
| Outer Ring Mounting Hole Count n3 | 77 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 39 |
| Gear Data | |
| Gear Module m | 24 mm |
| Gear Tip Diameter De | 2328 mm |
| Number of Gear Teeth z | 97 |
| Gear Face Width b | 180 mm |
| Addendum Modification Coefficient x | 0.5 |
| Reference Data | |
| Reference Mass (kg) | 2100 kg |
014.60.2625.03 2817 mm 2308.8 mm 2755 mm 2495 mm 195 mm Frequently Asked Questions about 014.60.2625.03 Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 014.60.2625.03 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
As standard production, CHG Bearing subjects 014.60.2625.03 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Quality starts with raw material selection: CHG Bearing crafts 014.60.2625.03 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
In its sealed configuration (Open Type), CHG Bearing pre-charges 014.60.2625.03 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
