Manufactured by CHG Bearing, the 10739006 is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a 234 mm bore diameter, a 380 mm outer diameter, and a 55 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
10739006 - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 10739006 |
| Brand | CHG® |
| Gear Type | External Gear |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 234 mm |
| Width (B) | 55 mm |
| Outer Diameter (D) | 380 mm |
| Number of Lubrication Holes n1 | 4 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 358 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 259 mm |
| Lubrication Port Thread / Size Φ1 | 8 |
| Inner Ring Mounting Hole Count n2 | 28 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 13 |
| Outer Ring Mounting Hole Count n3 | 24 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 13 |
| Gear Data | |
| Gear Module m | 4.5 mm |
| Gear Tip Diameter De | 396 mm |
| Number of Gear Teeth z | 88 |
| Gear Face Width b | 39 mm |
| Addendum Modification Coefficient x | 0 |
| Reference Data | |
| Reference Mass (kg) | 24.4 kg |

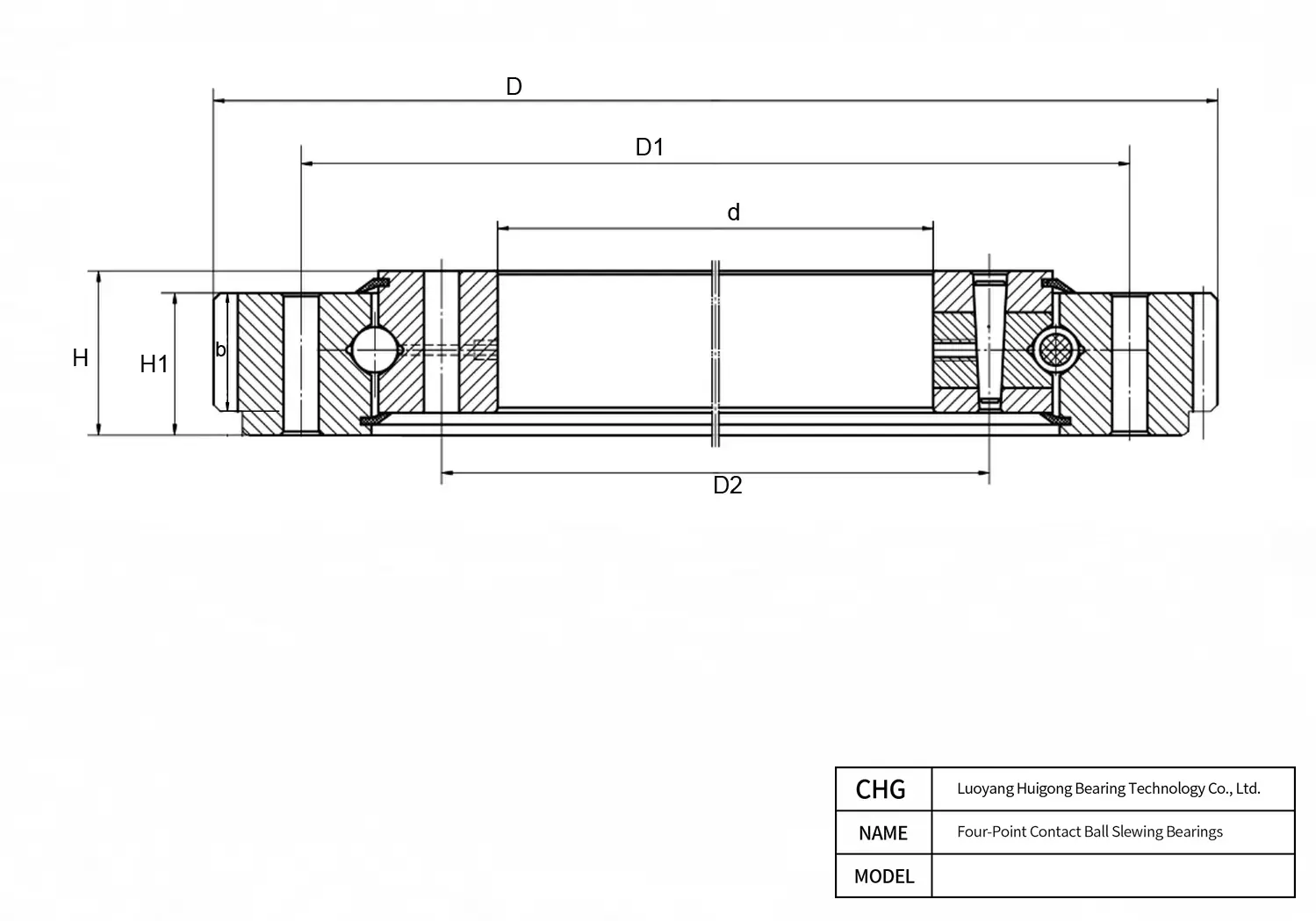

10739006 380 mm 358 mm 234 mm 55 mm 259 mm Frequently Asked Questions about 10739006 Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for 10739006. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
The CHG Bearing 10739006 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
Engineered according to international ISO boundary plans, CHG Bearing supplies 10739006 with a precision bore diameter (d) of 234 mm, an outside diameter (D) of 380 mm, and a nominal ring width (B) of 55 mm. This configuration yields an effective cross-sectional wall thickness of 73.0 mm and an envelope ratio (D/d) of 1.62, delivering compact rigidity for OEM machinery housings.
When fitting 10739006 over a 234 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
