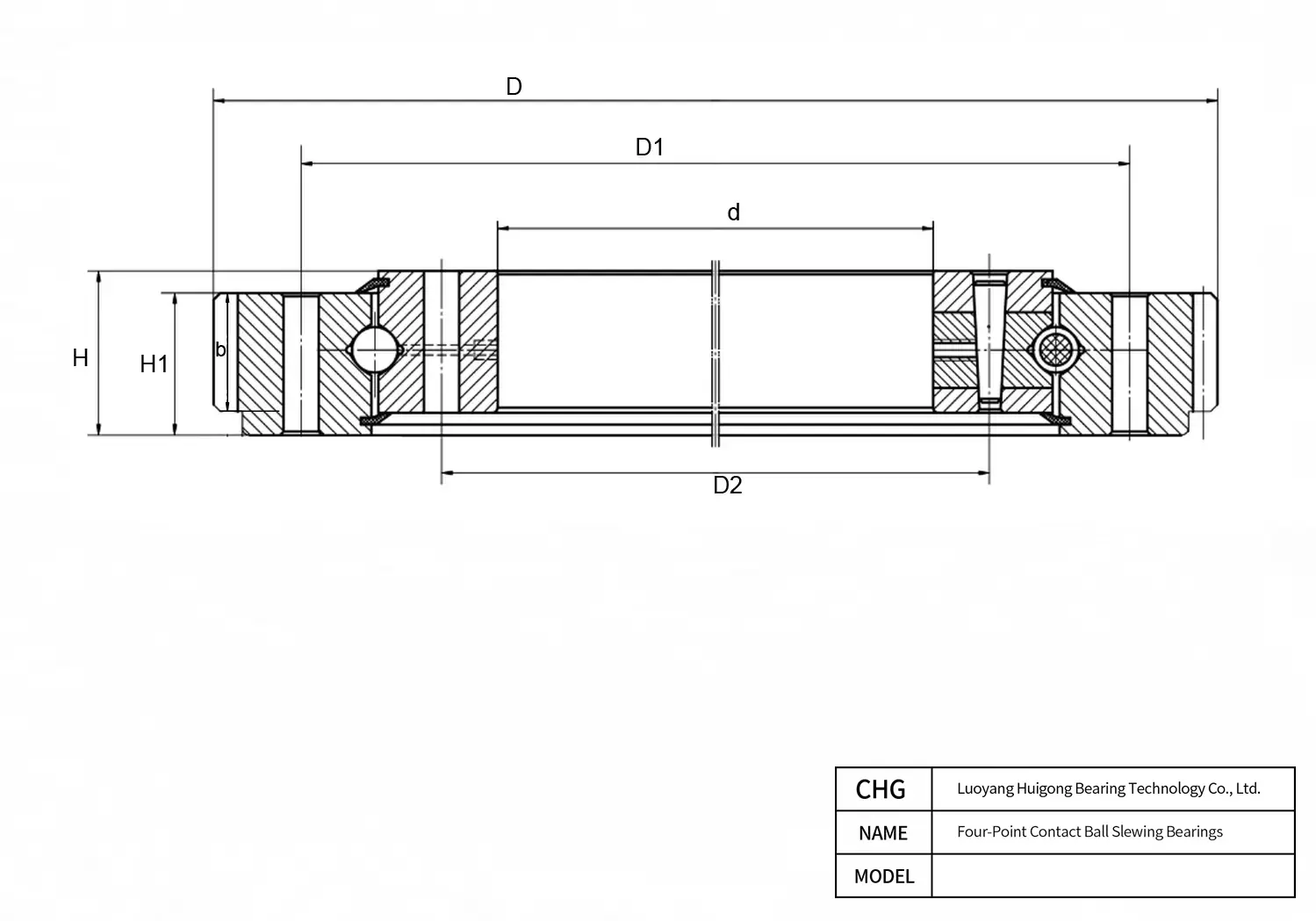

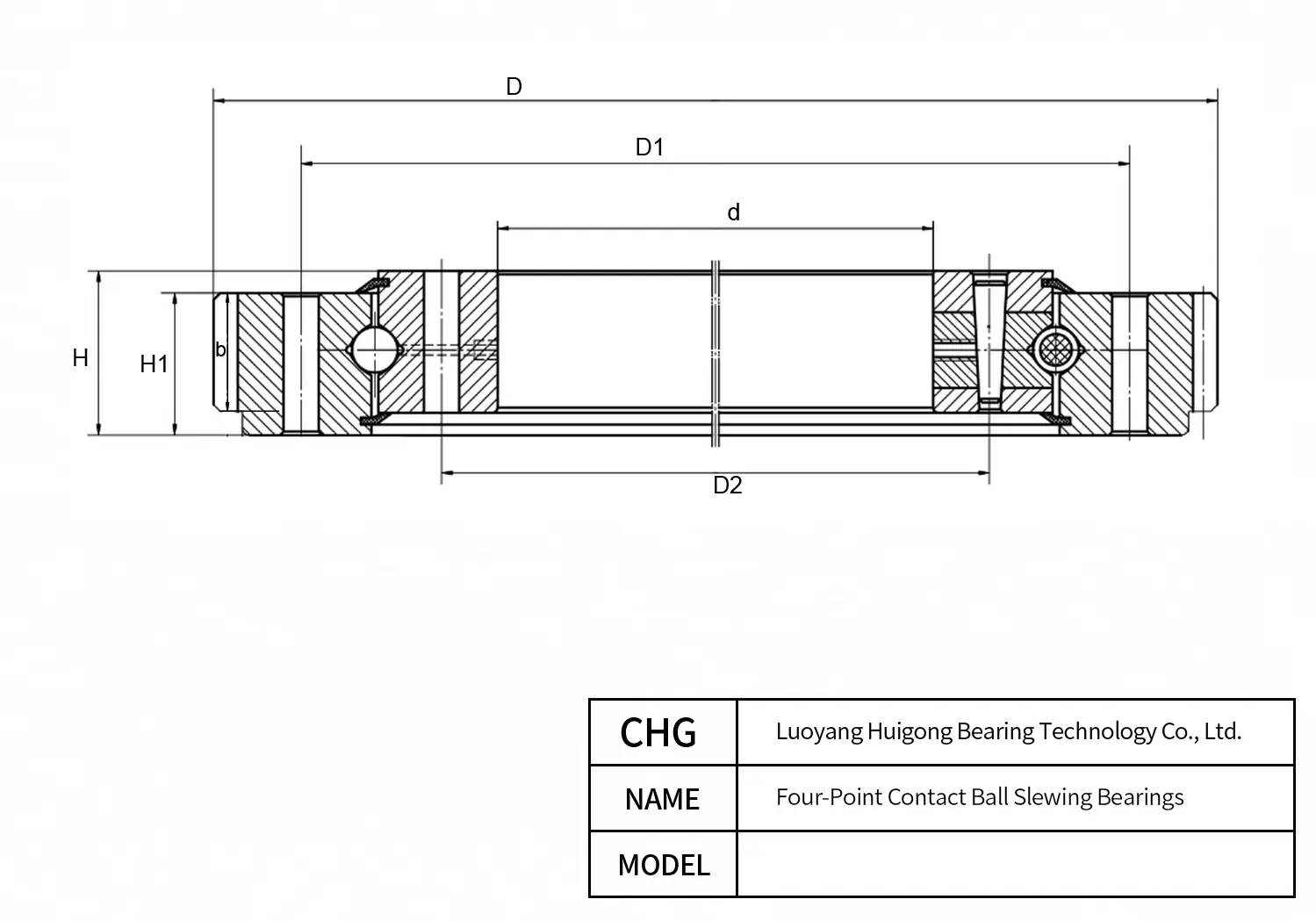

Manufactured by CHG Bearing, the D178794K2 is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a 468 mm bore diameter, a 665 mm outer diameter, and a 77 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
D178794K2 - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | D178794K2 |
| Brand | CHG® |
| Gear Type | External Gear |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 468 mm |
| Width (B) | 77 mm |
| Outer Diameter (D) | 665 mm |
| Number of Lubrication Holes n1 | 6 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 630 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 500 mm |
| Lubrication Port Thread / Size Φ1 | 10 |
| Inner Ring Mounting Hole Count n2 | 18 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 18 |
| Outer Ring Mounting Hole Count n3 | 18 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 16 |
| Gear Data | |
| Gear Module m | 5 mm |
| Gear Tip Diameter De | 760 mm |
| Number of Gear Teeth z | 150 |
| Gear Face Width b | 60 mm |
| Addendum Modification Coefficient x | 0 |
| Reference Data | |
| Reference Mass (kg) | 131 kg |
D178794K2 665 mm 630 mm 468 mm 77 mm 500 mm Frequently Asked Questions about D178794K2 Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Quality starts with raw material selection: CHG Bearing crafts D178794K2 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
Sourcing D178794K2 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Four-Point Contact Ball Slewing Bearings.
To extend the trouble-free lifespan of CHG Bearing D178794K2, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
As standard production, CHG Bearing subjects D178794K2 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
