Manufactured by CHG Bearing, the 130.50.3550.12 is a precision Three-row Cylindrical Roller Slewing Bearings. Key dimensional parameters include a 3268 mm bore diameter, a 3832 mm outer diameter, and a 270 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
130.50.3550.12 - Three-row Cylindrical Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 130.50.3550.12 |
| Brand | CHG® |
| Gear Type | Gearless |
| Characteristics | |
| Bearing Type | Three-row Cylindrical Roller Slewing Bearing |
| Row Configuration | Three-row |
| Dimensions | |
| Bore Diameter (d) | 3268 mm |
| Width (B) | 270 mm |
| Outer Diameter (D) | 3832 mm |
| Inner/Outer Ring Height H1 | 177 mm |
| End-face Height Difference h | 12 mm |
| Number of Lubrication Holes n1 | 8 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 2955 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2645 mm |
| Lubrication Port Thread / Size Φ1 | ZG1/4 |
| Inner Ring Mounting Hole Count n2 | 72 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 33 |
| Outer Ring Mounting Hole Count n3 | 72 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 33 |
| Reference Data | |
| Reference Mass (kg) | 2750 kg |

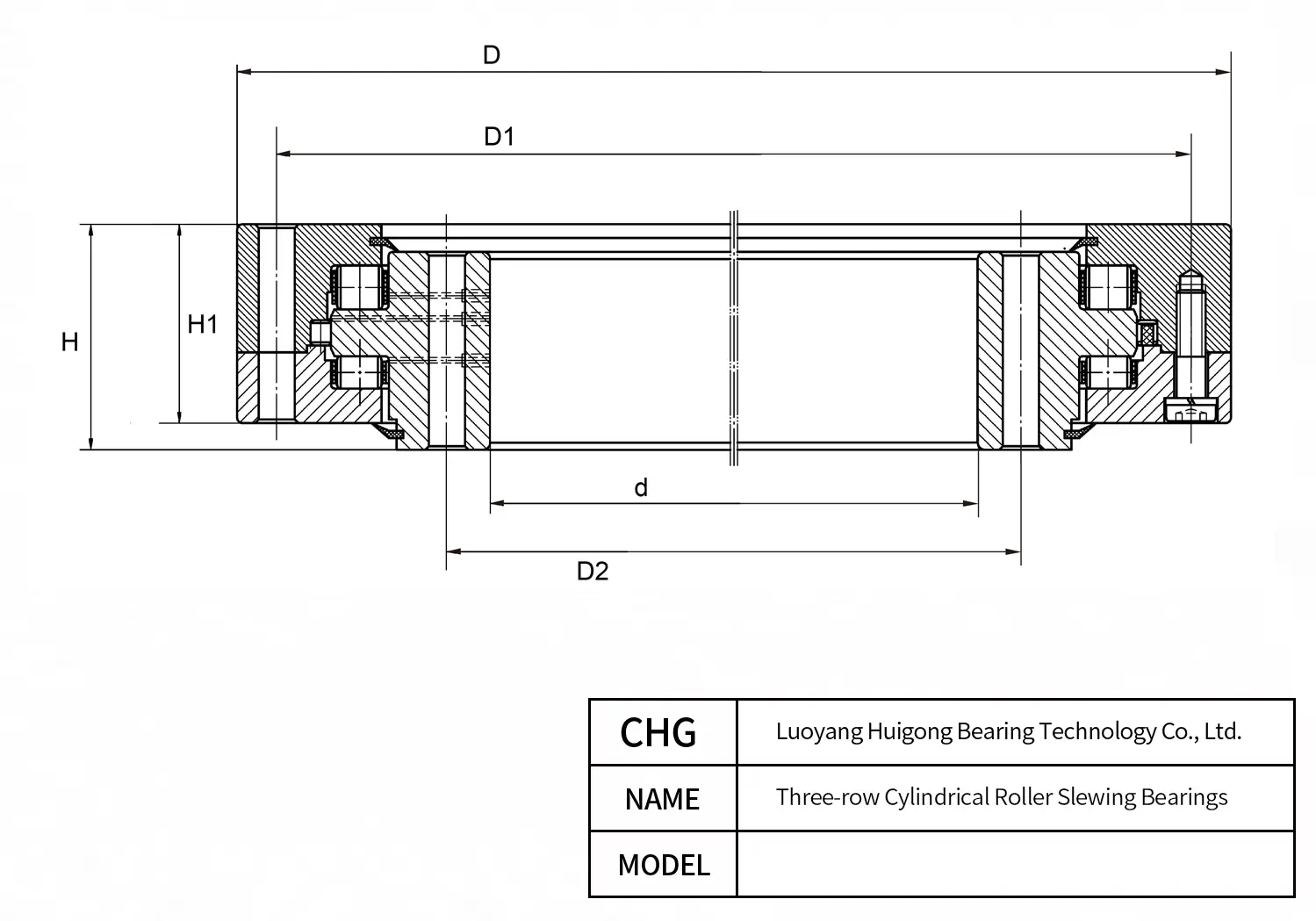

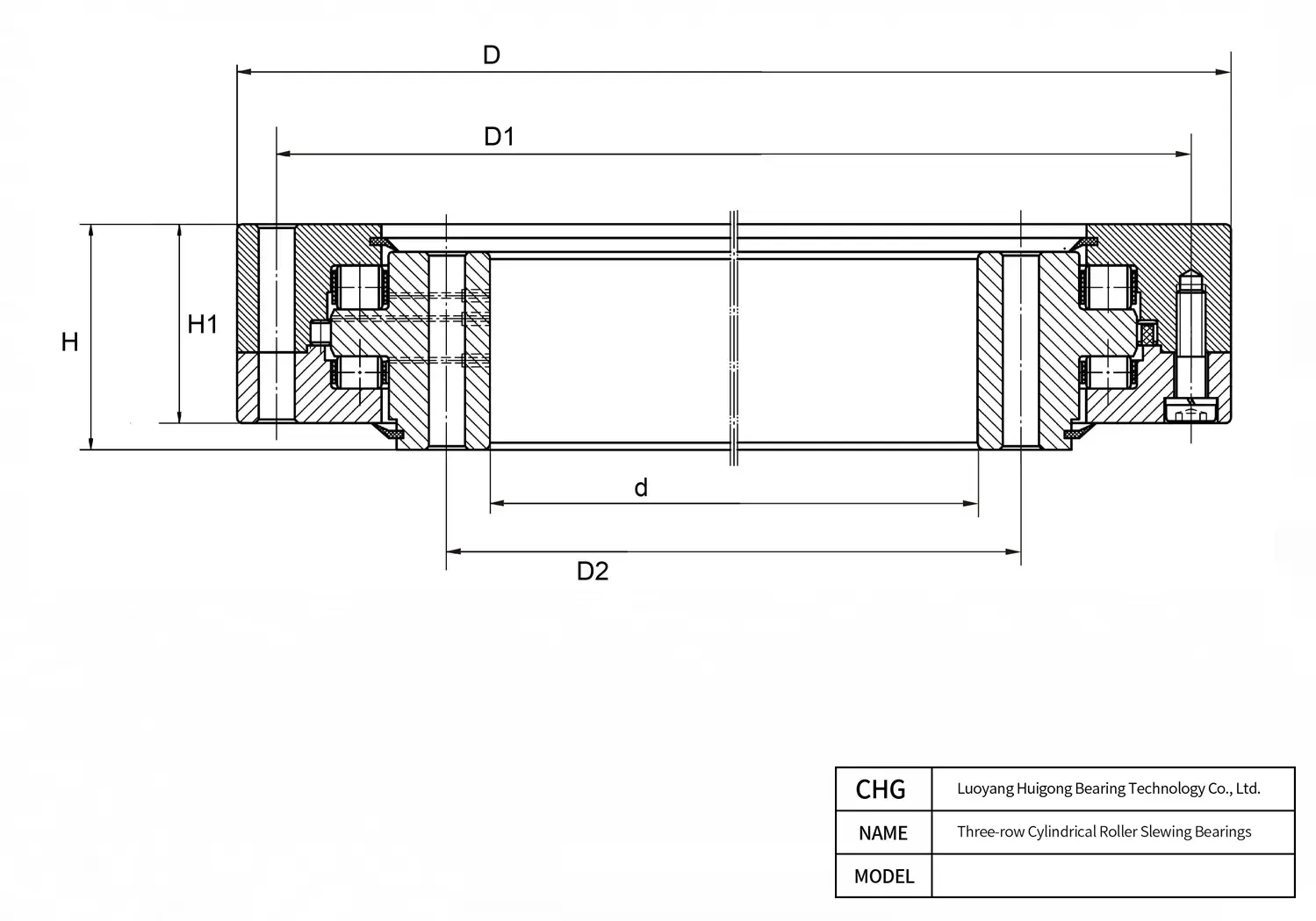

130.50.3550.12 2645 mm 3268 mm 2955 mm 3832 mm 270 mm Frequently Asked Questions about 130.50.3550.12 Three-row Cylindrical Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The Open Type engineered for 130.50.3550.12 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
To ensure optimum performance of CHG Bearing 130.50.3550.12 Three-row Cylindrical Roller Slewing Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 3268 mm bore. For the 3832 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for 130.50.3550.12, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
Sourcing 130.50.3550.12 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Three-row Cylindrical Roller Slewing Bearings.
