Manufactured by CHG Bearing, the 132.50.3550.03 is a precision Three-row Cylindrical Roller Slewing Bearings. Key dimensional parameters include a 3268 mm bore diameter, a 3832 mm outer diameter, and a 270 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

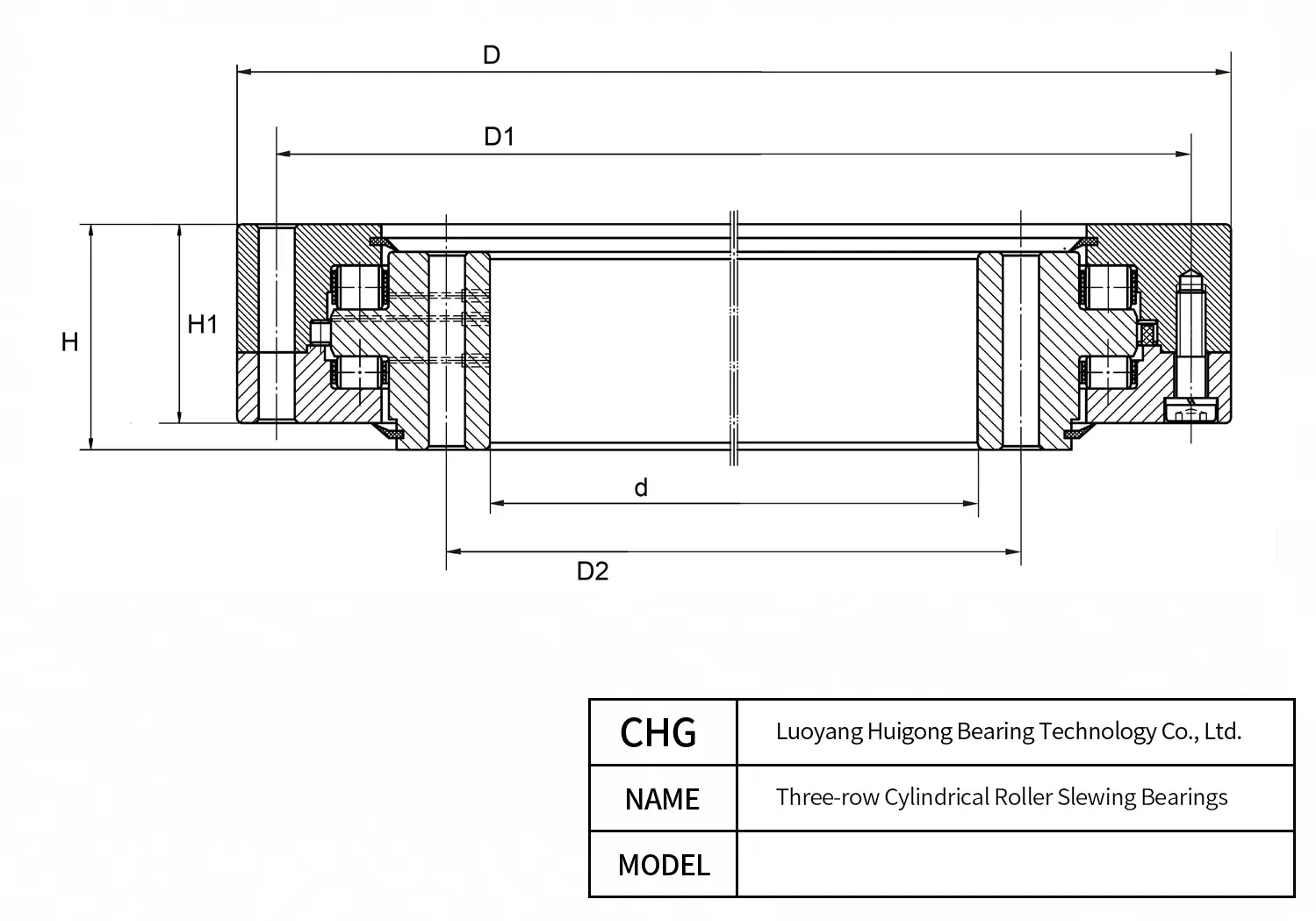

132.50.3550.03 - Three-row Cylindrical Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 132.50.3550.03 |
| Brand | CHG® |
| Gear Type | Gearless |
| Characteristics | |
| Bearing Type | Three-row Cylindrical Roller Slewing Bearing |
| Row Configuration | Three-row |
| Dimensions | |
| Bore Diameter (d) | 3268 mm |
| Width (B) | 270 mm |
| Outer Diameter (D) | 3832 mm |
| Inner/Outer Ring Height H1 | 258 mm |
| End-face Height Difference h | 50 mm |
| Number of Lubrication Holes n1 | 5 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 3342 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2958 mm |
| Lubrication Port Thread / Size Φ1 | ZG1/8 |
| Inner Ring Mounting Hole Count n2 | 72 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 45 |
| Outer Ring Mounting Hole Count n3 | 72 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 45 |
| Reference Data | |
| Reference Mass (kg) | 4900 kg |

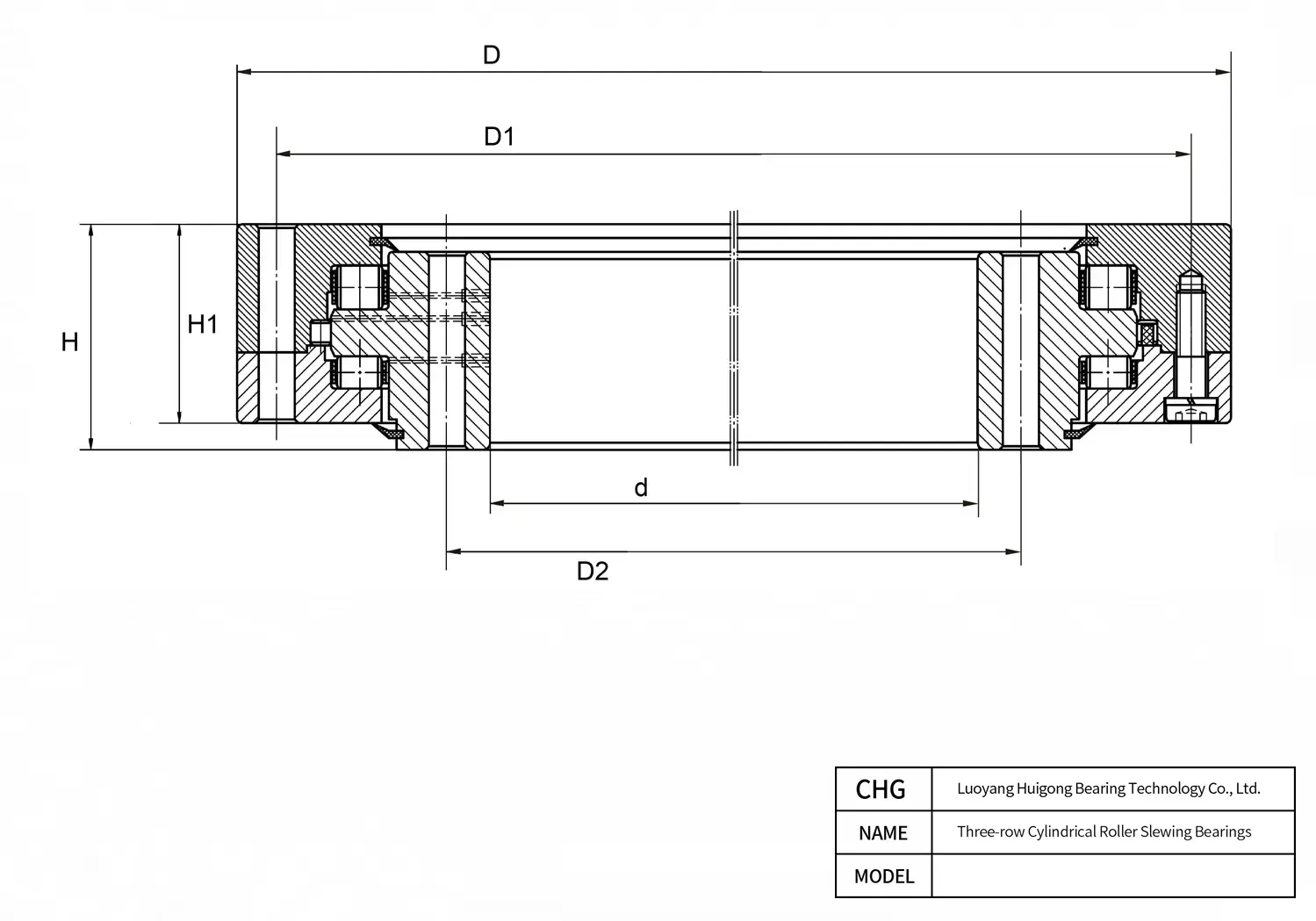

132.50.3550.03 2958 mm 3268 mm 3342 mm 3832 mm 270 mm Frequently Asked Questions about 132.50.3550.03 Three-row Cylindrical Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To safeguard CHG Bearing 132.50.3550.03 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (3268 mm x 3832 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 132.50.3550.03 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
Absolutely. The CHG Bearing 132.50.3550.03 Three-row Cylindrical Roller Slewing Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 132.50.3550.03, FAG 132.50.3550.03, NSK 132.50.3550.03. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for 132.50.3550.03, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
