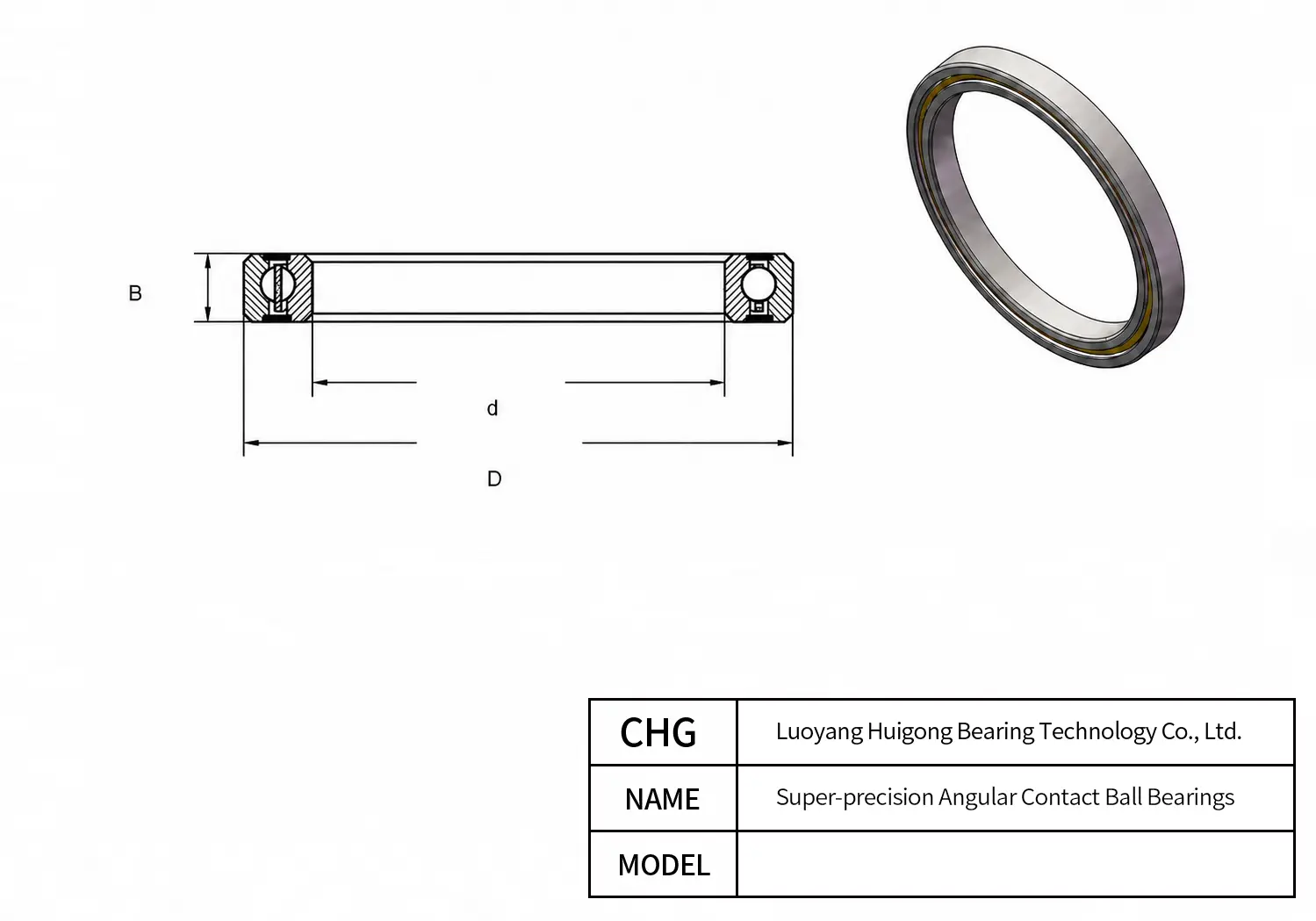

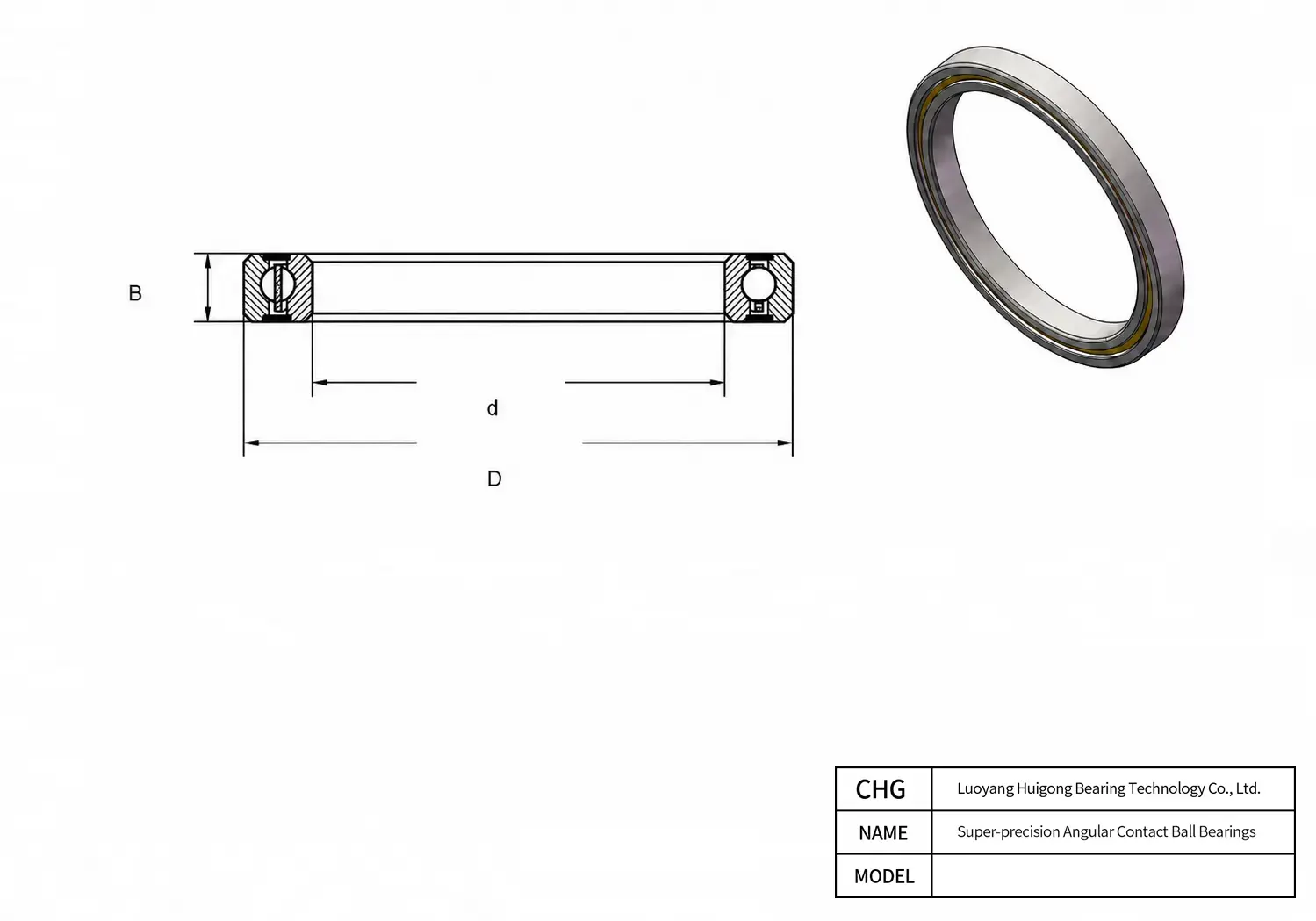

Manufactured by CHG Bearing, the 7007/VA9D1 is a precision Super-precision Angular Contact Ball Bearings. Key dimensional parameters include a 35 mm bore diameter, a 62 mm outer diameter, and a 14 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
7007/VA9D1 - Super-precision Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 7007/VA9D1 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Super-precision Angular Contact Ball Bearing |
| Number of Rows | 1 |
| Contact Type | Normal Contact (Two-point Contact) |
| Ring Type | Integral Inner and Outer Rings |
| Universally Matchable | Yes – Back-to-back (DB), Face-to-face (DF), or Tandem (DT) |
| Axial Clearance / Preload | Not Applicable |
| Tolerance Class | P4 |
| Bearing Material | Bearing Steel |
| Sealing | Open |
| Features | Suitable for Driven Tools |
| Dimensions | |
| Bore Diameter (d) | 35 mm |
| Width (B) | 14 mm |
| Outer Diameter (D) | 62 mm |
| Contact Angle α (°) | 25 ° |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 14.8 kN |
| Basic Static Load Rating C₀ (kN) | 9 kN |
| Limiting Speed – Grease (r/min) | 16000 r/min |
| Material | |
| Weight (kg) | 0.15 kg |
7007/VA9D1 62 mm 35 mm 14 mm Frequently Asked Questions about 7007/VA9D1 Super-precision Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To match diverse operational dynamics, CHG Bearing supplies 7007/VA9D1 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
As standard production, CHG Bearing subjects 7007/VA9D1 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Every production batch of CHG Bearing 7007/VA9D1 Super-precision Angular Contact Ball Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for 7007/VA9D1, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
