Manufactured by CHG Bearing, the 7009 ACE/HCP4ADT is a precision Super-precision Angular Contact Ball Bearings. Key dimensional parameters include a 45 mm bore diameter, a 75 mm outer diameter, and a 32 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
7009 ACE/HCP4ADT - Super-precision Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 7009 ACE/HCP4ADT |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Super-precision Angular Contact Ball Bearing |
| Number of Rows | 2 |
| Contact Type | Normal Contact (Two-point Contact) |
| Ring Type | Integral Inner and Outer Rings |
| Design | High-speed E Design |
| Universally Matchable | No |
| Matched Arrangement | Tandem (DT) |
| Number of Bearings in Set | 2 |
| Axial Clearance / Preload | Not Applicable |
| Tolerance Class | P4A |
| Bearing Material | Hybrid (Steel Rings / Ceramic Balls) |
| Sealing | Open |
| Dimensions | |
| Bore Diameter (d) | 45 mm |
| Width (B) | 32 mm |
| Outer Diameter (D) | 75 mm |
| Contact Angle α (°) | 25 ° |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 19.9 kN |
| Basic Static Load Rating C₀ (kN) | 16.3 kN |
| Material | |
| Weight (kg) | 0.418 kg |

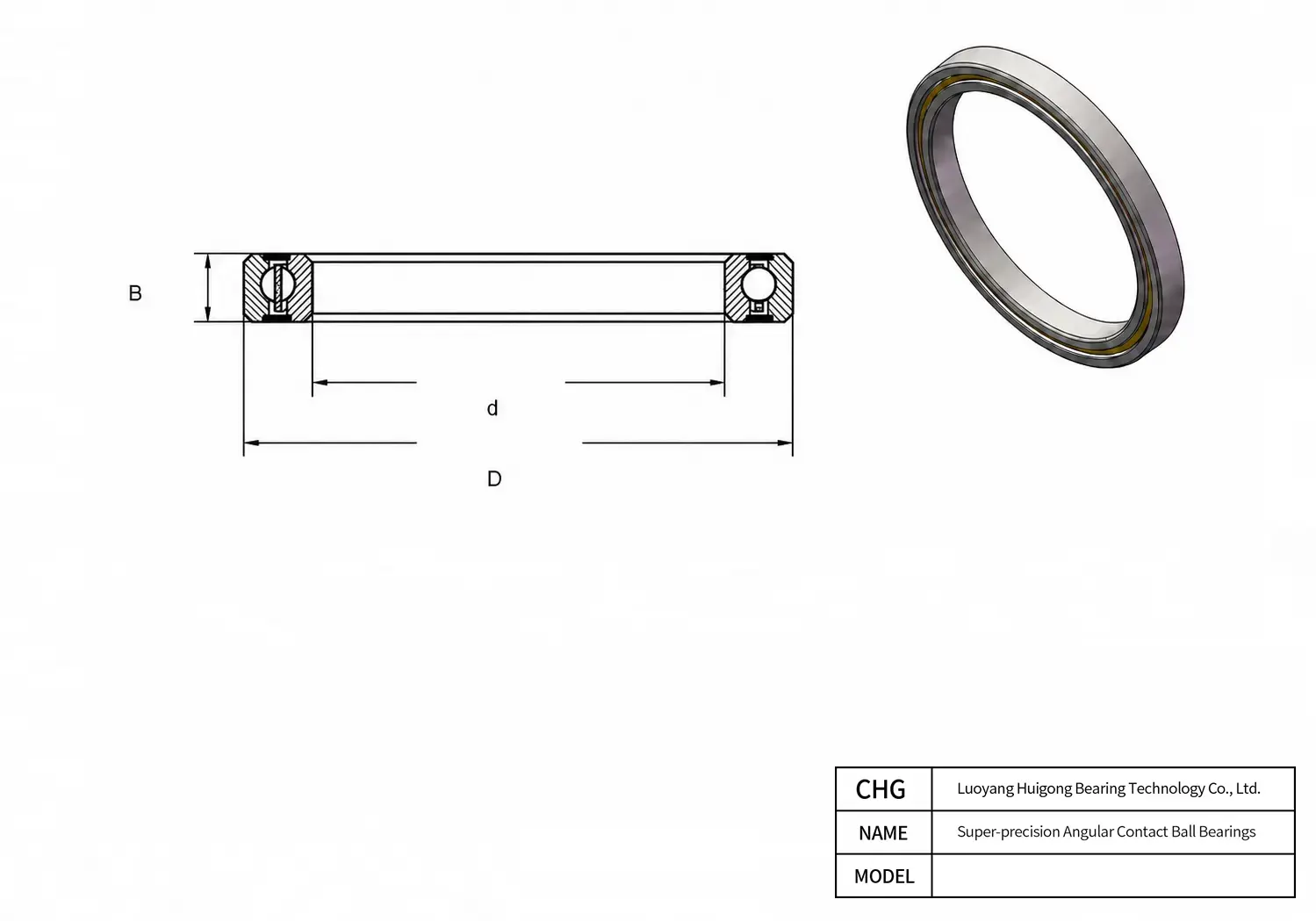

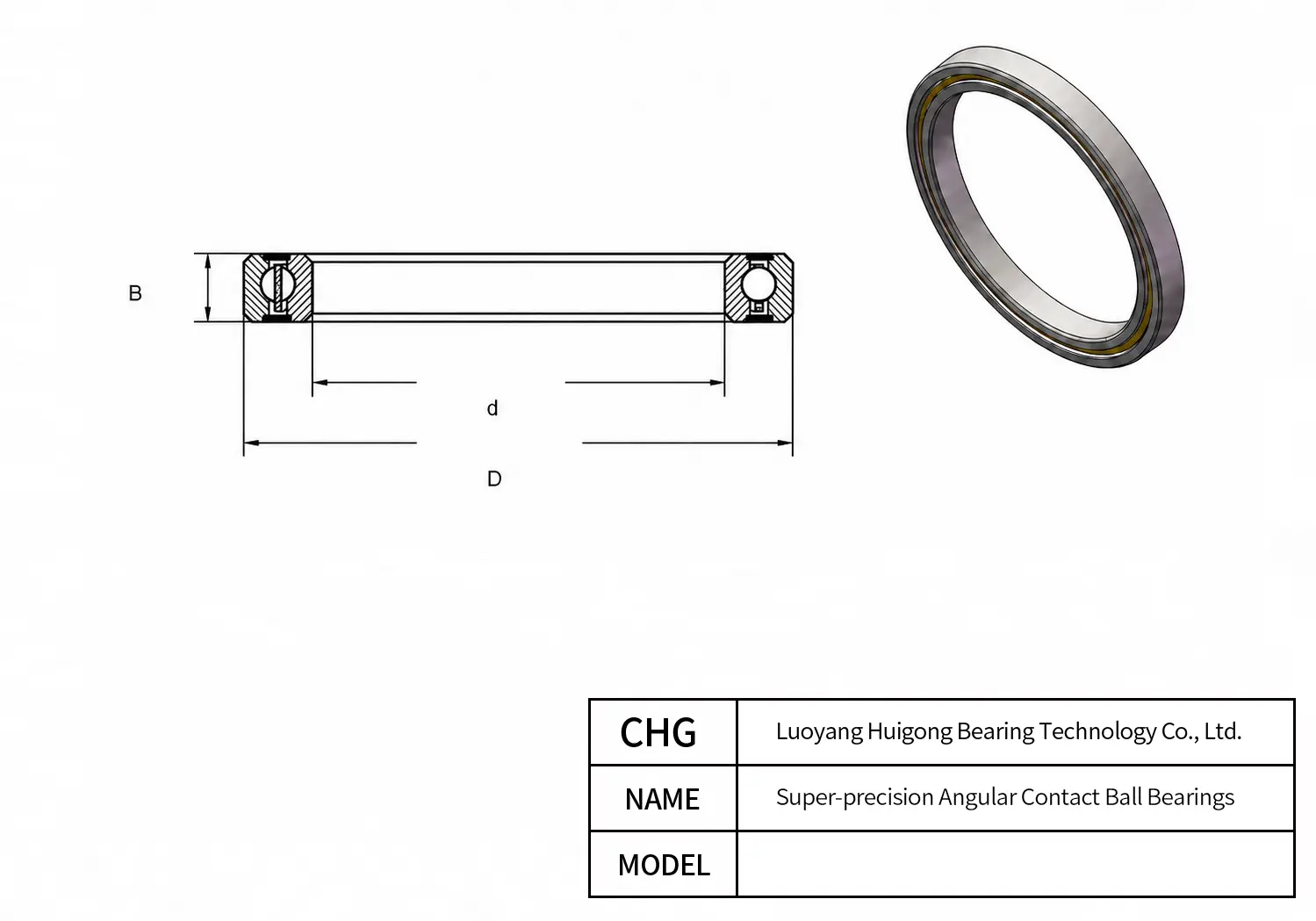

7009 ACE/HCP4ADT 75 mm 45 mm 32 mm Frequently Asked Questions about 7009 ACE/HCP4ADT Super-precision Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Beyond standard alloy steel, CHG Bearing can customize the 7009 ACE/HCP4ADT Super-precision Angular Contact Ball Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
Model 7009 ACE/HCP4ADT is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 45 mm) and steep thermal gradients between inner and outer rings.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for 7009 ACE/HCP4ADT. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
To match diverse operational dynamics, CHG Bearing supplies 7009 ACE/HCP4ADT with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
