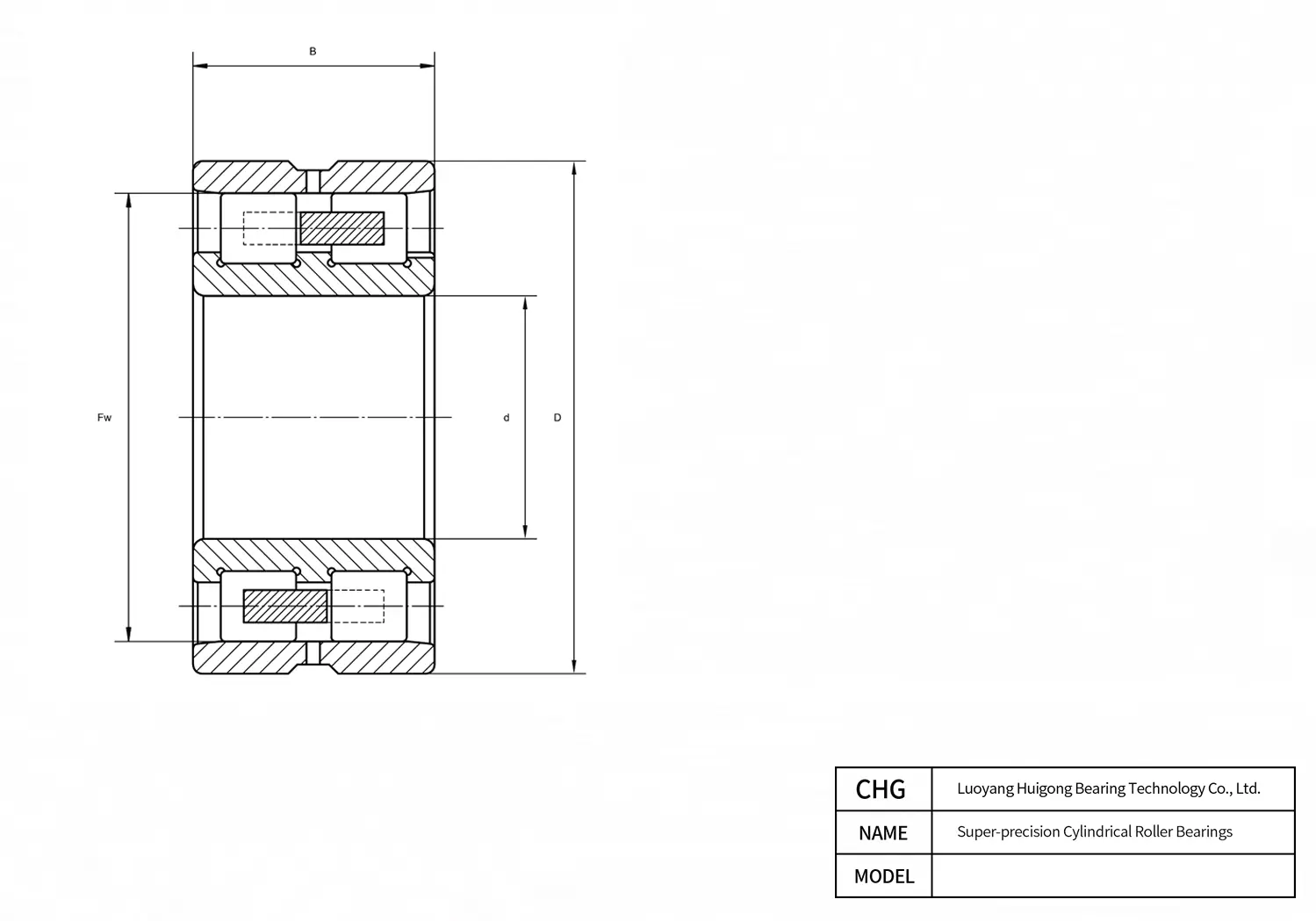

Manufactured by CHG Bearing, the N 1016 KPHA/HC5SPVE587A is a precision Super-Precision Cylindrical Roller Bearings. Key dimensional parameters include a 80 mm bore diameter, a 125 mm outer diameter, and a 22 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
N 1016 KPHA/HC5SPVE587A - Super-Precision Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | N 1016 KPHA/HC5SPVE587A |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Super-precision Cylindrical Roller Bearing |
| Design Type | Tapered Bore 1:12 |
| Structure (Drawing Reference) | Complete Bearing |
| Number of Rows | 1 |
| Ring Type | None |
| Tolerance Class | SP |
| Bearing Material | Composite Material |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Features | None |
| Number of Flanges – Outer Ring | 0 |
| Number of Ribs – Inner Ring | 2 |
| Dimensions | |
| Bore Diameter (d) | 80 mm |
| Width (B) | 22 mm |
| Outer Diameter (D) | 125 mm |
| Minimum Chamfer Dimension rmin | 1 mm |
| Inner Ring Chamfer | 0.6 mm |
| End-face Height Difference h | 3 mm |
| Inner-Ring Land Diameter (L1 / d1) | 97 mm |
| Outer Ring Raceway Diameter E | 113 mm |
| Shaft Shoulder Diameter dₐ, min. | 86.5 mm |
| Housing Shoulder Diameter Dₐ, min. | 114 mm |
| Housing Shoulder Diameter Dₐ, max. | 118.5 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 66 kN |
| Basic Static Load Rating C₀ (kN) | 86.5 kN |
| Limiting Speed – Grease (r/min) | 18000 r/min |
| Limiting Speed – Oil-air (r/min) | 20000 r/min |
| Reference Grease Quantity Gref (cm³) | 12.5 cm³ |
| Fatigue Load Limit Pᵤ (kN) | 8.65 kN |
| Axial Static Stiffness – Guideline Value (N/µm) | 1040 N/µm |
| Material | |
| Weight (kg) | 0.795 kg |
| Radial Internal Clearance | C1F mm |
| Internal Design & Weight | |
| Cage Type | Non-metallic Cage |
| Mounting Dimensions | |
| Lubrication Port Thread / Size Φ1 | 99.3 |
N 1016 KPHA/HC5SPVE587A 125 mm 80 mm 22 mm Frequently Asked Questions about N 1016 KPHA/HC5SPVE587A Super-Precision Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To match diverse operational dynamics, CHG Bearing supplies N 1016 KPHA/HC5SPVE587A with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Every production batch of CHG Bearing N 1016 KPHA/HC5SPVE587A Super-Precision Cylindrical Roller Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
Each N 1016 KPHA/HC5SPVE587A produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (80 mm bore side) ensures perfect planar contact without edge binding.
Model N 1016 KPHA/HC5SPVE587A is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 80 mm) and steep thermal gradients between inner and outer rings.
