Lightweight & Space Saving
Thin cross-sections help reduce installation space and system weight for compact equipment and precision rotary mechanisms.
PRODUCT
Product Categories

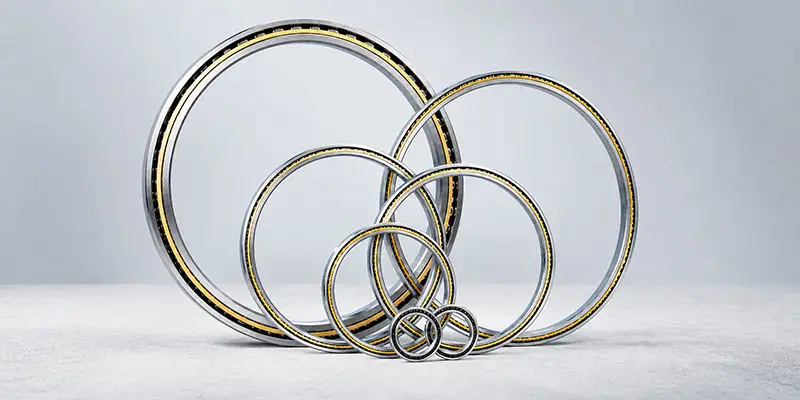

Standard Thin Section Bearings
Explore our premium selection of Standard Thin Section Bearings, engineered to deliver exceptional performance where space, weight, and design flexibility are critical. Featuring a constant cross-section across various bore sizes, these bearings reduce overall equipment size and weight without compromising load capacity or rotational precision.

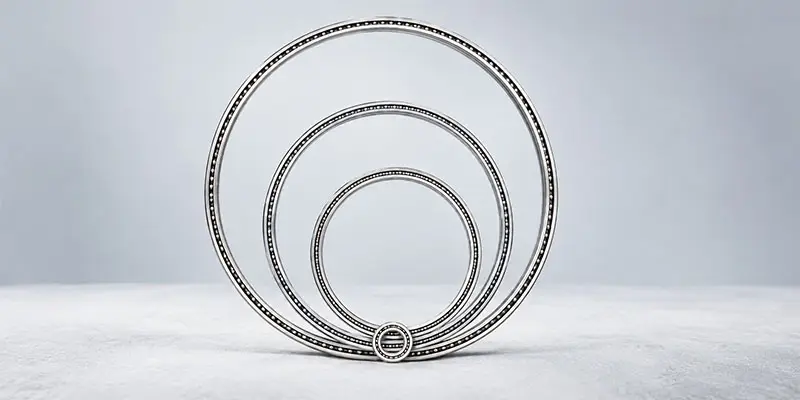

Super Thin Section Bearings
Explore our precision-engineered super thin section bearings, designed to deliver exceptional load capacity, high rotational accuracy, and smooth performance while saving critical space and reducing overall equipment weight. Ideal for robotics, aerospace, medical devices, and industrial automation, these versatile bearings offer maximum design flexibility for demanding, space-constrained applications.
ADVANTAGES
Why Choose CHG Thin Section Bearings
Applications
Applications of CHG Thin Section Bearings
Thin Section Bearings for Robotics
For robot joints, rotary axes and end-effectors requiring compact size, low weight and precise .
Thin Section Bearings for Automation Equipment
For indexing units, turntables and automated mechanisms requiring space-saving installation and stable rotation.
Thin Section Bearings for Medical Equipment
For medical imaging, surgical robots and diagnostic systems requiring smooth, quiet and accurate rotary motion.
Thin Section Bearings for Optical Equipment
For optical platforms, gimbals and electro-optical systems requiring low torque and stable positioning.
Thin Section Bearings for Precision Rotary Mechanisms
For compact rotary modules requiring accurate positioning, repeatability and controlled running torque.
Thin Section Bearings for Aerospace Equipment
Lightweight bearing solutions for antenna drives, pointing mechanisms and space-constrained aerospace systems.

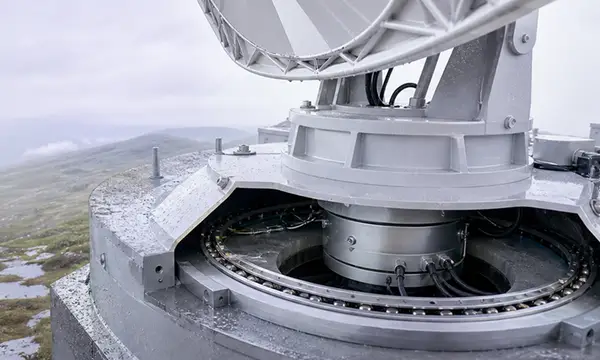

Thin Section Bearings for Radar Turntables
For radar rotary platforms requiring smooth rotation, precise positioning and reliable operation in a compact envelope.

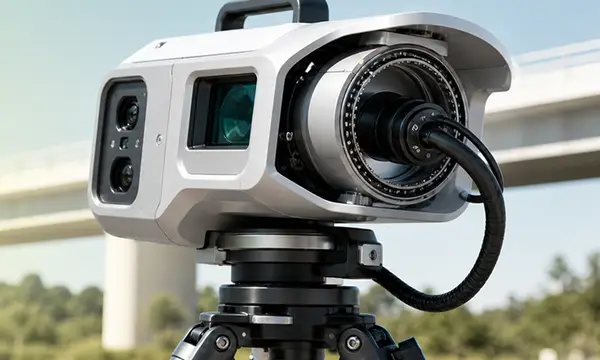

Thin Section Bearings for Lightweight Equipment
For equipment where reduced component mass, compact installation and dependable rotary performance are critical.
Customization
Custom Thin Section Bearing Solutions
Custom by Bearing Number
Send the existing bearing number or original part number. CHG will review the bearing type, dimensions, structure and replacement requirements.
Custom by Drawing or Dimensions
Send a 2D drawing, 3D model or key dimensions including ID, OD and width. CHG will evaluate design and manufacturing feasibility.
Custom by Application
Send load direction, load value, speed, accuracy, temperature, lubrication and installation space. CHG will help select a suitable bearing structure.
Custom Configuration
Material, seals, lubrication, clearance, preload, flange design, mounting holes and precision grade can be reviewed according to application needs.
FAQs
Thin Section Bearing FAQs
What types of thin section ball bearings does CHG manufacture?
CHG manufactures deep groove, angular contact, four-point contact, super duplex angular contact and flanged thin section ball bearings.
Can CHG provide replacements for KAYDON or ADR bearings?
Yes. Send the original part number, drawing or measured dimensions. CHG will review interchangeability and application requirements before recommending a solution.
How do I choose the right thin section bearing type?
Deep groove bearings are suitable mainly for radial loads; angular contact and super duplex designs suit combined loads and higher rigidity; four-point contact bearings support radial, axial and moment loads; flanged designs simplify mounting.
What sizes and precision grades are available?
CHG offers thin section ball bearings in 3-20 inch sizes, with precision grades up to P4. Special dimensions can be reviewed according to drawings.
Can thin section bearings be customized?
Yes. Materials, seals, lubrication, clearance, preload, flange structures, mounting holes and precision grades can be customized after technical review.
What information is needed for a quotation?
Please send the part number or ID / OD / width, bearing type, load, speed, accuracy, working temperature, quantity and drawing if available.
CONTACT US
Need Thin Section Bearings for Your Application?
Send your part number, drawing, installation dimensions or working conditions. CHG will help review the bearing type, replacement feasibility and quotation requirements.
- Five product types aligned with CHG's product catalog
- Lightweight, low-friction and high-precision bearing solutions
- Precision up to P4 and application-specific customization
- We typically respond within 24 hours on working days
