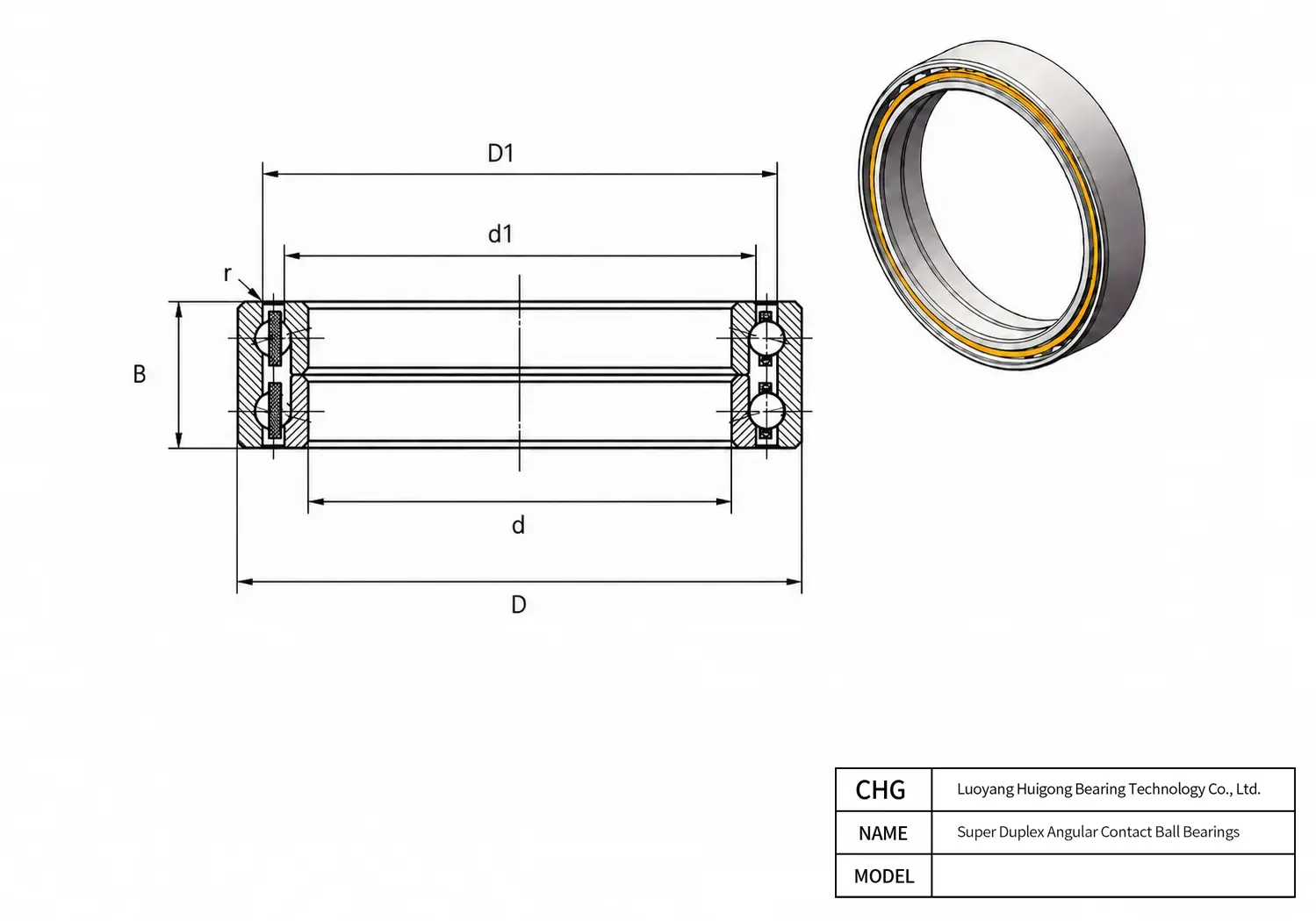

Manufactured by CHG Bearing, the HWAA896HP4 is a precision Super Duplex Angular Contact Ball Bearings. Key dimensional parameters include a 152.4 mm bore diameter, a 165.1 mm outer diameter, and a 12.7 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HWAA896HP4 - Super Duplex Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HWAA896HP4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Super Duplex Angular Contact Ball Bearing |
| Series | AA8 |
| Seal Type | Open / Single-Sided Sealed / Double-Sided Sealed |
| Load Direction | Combined Radial and Axial |
| Row Configuration | Double Row |
| Dimensions | |
| Bore Diameter (d) | 152.4 mm |
| Width (B) | 12.7 mm |
| Outer Diameter (D) | 165.1 mm |
| Outside Diameter Tolerance | -0.012-0 mm |
| Width Tolerance | -0.5-0 mm |
| Inner-Ring Land Diameter (L1 / d1) | 156.7688 mm |
| Outer-Ring Land Diameter (L2 / D1) | 160.72 mm |
| Counterbore Diameter L3 | N/A mm |
| Performance | |
| Basic Static Radial Load Rating C0r (N) | 25100 N |
| Basic Dynamic Radial Load Rating Cr (N) | 8290 N |
| Basic Static Axial Load Rating C0a (N) | 22300 N |
| Basic Dynamic Axial Load Rating Ca (N) | N/A N |
| Material | |
| Mass (kg) | 0.22Kg kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / Polyimide / PEEK / Phenolic Resin / Phenolic Resin Fabric Laminate |
| Ball Material | Ceramic / Stainless Steel / Bearing Steel |
| Operating Temperature Range (°C) | -50 to +100 °C °C |
| Precision Class | P4 |
| Radial Internal Clearance | N/A mm |
HWAA896HP4 165.1 mm 152.4 mm 12.7 mm 160.72 mm 156.7688 mm Frequently Asked Questions about HWAA896HP4 Super Duplex Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
For international ocean and air freight, CHG Bearing packs HWAA896HP4 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for HWAA896HP4, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
To match diverse operational dynamics, CHG Bearing supplies HWAA896HP4 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Absolutely. The CHG Bearing HWAA896HP4 Super Duplex Angular Contact Ball Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF HWAA896HP4, FAG HWAA896HP4, NSK HWAA896HP4. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
