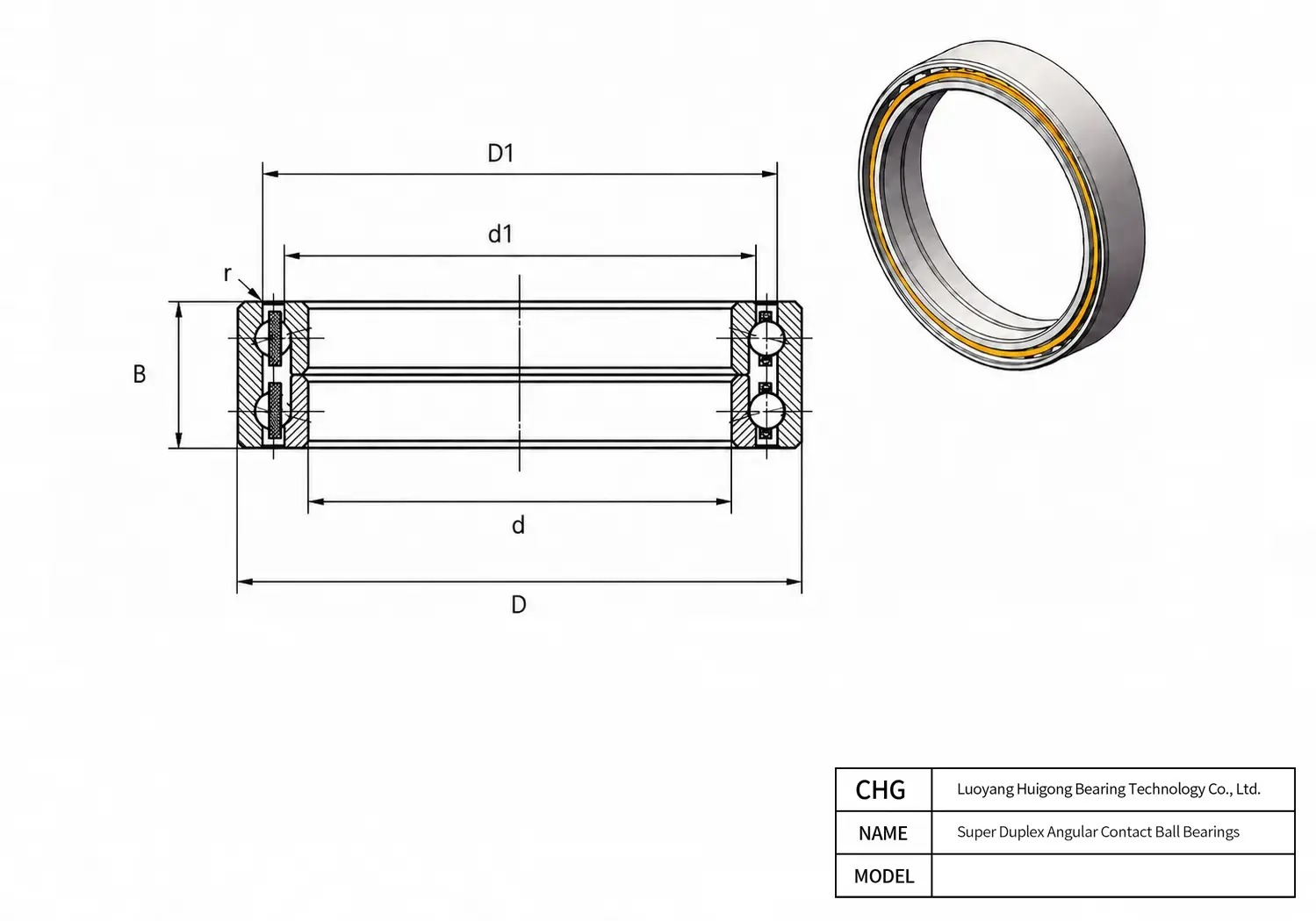

Manufactured by CHG Bearing, the HWAD1048HP4 is a precision Super Duplex Angular Contact Ball Bearings. Key dimensional parameters include a 76.2 mm bore diameter, a 92.075 mm outer diameter, and a 12.7 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HWAD1048HP4 - Super Duplex Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HWAD1048HP4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Super Duplex Angular Contact Ball Bearing |
| Series | AD10 |
| Seal Type | Open / Single-Sided Sealed / Double-Sided Sealed |
| Load Direction | Combined Radial and Axial |
| Row Configuration | Double Row |
| Dimensions | |
| Bore Diameter (d) | 76.2 mm |
| Width (B) | 12.7 mm |
| Outer Diameter (D) | 92.075 mm |
| Outside Diameter Tolerance | -0.01-0 mm |
| Width Tolerance | -0.38-0 mm |
| Inner-Ring Land Diameter (L1 / d1) | 82.15884 mm |
| Outer-Ring Land Diameter (L2 / D1) | 86.12124 mm |
| Counterbore Diameter L3 | N/A mm |
| Performance | |
| Basic Static Radial Load Rating C0r (N) | 13700 N |
| Basic Dynamic Radial Load Rating Cr (N) | 6670 N |
| Basic Static Axial Load Rating C0a (N) | 11800 N |
| Basic Dynamic Axial Load Rating Ca (N) | N/A N |
| Material | |
| Mass (kg) | 0.157Kg kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / Polyimide / PEEK / Phenolic Resin / Phenolic Resin Fabric Laminate |
| Ball Material | Ceramic / Stainless Steel / Bearing Steel |
| Operating Temperature Range (°C) | -50 to +100 °C °C |
| Precision Class | P4 |
| Radial Internal Clearance | N/A mm |
HWAD1048HP4 92.075 mm 76.2 mm 12.7 mm 86.12124 mm 82.15884 mm Frequently Asked Questions about HWAD1048HP4 Super Duplex Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for HWAD1048HP4, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
Absolutely. The CHG Bearing HWAD1048HP4 Super Duplex Angular Contact Ball Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF HWAD1048HP4, FAG HWAD1048HP4, NSK HWAD1048HP4. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Yes, 100% of HWAD1048HP4 Super Duplex Angular Contact Ball Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
To match diverse operational dynamics, CHG Bearing supplies HWAD1048HP4 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
