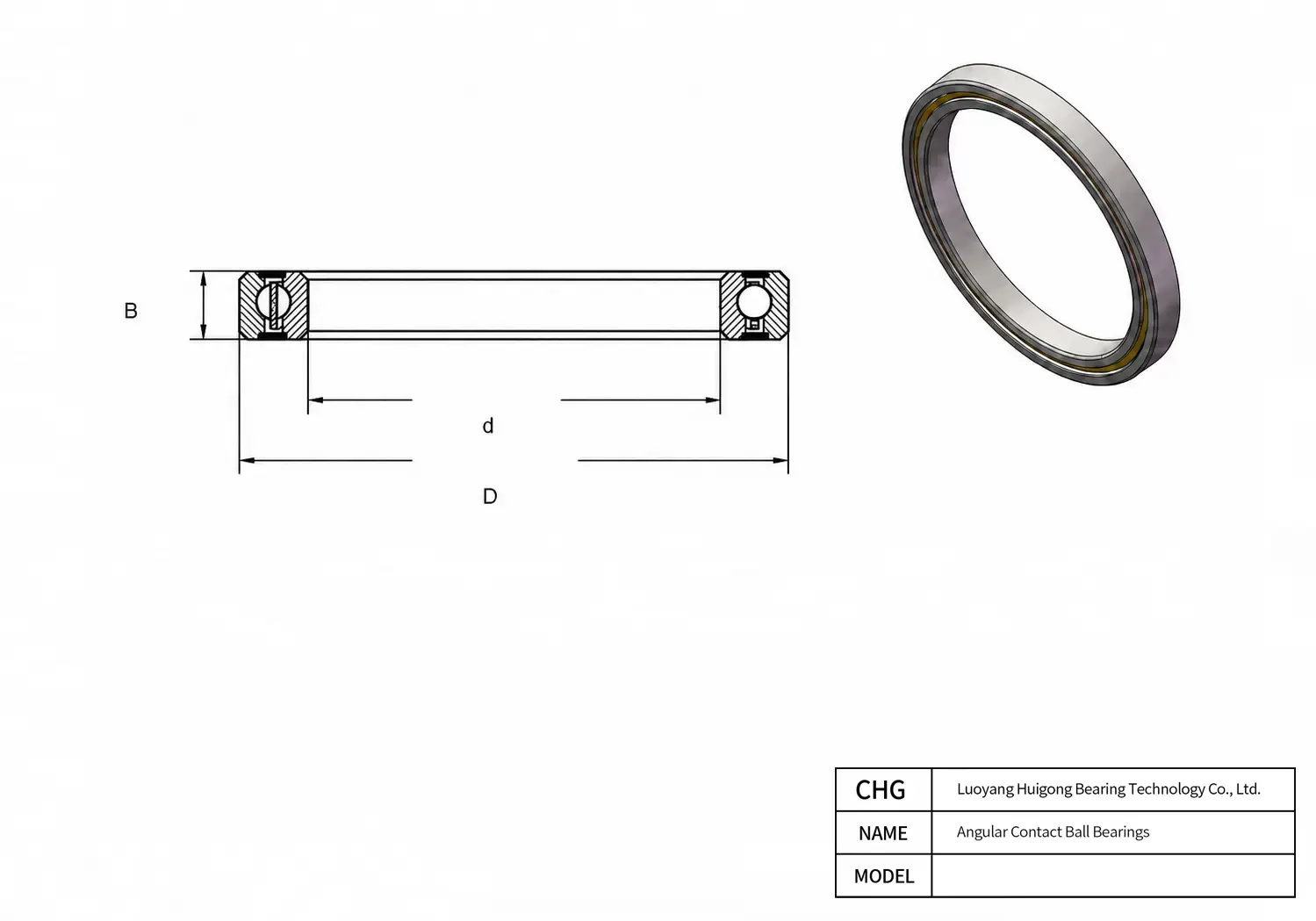

Manufactured by CHG Bearing, the HKG065AP0 is a precision Thin Section Angular Contact Ball Bearings. Key dimensional parameters include a 165.1 mm bore diameter, a 215.9 mm outer diameter, and a 25.4 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HKG065AP0 - Thin Section Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HKG065AP0 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Angular Contact Ball Bearing |
| Series | KG |
| Seal Type | Open |
| Load Direction | Combined Radial and Unidirectional Axial |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 165.1 mm |
| Width (B) | 25.4 mm |
| Outer Diameter (D) | 215.9 mm |
| Bore Diameter Tolerance | -0.025-0 mm |
| Outside Diameter Tolerance | -0.025-0 mm |
| Width Tolerance | -0.127-0 mm |
| Inner-Ring Land Diameter (L1 / d1) | 183.9468 mm |
| Outer-Ring Land Diameter (L2 / D1) | 197.0532 mm |
| Counterbore Diameter L3 | 202.8698 mm |
| Performance | |
| Basic Static Radial Load Rating C0r (N) | 63210 N |
| Basic Dynamic Radial Load Rating Cr (N) | 34500 N |
| Basic Static Axial Load Rating C0a (N) | 182420 N |
| Basic Dynamic Axial Load Rating Ca (N) | 79430 N |
| Material | |
| Mass (kg) | 2.45 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C °C |
| Precision Class | P0 |
| Radial Internal Clearance | N/A mm |
HKG065AP0 215.9 mm 165.1 mm 25.4 mm Frequently Asked Questions about HKG065AP0 Thin Section Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To extend the trouble-free lifespan of CHG Bearing HKG065AP0, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
In its sealed configuration (Open), CHG Bearing pre-charges HKG065AP0 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
Standard batches of CHG Bearing HKG065AP0 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
Yes, 100% of HKG065AP0 Thin Section Angular Contact Ball Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
