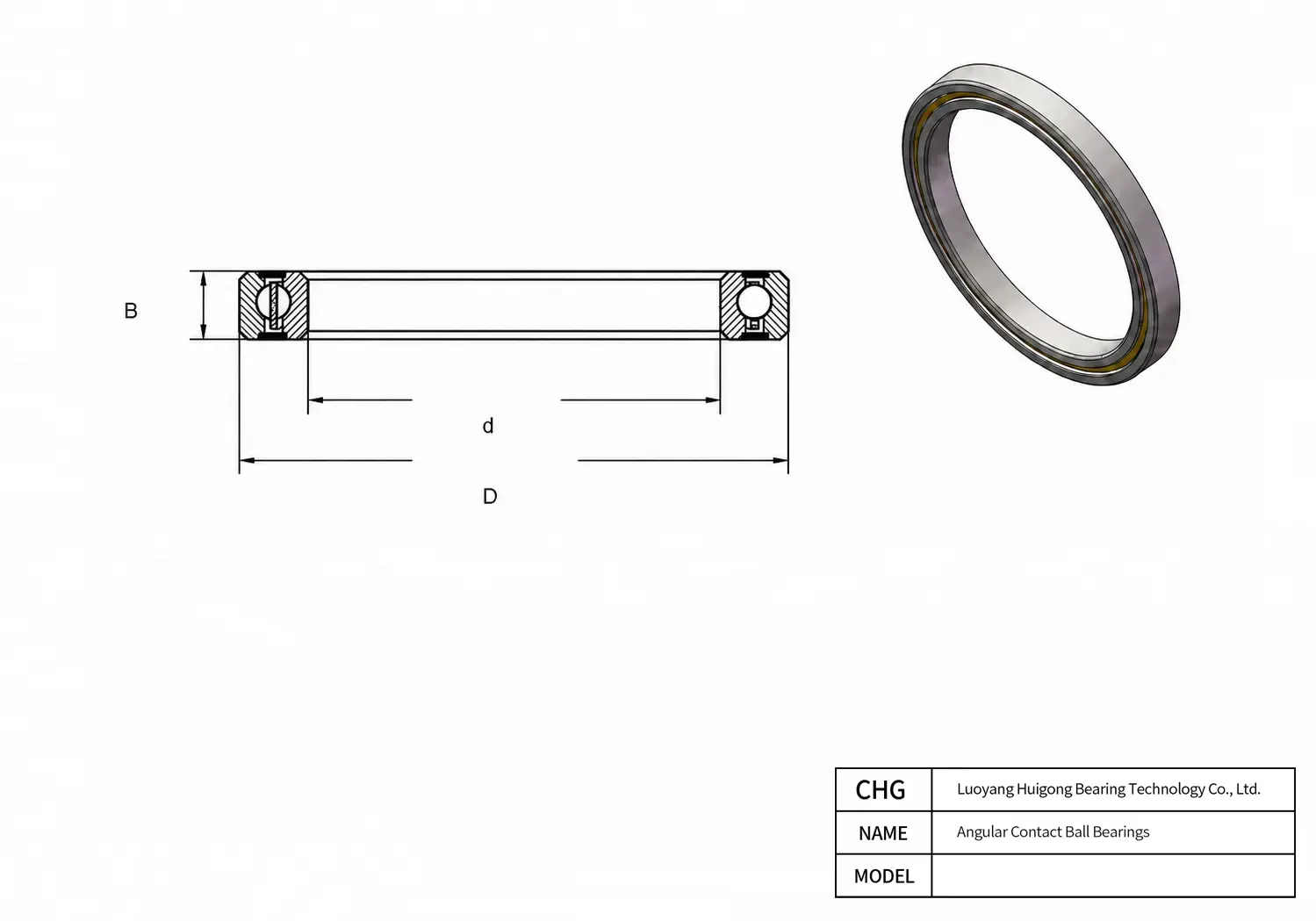

Manufactured by CHG Bearing, the HKG110AP4 is a precision Thin Section Angular Contact Ball Bearings. Key dimensional parameters include a 279.4 mm bore diameter, a 330.2 mm outer diameter, and a 25.4 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HKG110AP4 - Thin Section Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HKG110AP4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Angular Contact Ball Bearing |
| Series | KG |
| Seal Type | Open |
| Load Direction | Combined Radial and Unidirectional Axial |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 279.4 mm |
| Width (B) | 25.4 mm |
| Outer Diameter (D) | 330.2 mm |
| Bore Diameter Tolerance | -0.0127-0 mm |
| Outside Diameter Tolerance | -0.0127-0 mm |
| Width Tolerance | -0.127-0 mm |
| Inner-Ring Land Diameter (L1 / d1) | 298.2468 mm |
| Outer-Ring Land Diameter (L2 / D1) | 311.3532 mm |
| Counterbore Diameter L3 | 317.0174 mm |
| Performance | |
| Basic Static Radial Load Rating C0r (N) | 101120 N |
| Basic Dynamic Radial Load Rating Cr (N) | 44570 N |
| Basic Static Axial Load Rating C0a (N) | 316220 N |
| Basic Dynamic Axial Load Rating Ca (N) | 108640 N |
| Material | |
| Mass (kg) | 3.94 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C °C |
| Precision Class | P4 |
| Radial Internal Clearance | N/A mm |
HKG110AP4 330.2 mm 279.4 mm 25.4 mm Frequently Asked Questions about HKG110AP4 Thin Section Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
For international ocean and air freight, CHG Bearing packs HKG110AP4 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
To match diverse operational dynamics, CHG Bearing supplies HKG110AP4 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Sourcing HKG110AP4 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Thin Section Angular Contact Ball Bearings.
Model HKG110AP4 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 279.4 mm) and steep thermal gradients between inner and outer rings.
